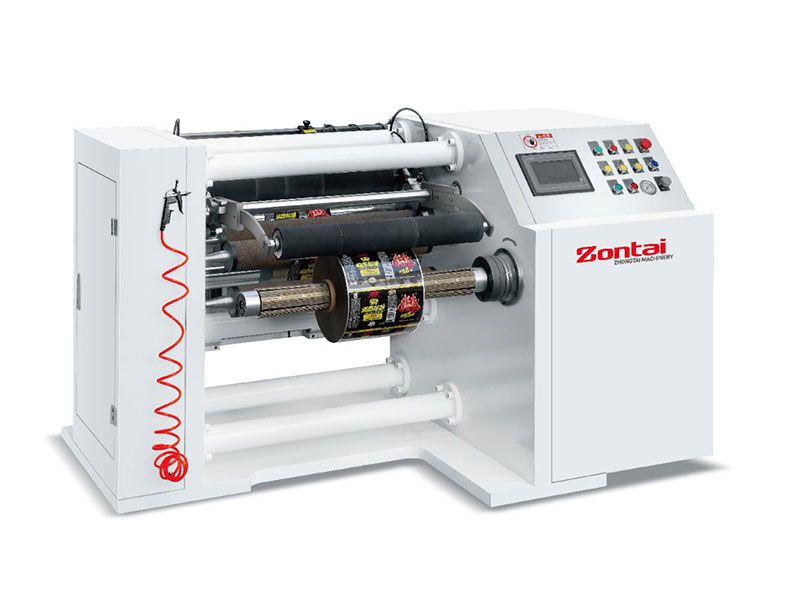

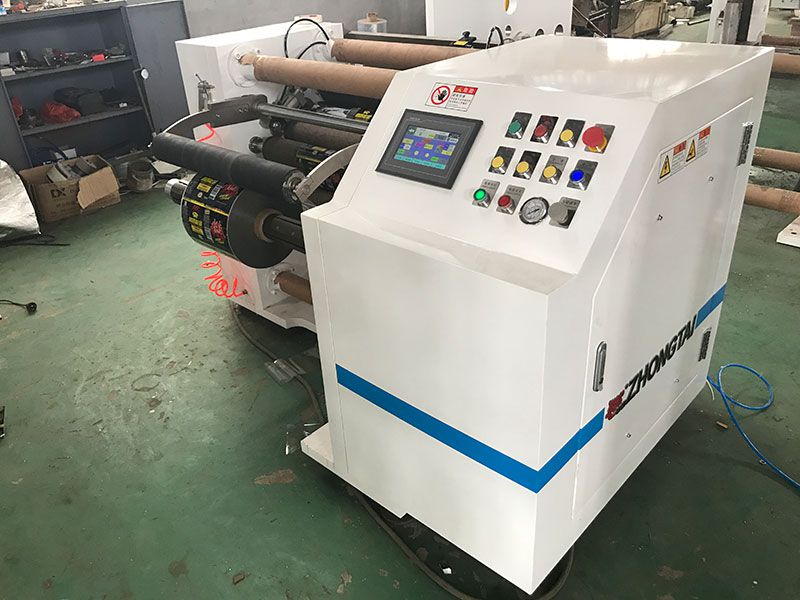

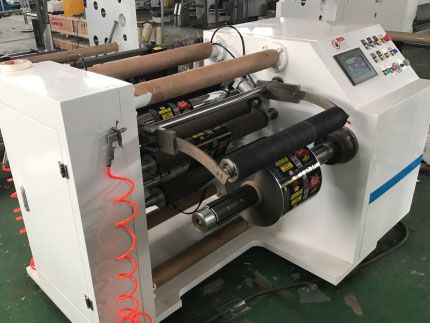

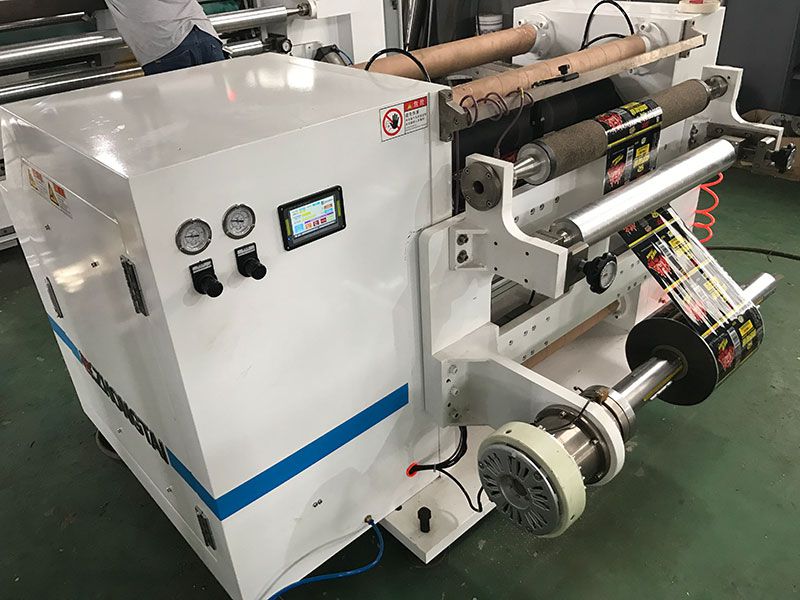

Rewinder Machine, ZTM-R

Suitable for rewinding paper rolls and film rolls

Rewinder Machine, ZTM-R
Video

Rewinder Machine, ZTM-R

Suitable for rewinding paper rolls and film rolls

The ZTM-R rewinder machine is especially used for rewinding film rolls or paper rolls after the slitting operation, and also printed substrates after the printing process, with a maximum rewinding speed of 300 meters per minute. This rewinder machine has a web guide system to solve all issues of web alignment.

Inquiry
Specifications
Model ZTM-R 600
Web width 600mm
Max. unwind diameter Ø600mm
Max. rewind diameter Ø600mm
Paper core diameter 3"
Max. rewinding speed 0-300m/min
Dimensions 1700mm×1800mm×1600mm
Details
  • Machine body is constructed with cast iron and steel structure Machine body is constructed with cast iron and steel structure

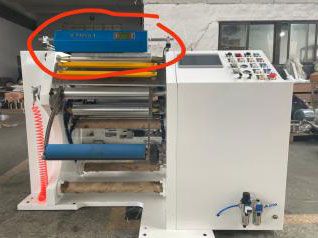

  • BIANFU web guide controller BIANFU web guide controller

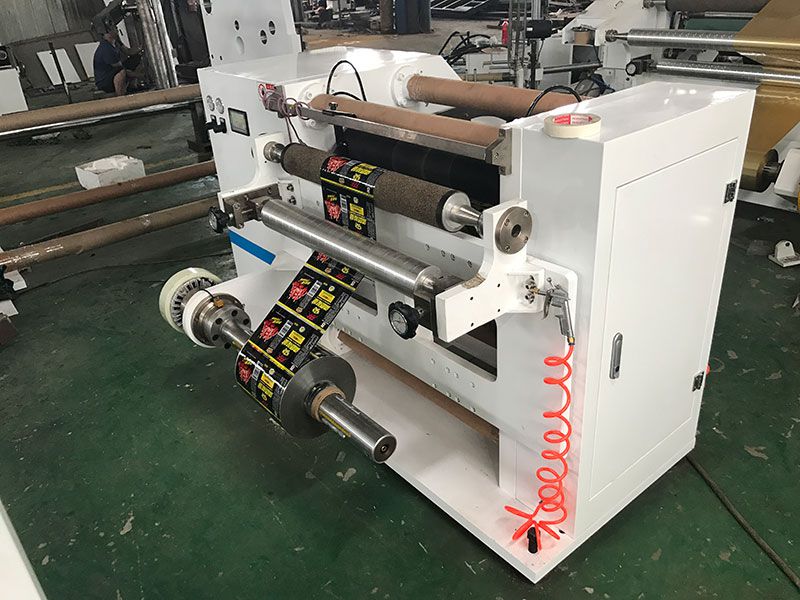

  • Unwind station with removable bracket and ball slide Unwind station with removable bracket and ball slide

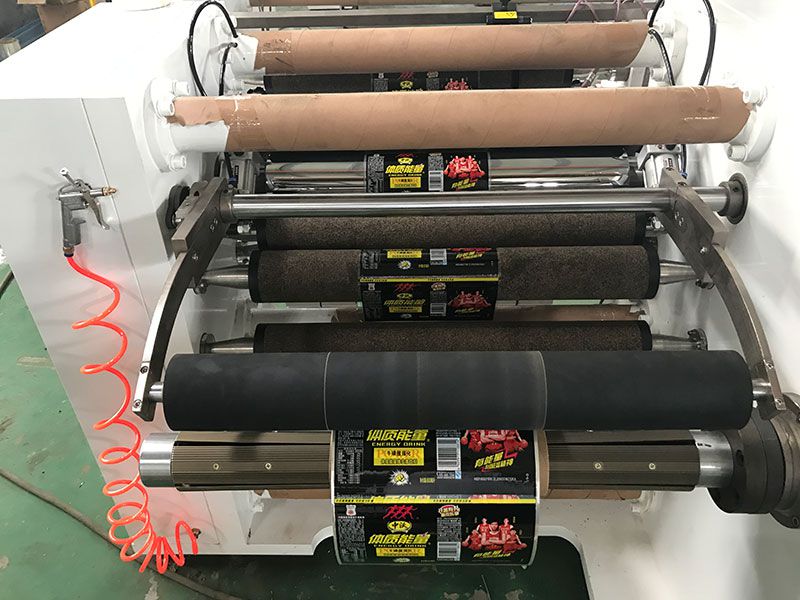

  • Rewind station with 3-inch air shaft and 1 side clamping mechanism Rewind station with 3-inch air shaft and 1 side clamping mechanism

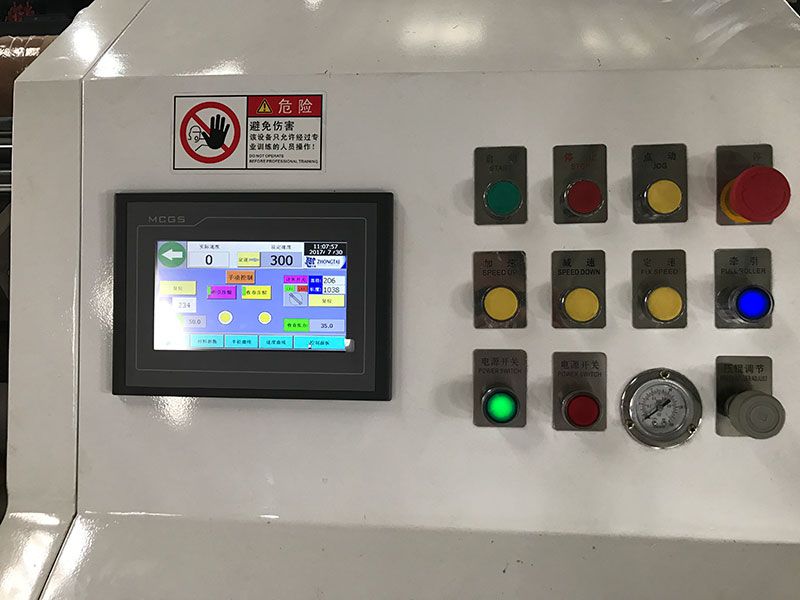

  • PLC and touch screen PLC and touch screen
  • Strobe light for checking printing quality (optional) Strobe light for checking printing quality (optional)
  • Rewind tension control with a servo motor Rewind tension control with a servo motor
  • Splice table (optional) Splice table (optional)
Features
  • This rewinding machine is generally used to rewind paper or film rolls after slitting, as well as printed substrate after printing.
  • The effective width ranges from 300mm to 600mm.
  • EPC web guide system is equipped.
  • Magnetic brake is adopted for unwinding.
  • Web traction and rewind control is supported by using motor.
  • PLC and touch screen are from well-known brands.
Optional
  • Unwind station magnetic brake can be replaced with motor and inverter control (for reverse function);
  • Trim reject fan is utilized for effective processing of edge trim waste;
  • Strobe light for checking printing quality;
