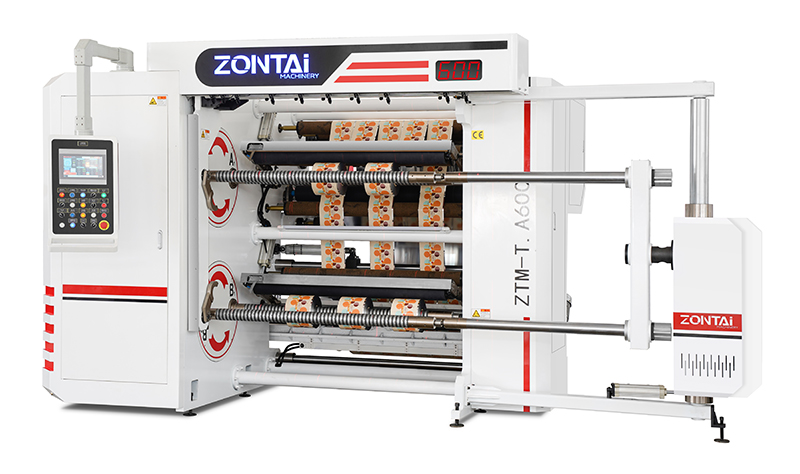

Unibody Type High Speed Turret Slitter Rewinder, ZTM-T

This integrated slitting machine is specifically designed to meet the needs of businesses prioritizing high output and time efficiency. It is ideal for processors seeking fully automated solutions while ensuring minimal roll tension and scratch-free roll surfaces. With its advanced four-shaft design, this equipment optimizes cycle times, achieving exceptional production capacity and delivering superior-quality slit rolls.

The machine is compatible with a wide range of materials, including cellophane, PET, PE, PVC, BOPP, BOPA, laminates, CPP, and labels, making it a versatile solution for diverse applications.

Inquiry
Specifications
Model ZTM-T1300 ZTM-T1600
Max. unwind width 1300mm 1600mm
Unwind paper core diameter 3”, 6” 3”, 6”
Max. unwind diameter Ø1000mm Ø1000mm
Max. rewind diameter Ø600mm Ø600mm
Mechanical speed 8-600m/min 8-600m/min
Rewind paper tube diameter 3”, 6’’(optional) 3”, 6’’(optional)
Min. rewind width 50mm 50mm
Tension control PLC PLC
Tension setup range 3-20kg 3-20kg
Guiding accuracy ±0.1mm ±0.1mm
Servo motor Germany brand Germany brand
Details

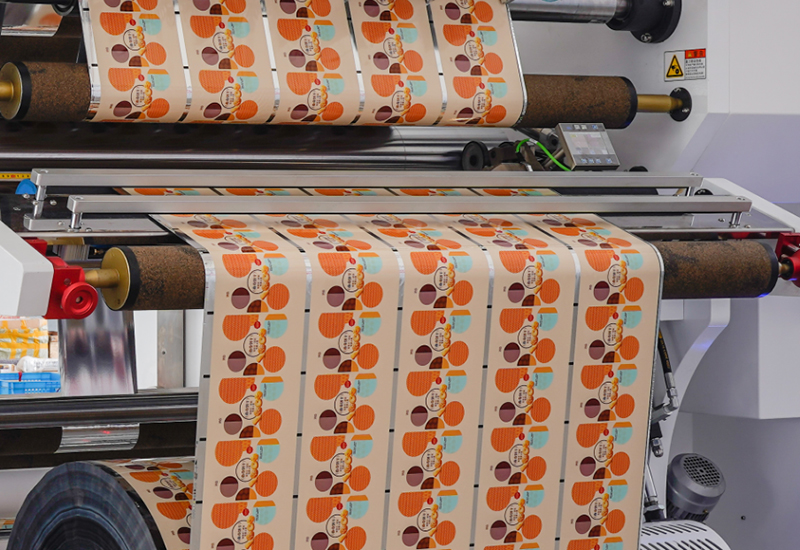

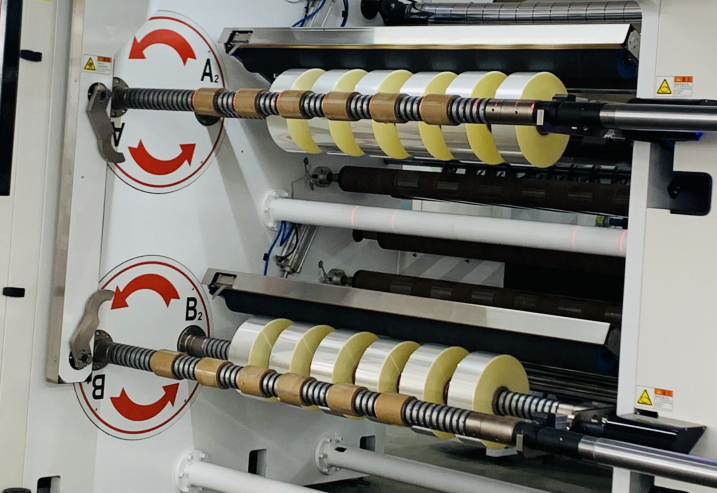

  • Unibody Type High Speed Turret Slitter Rewinder, ZTM-T Turret rewinder (4 axes and changeover system)

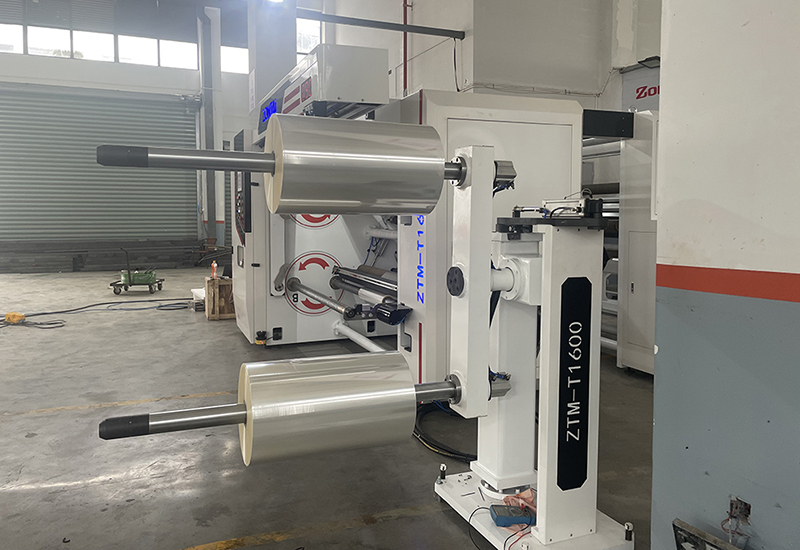

  • Unibody Type High Speed Turret Slitter Rewinder, ZTM-T Unload rack
  • Unibody Type High Speed Turret Slitter Rewinder, ZTM-T Splice table (pneumatic control)

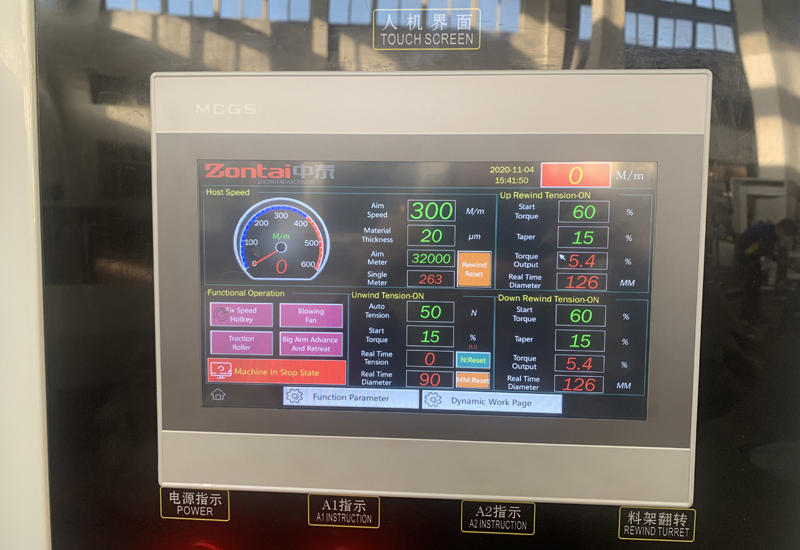

  • Unibody Type High Speed Turret Slitter Rewinder, ZTM-T Touch screen control panel

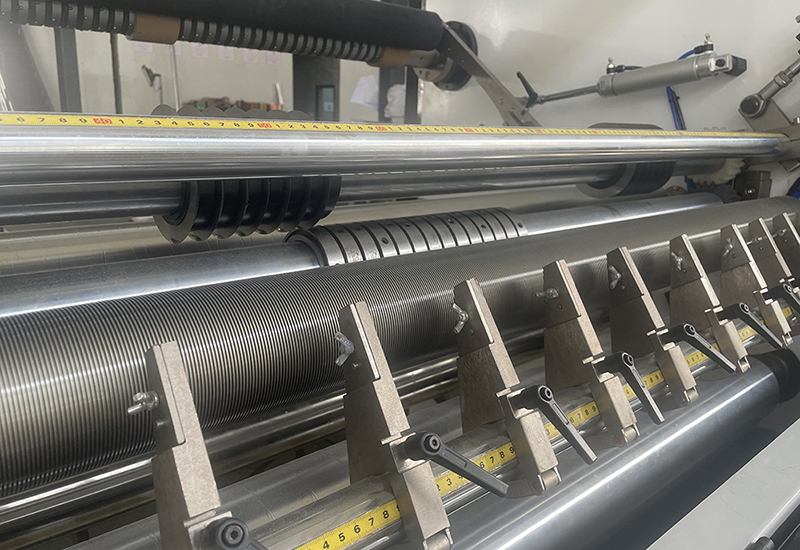

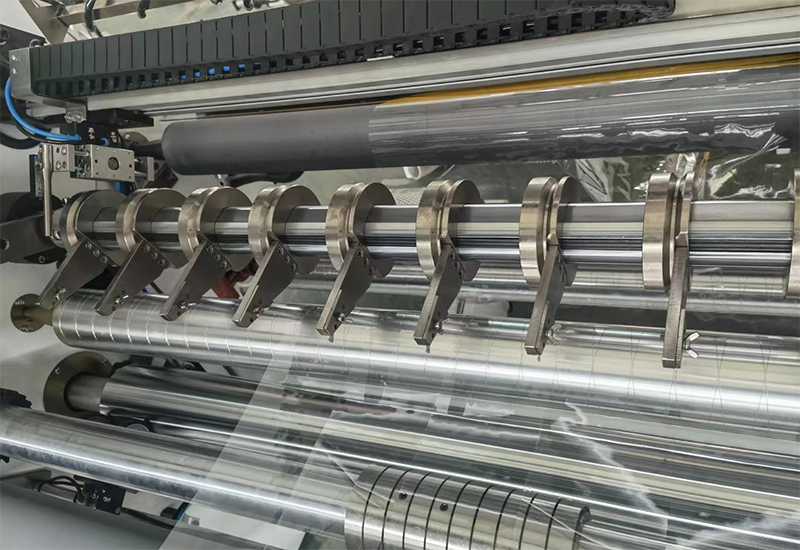

  • Unibody Type High Speed Turret Slitter Rewinder, ZTM-T Razor blades for slitting (10pcs as standard)

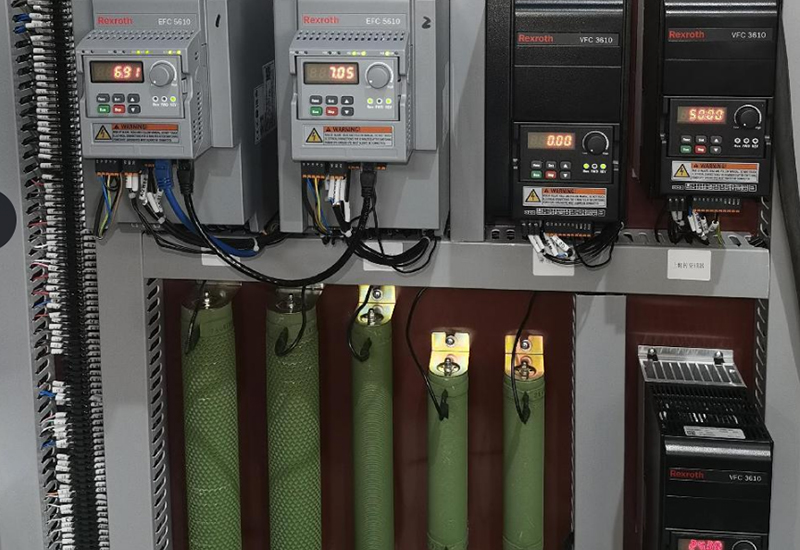

  • Unibody Type High Speed Turret Slitter Rewinder, ZTM-T Servo motor drive from Germany Rexroth Brand

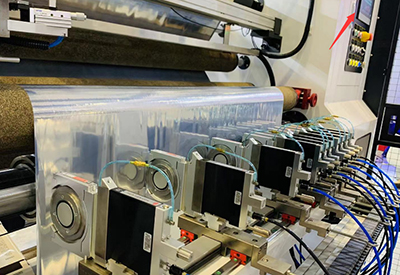

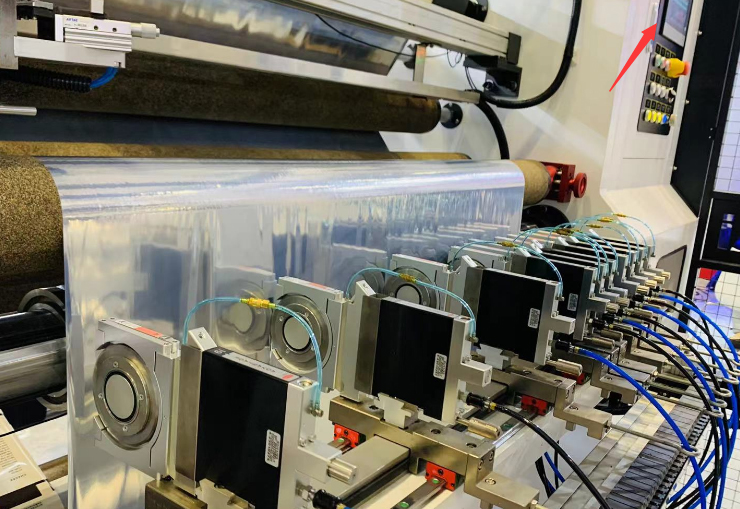

  • Unibody Type High Speed Turret Slitter Rewinder, ZTM-T Automatic moving system for pnumatic knives (optional device)

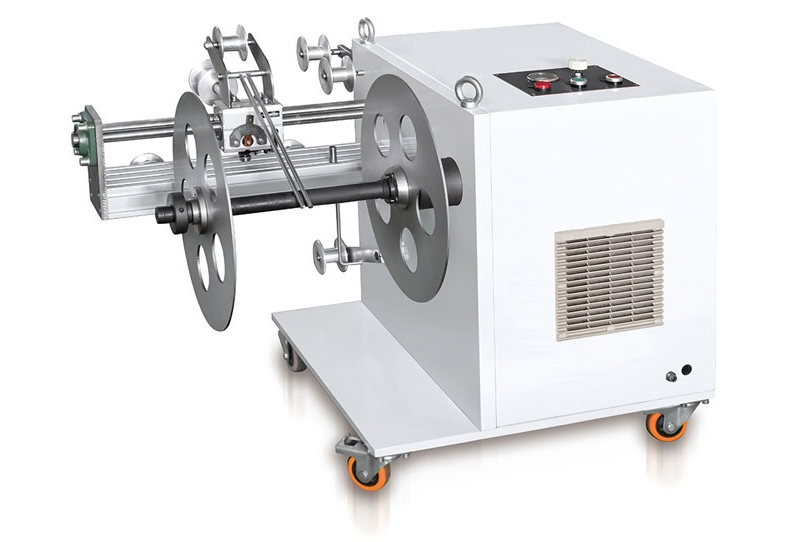

  • Unibody Type High Speed Turret Slitter Rewinder, ZTM-T Edge trimming rewinder for film (optional device)

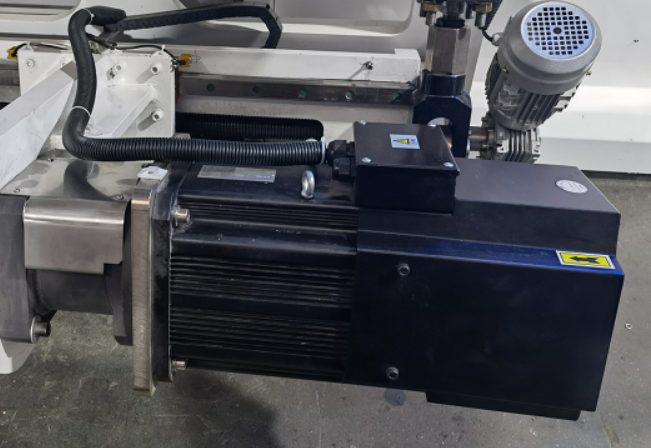

  • Unibody Type High Speed Turret Slitter Rewinder, ZTM-T Unwind magnetic powder brake can be changed to motor and inverter (Danma motor and Bosch Rexroth inverter) (optional device)

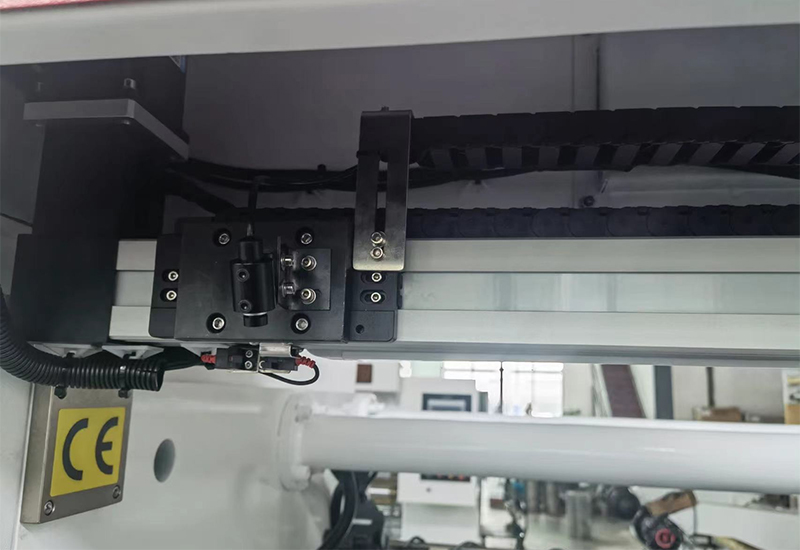

  • Unibody Type High Speed Turret Slitter Rewinder, ZTM-T Automatic moving system for razor knives (optional device)

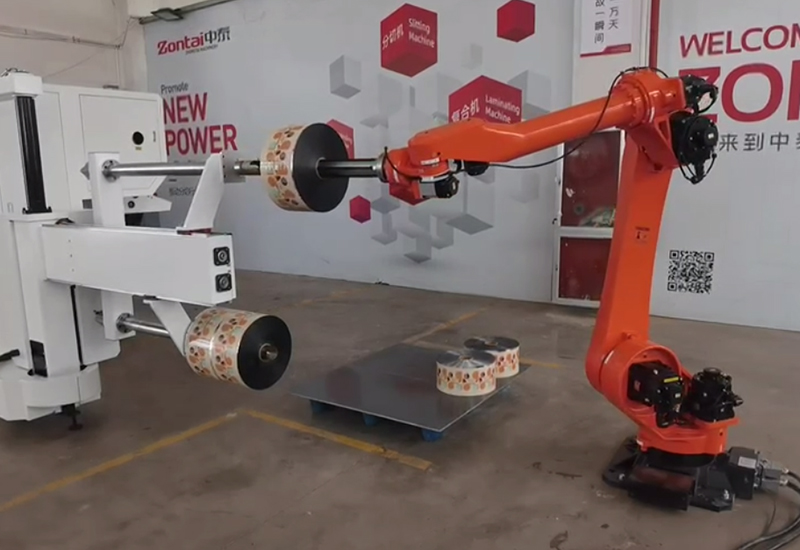

  • Unibody Type High Speed Turret Slitter Rewinder, ZTM-T Automatic robot arm (used to move the finished roll from machine to a pallet) (optional device)
  • Unibody Type High Speed Turret Slitter Rewinder, ZTM-T Automatic laser positioning system for aligning the position of the paper tube (optional device)
Configurations
  • Motors with gear box control unwind arms left and right moving to fit different materials’ width.
  • Automatically loading by hydraulic cylinder from the Japanese brand YASKAWA.
  • Includes 3-inch and 6-inch shaft-less chucks for flexible operation.
  • Splicing table facilitates efficient material changes during unwinding.
  • Equipped with a servo motor inverter system featuring Germany Bosch Rexroth technology for precision.
  • Four sets of rewind pneumatic friction-shafts allow automatic changeover.
  • Automatic cutting system for efficiently processing rewound rolls.
  • Rewinding press roller is automatically controlled for consistent output.
  • Finished roll automatically pushed out to enhance productivity.
  • Rewinding shafts include a protection system during reel changes for safety.
Optional Features
  • Automatic paper core moving system improves core handling efficiency.
  • Automatic tape paste system ensures precise tape application.
