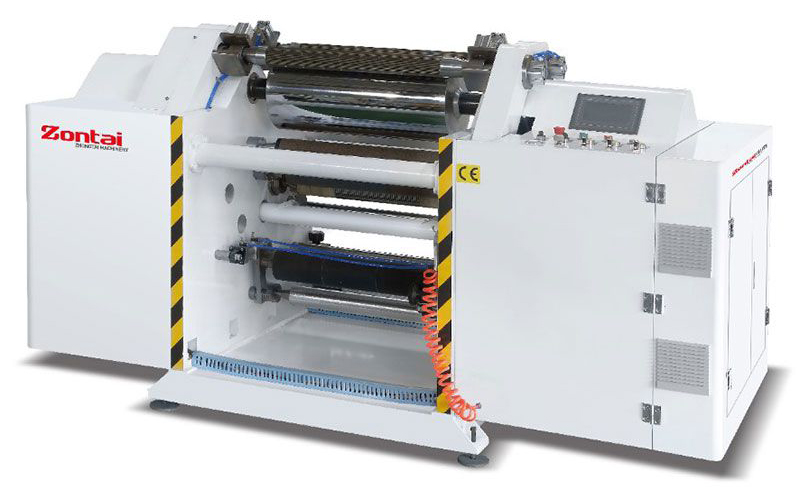

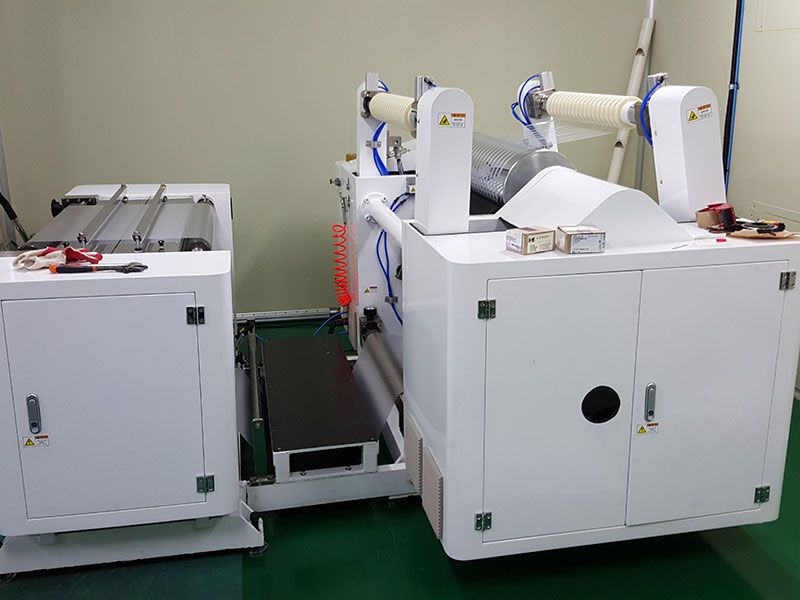

Surface Slitter Rewinder, ZTS-A

Suitable for small size rolls of film, laminates and paper

Surface Slitter Rewinder, ZTS-A
Video

Surface Slitter Rewinder, ZTS-A

Suitable for small size rolls of film, laminates and paper

The ZTS-A surface slitter rewinder is ideal for processing various materials with small size, such as PVC, PET, BOPP, laminates and paper rolls. The maximum slitting speed reaches 200 meters per minute.

Inquiry
Specifications
Model ZTS-A
Web width 600-1300 mm
Slitting speed 0--200m/min
Max. unwind diameter 600-1000mm
Max. rewind diameter 450mm
Min. slitting width 10mm
Total power 11kW
Work voltage 3-phase 4-wire AC380V
Overall dimensions 1400×1600×1100mm
Details

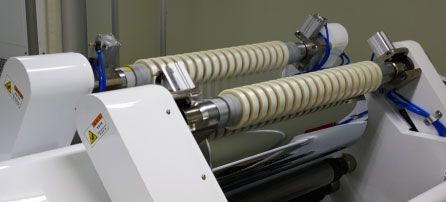

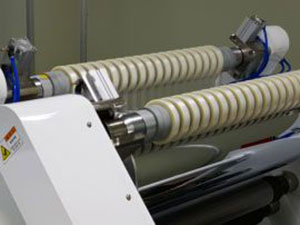

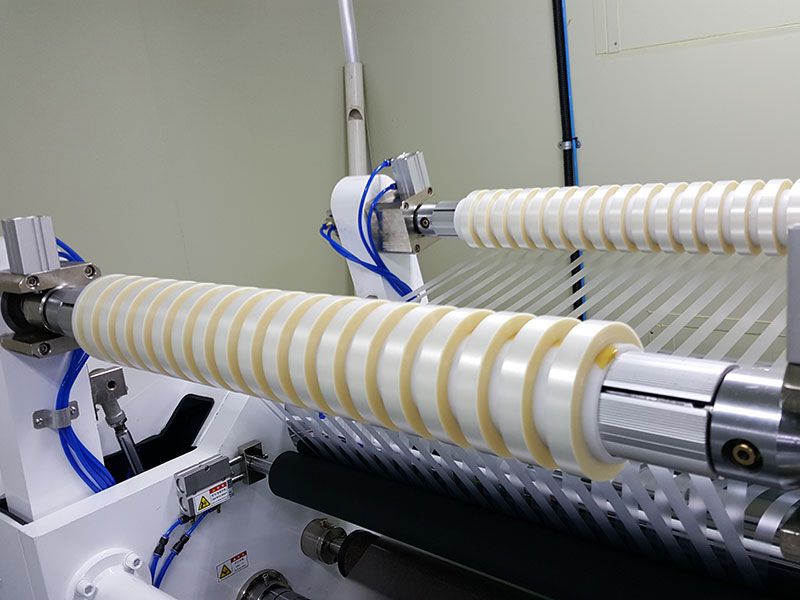

  • Two rewind shafts with excellent tension control Two rewind shafts with excellent tension control
  • Automatic edge position control with photoelectric sensor Automatic edge position control with photoelectric sensor

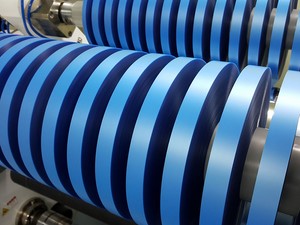

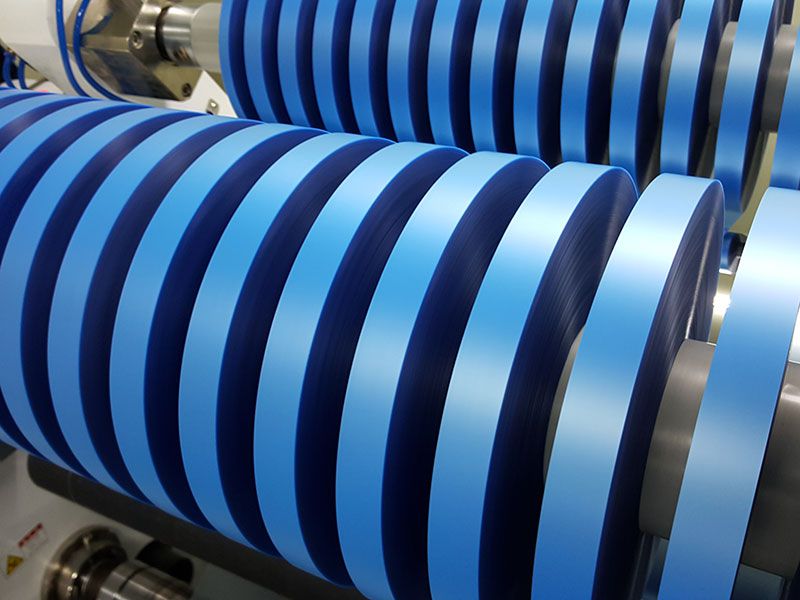

  • Finished roll with min. width of 10mm Finished roll with min. width of 10mm
  • 2 units of magnetic powder clutch for rewind tension control 2 units of magnetic powder clutch for rewind tension control

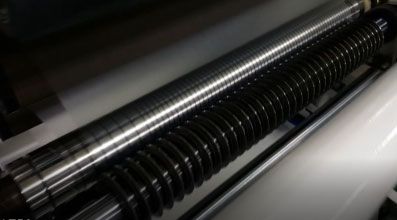

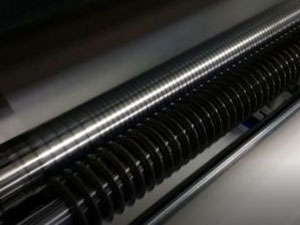

  • Circular knife Circular knife
Features
  • Variable frequency drive for speed control;
  • Magnetic powder brake for unwind tension control;
  • Photoelectric sensor for web guiding;
  • 2 units of magnetic powder clutch for rewind tension control;
  • Two rewind shafts assure stable rewinding operation;
  • Meter counter presetting and automatic stopping functions;
Get in Touch
Our Products
  • Slitter Rewinders
    1. Jumbo Roll Slitter Rewinder
    2. Servo Driven Slitter Rewinder
    3. Shelf Type Film Slitting Machine
    4. Self-Adhesive Paper/Film Slitting Rewinding Machine
    5. Turret Slitter Rewinder
    6. ZTM-T Unibody Type High Speed Turret Slitter Rewinder
    7. Narrow Web Slitter Rewinder
    8. Economical Slitter Rewinder
    9. Paper Roll Slitting Rewinding Machine
    10. Single-Shaft Slitter Rewinder
    11. Paper Slitter Rewinder
    12. Vertical Slitting Rewinding Machine
    13. Automatic Horizontal Slitter Rewinder
    14. Automatic Vertical Slitting Rewinding Machine
    15. Surface Slitter Rewinder
    16. Automatic Thermal Paper Slitting and Rewinding Machine
    17. Rewinder Machine
  • Shrink Sleeve Seaming Machines
    1. Moldless Shrink Sleeve Seaming Machine
    2. Shrink Sleeve Seaming Machine
  • Inspection Rewinding Machines
    1. Servo Driven Inspection and Doctoring Rewinder
    2. Shrink Sleeve Inspection Machine
    3. Inspection Rewinder
  • Solventless Laminator
Other Products

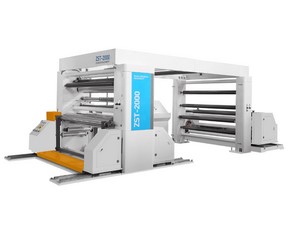

Paper Roll Slitting Rewinding Machine

Paper Roll Slitting Rewinding Machine

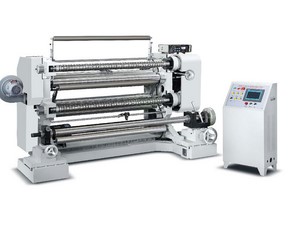

Automatic Vertical Slitting Rewinding Machine

Automatic Vertical Slitting Rewinding Machine

Moldless Shrink Sleeve Seaming Machine

Moldless Shrink Sleeve Seaming Machine

Shrink Sleeve Seaming Machine

Shrink Sleeve Seaming Machine

Shrink Sleeve Inspection Machine

Shrink Sleeve Inspection Machine

Inspection Rewinder

Inspection Rewinder

Solventless Laminator

Solventless Laminator

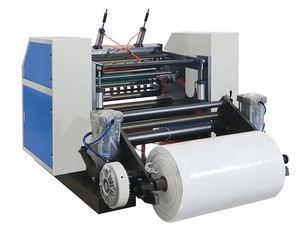

Automatic Thermal Paper Slitting and Rewinding Machine
