Servo Driven Slitter Rewinder, ZTM-C

Suitable for slitting and rewinding of various films

Servo Driven Slitter Rewinder, ZTM-C
Video

Servo Driven Slitter Rewinder, ZTM-C

Suitable for slitting and rewinding of various films

The ZTM-C servo driven slitter rewinder is designed typically to handle a variety of films including optical film, PET release film, BOPP film, PVC film, PET film and PE film at processing speeds of up to 600m/min. This high speed film slitter rewinder allows user to easily rewind various materials due to two servo motors at the rewind station.

Inquiry
Specifications
Model ZTM-C1300 ZTM-C1600
Max. web width 1300mm 1600mm
Max. unwind diameter Ø1000mm Ø1000mm
Max. rewind diameter Ø600mm Ø600mm
Paper core diameter 3''(optional:6'') 3''(optional:6'')
Slitting speed 10-600m/min 10-600m/min
Tolerance of EPC ≤0.1mm ≤0.1mm
Min. slitting width 50mm 50mm
Total power 22kW 30kW
Machine weight 5500kg 6500kg
Overall dimensions 2400mm×4500mm×1840mm 2400mm×4800mm×1840mm
Details
  • Hydraulic lifting mechanism for automatic loading of mother rolls Hydraulic lifting mechanism for automatic loading of mother rolls

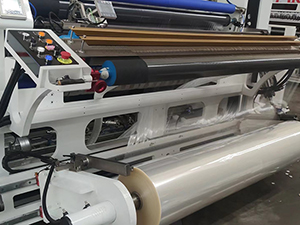

  • Shaftless unwind unit Shaftless unwind unit

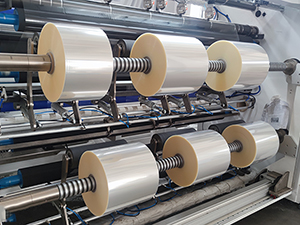

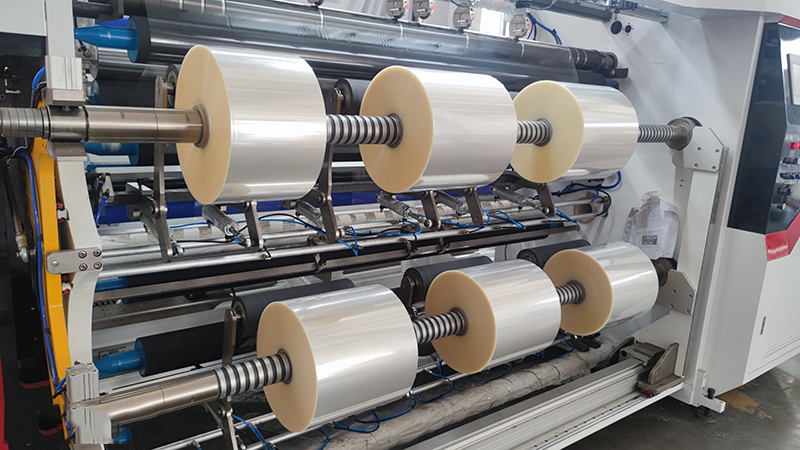

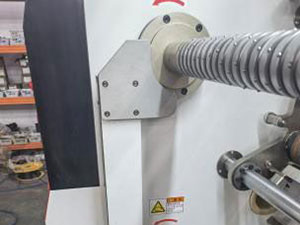

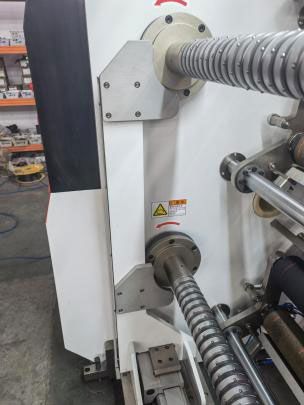

  • Rewind unit with differential shaft Rewind unit with differential shaft

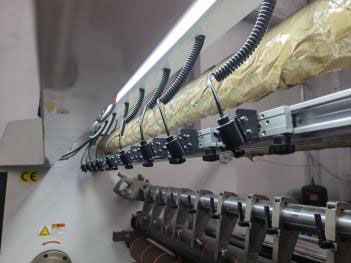

  • Razor blades for film slitting Razor blades for film slitting

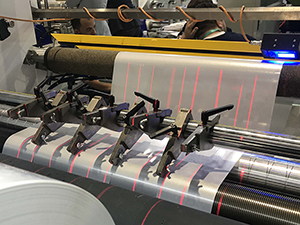

  • Laser core positioning system Laser core positioning system
  • Automatic finished roll pushing device Automatic finished roll pushing device

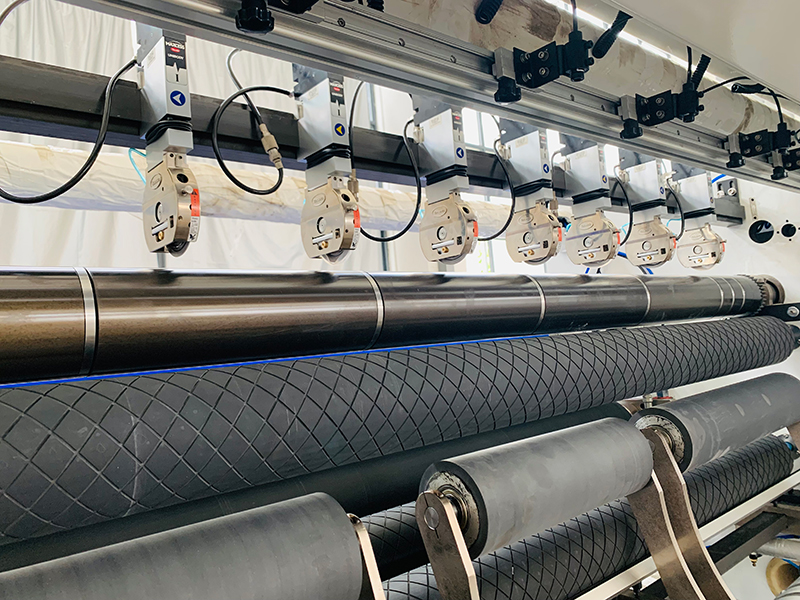

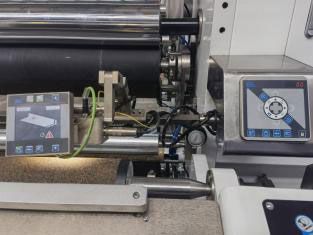

  • Erhardt+Leimer LPC web guide system Erhardt+Leimer LPC web guide system

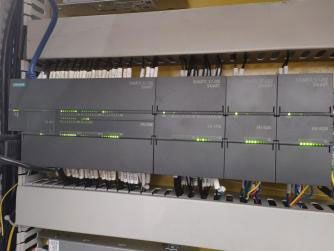

  • Siemens PLC Siemens PLC

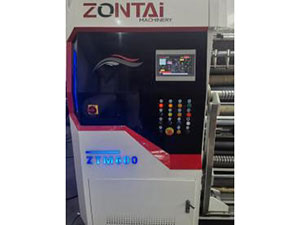

  • PLC control panel PLC control panel

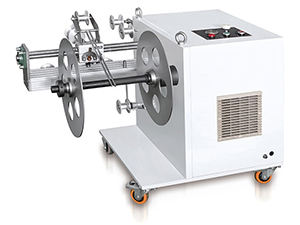

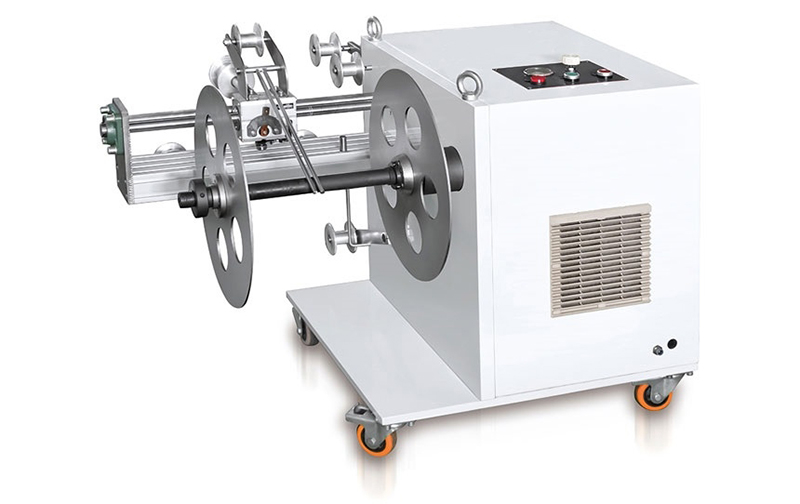

  • Edge trim rewinder (optional) Edge trim rewinder (optional)
  • Taxcess pneumatic circular knife (optional) Taxcess pneumatic circular knife (optional)

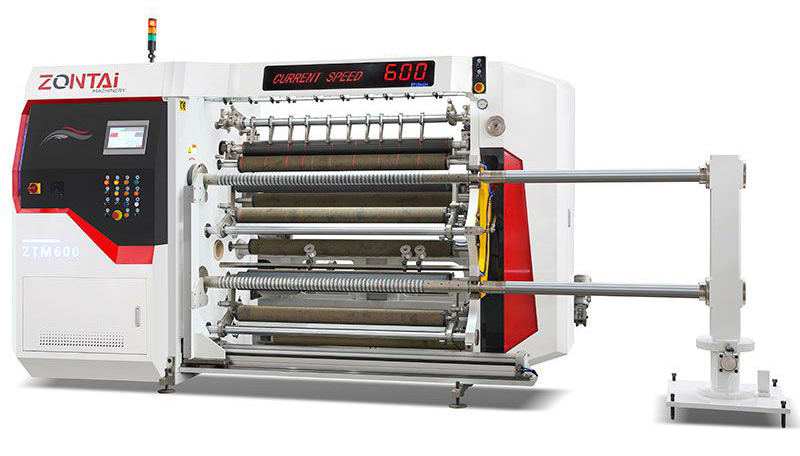

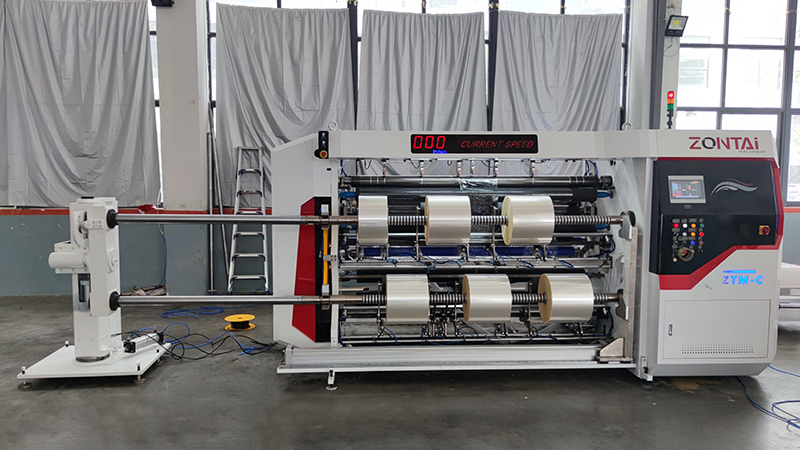

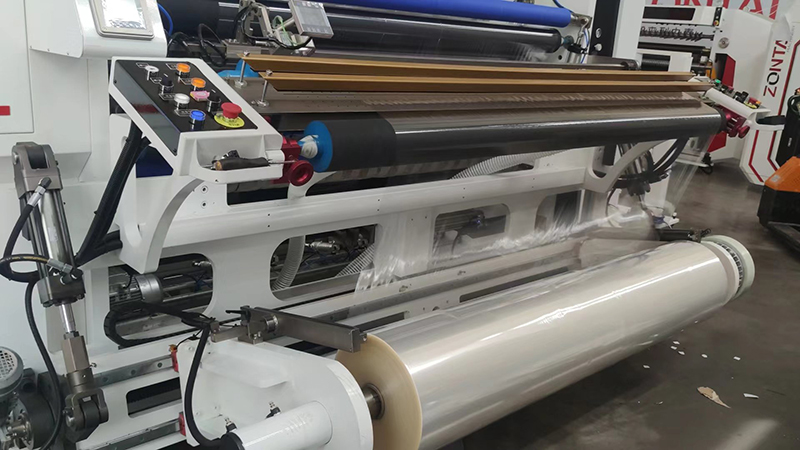

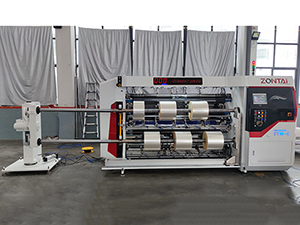

  • Entire machine view Entire machine view
Features
  • High processing speed up to 600m/min;
  • Servo motor control from German brand Erhardt+Leimer;
  • Closed-looped unwind tension control;
  • Automatic air pressure system adjusts the air pressure axially along the rewind shaft;
  • All electrical components of web guiding system, motor, PLC control and valves are imported from world's renowned supplier;
  • Hydraulic loader is fitted at shaftless unwind unit for automatic loading of film rolls;
  • Rewind station is equipped with pneumatic friction shaft;
