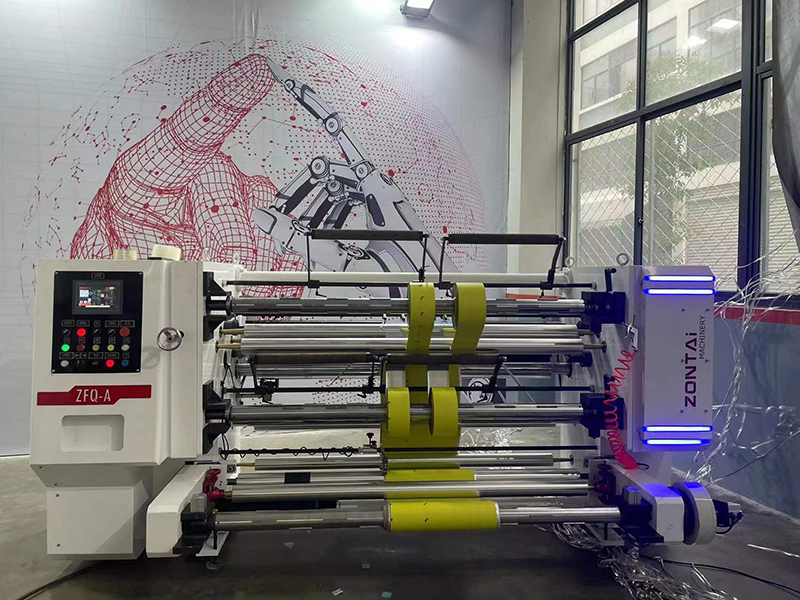

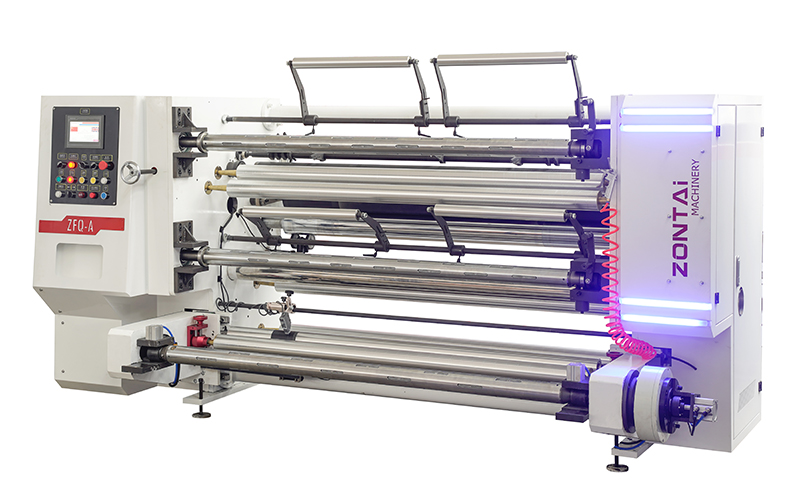

Automatic Vertical Slitting Rewinding Machine, ZFQ

Suitable for converting various film rolls

Automatic Vertical Slitting Rewinding Machine, ZFQ
Video

Automatic Vertical Slitting Rewinding Machine, ZFQ

Suitable for converting various film rolls

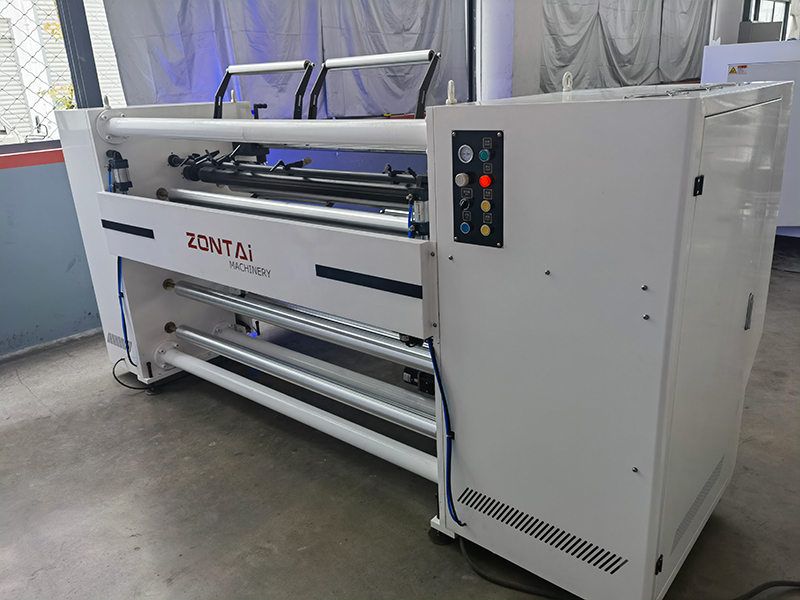

ZFQ automatic vertical slitting rewinding machine is an economical choice for slitting various roll materials of PVC, PET, BOPP and PE films, with slitting speed of up to 160 meters per minute. Two shafts at rewind station make the rewinding operation more efficiently.

Inquiry
Specifications
Model ZFQ-1000 ZFQ-1300
Max. width of mother roll 1000mm 1300mm
Max. diameter of mother roll Ø600mm Ø600mm
Max. rewind diameter 450mm 450mm
Width of finished roll 30-1000mm 30-1000mm
Slitting and rewinding speed 5-250m/min 5-250m/min
Tolerance of EPC < ±0.5mm < ±0.5mm
Total power 3.7kW 3.7kW
Machine weight 1200kg 1200kg
Overall dimensions 2700×1510×1600mm 2700×1510×1600mm
Details
  • Unwind and rewind in one side Unwind and rewind in one side
  • Vertical slitting & rewinding machine Vertical slitting & rewinding machine

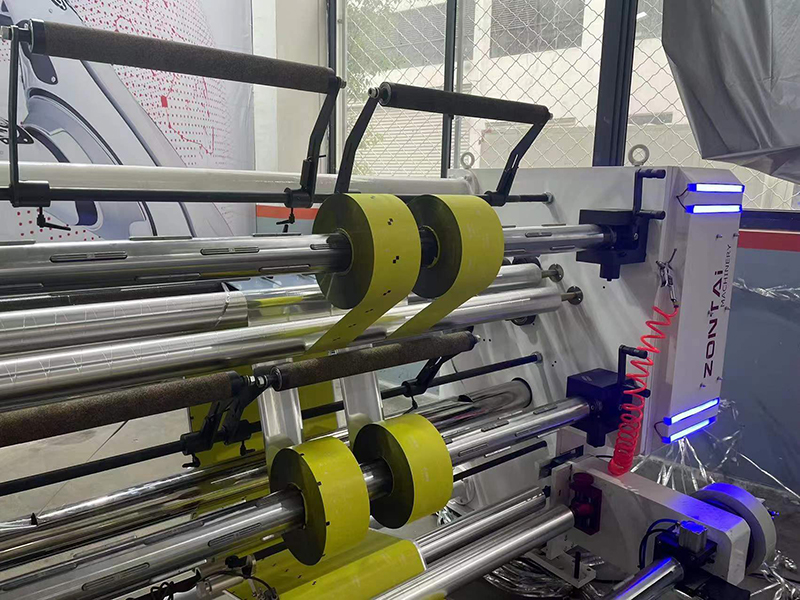

  • Rewind station with 3-inch air shafts Rewind station with 3-inch air shafts
  • Magnetic brakes and clutches for both unwind and rewind stations Magnetic brakes and clutches for both unwind and rewind stations

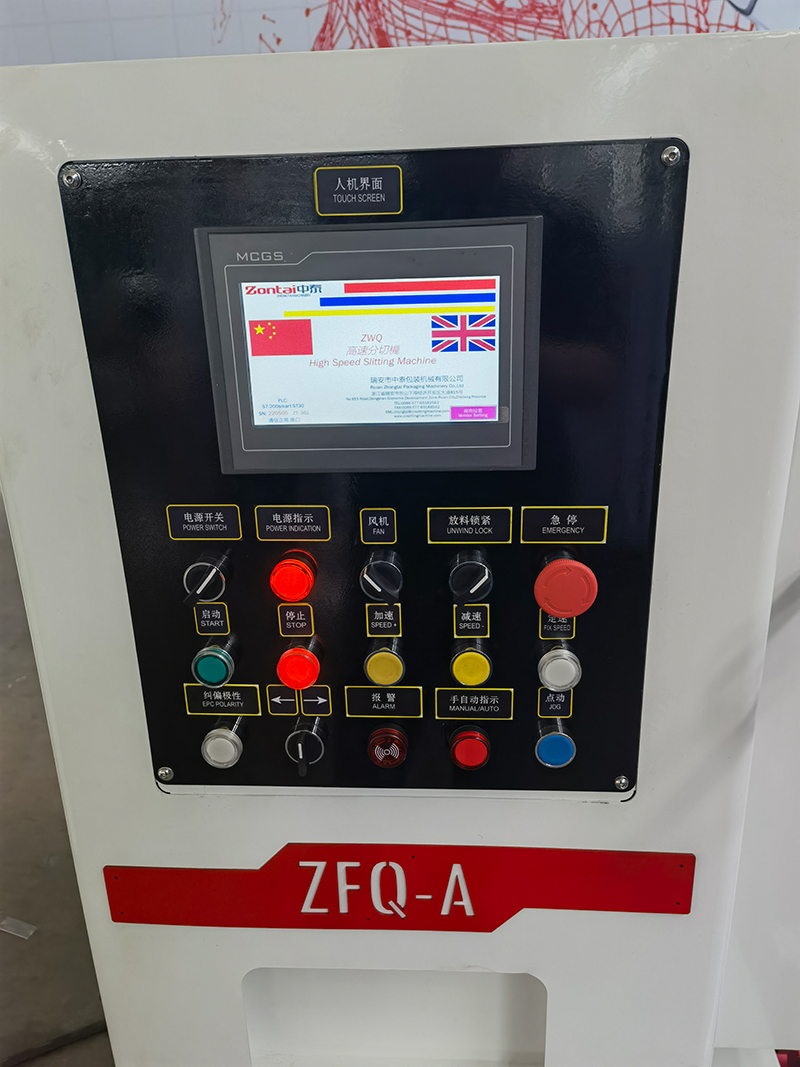

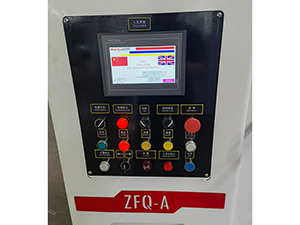

  • Touch screen control panel Touch screen control panel

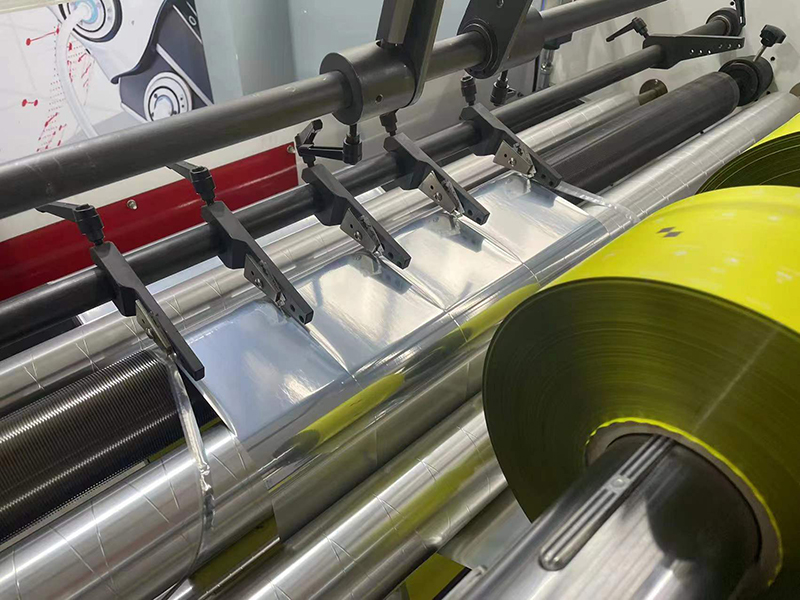

  • Razor knife Razor knife

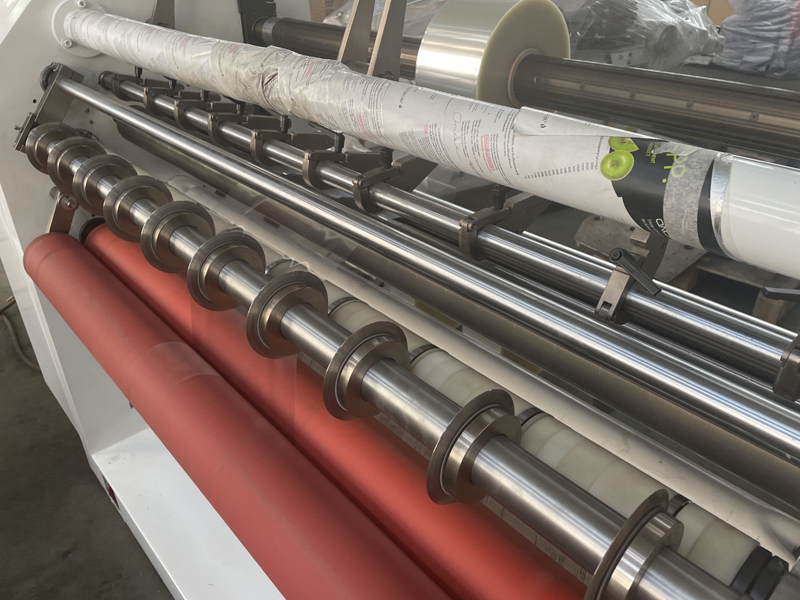

  • Slitting station with razor blades as standard configurations (circular knives are optional) Slitting station with razor blades as standard configurations (circular knives are optional)
Features
  • Can be simply operated by using Microsoft computer, delivering easy and convenient operation;
  • The control unit is connected to the machine body, taking up less space;

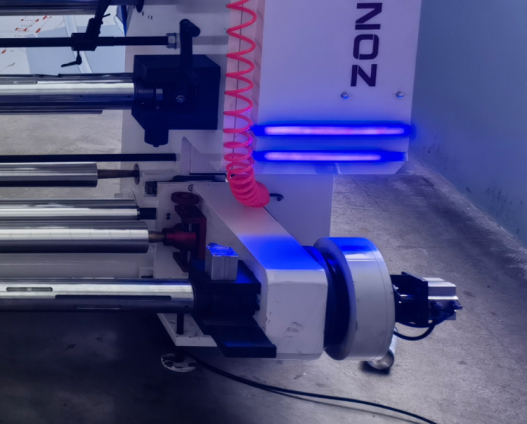

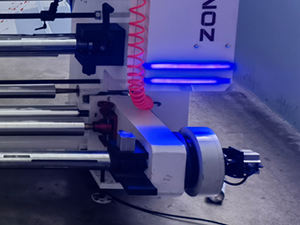

  • Automatic EPC web guide system for unwind edge control, photocell for the detection of web edge and print marks;
  • 3-inch air shafts are used on both unwind and rewind stations, magnetic powder brake and clutch are adopted for tension control;
  • Speed control is carried out by motor with frequency converter;
  • Trim waste discharge conveying system is configured;
  • Automatic length measuring device;
  • Razor blades for slitting;
