Jumbo Roll Slitter Rewinder, ZTM-F

Suitable for kraft paper, coated paper, corrugated paper and glassine paper

Jumbo Roll Slitter Rewinder, ZTM-F
Video

Jumbo Roll Slitter Rewinder, ZTM-F

Suitable for kraft paper, coated paper, corrugated paper and glassine paper

The ZTM-F jumbo roll slitter rewinder is an ideal solution for converting a variety of materials such as kraft paper, silicone coated paper, thermal paper, fluting paper, sublimation paper, glassine paper, double side coated paper and recycled paper, with a web width range of 1600-3000mm. The maximum machine speed reaches 600 meters per minute.

Inquiry
Specifications
Jumbo roll width 1600/1800/2000/2400-3000mm
Unwind paper core diameter 3”-12’’
Unwind roll diameter Ø1000-Ø2000mm
Max. jumbo roll weight 4000kgs
Paper thickness range 30-600gsm
Rewind diameter Ø600-Ø2000mm
Rewind paper core diameter 3’’
Slitting speed 10-600m/min (depend on material slitting size and thickness)
EPC tolerance ≤0.1mm
Min. slitting width 60mm
Weight 14000kg
Power supply 380V 3Phases 50Hz
Total power 55kW
Machine dimension 5200×3900×4100mm
Details

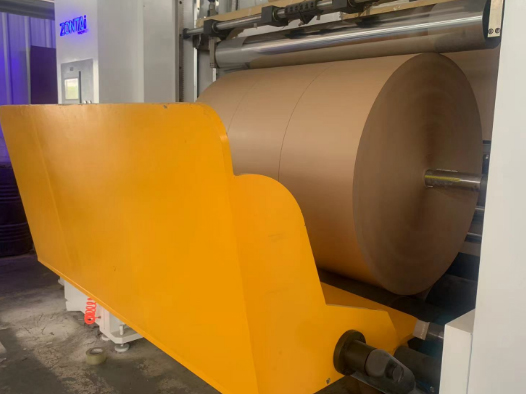

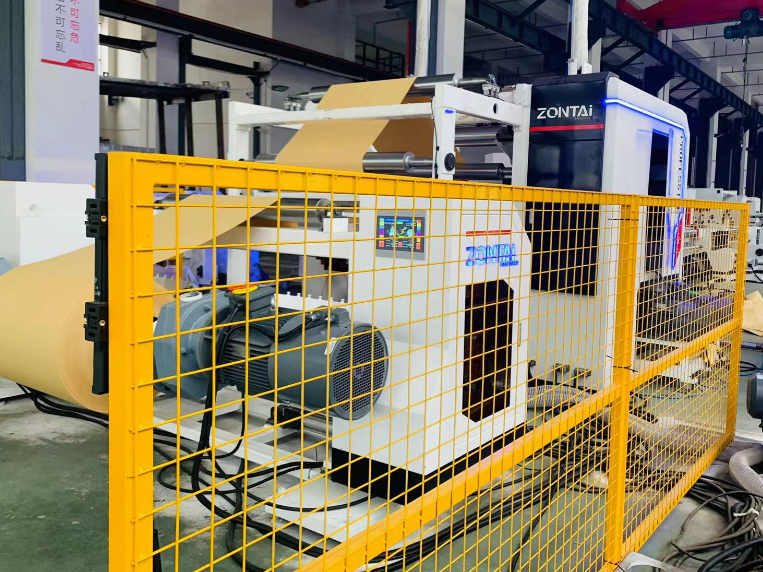

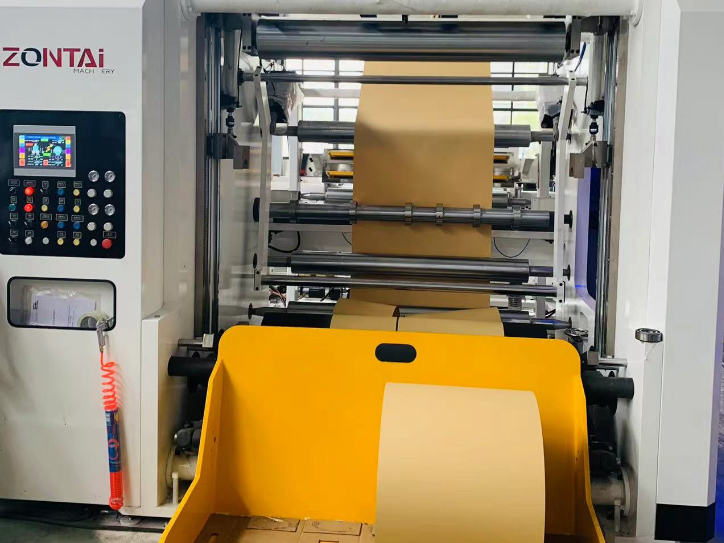

  • Rewind station with unload bucket which can lift up to protect rolls during running Rewind station with unload bucket which can lift up to protect rolls during runningRewind station with unload bucket which can lift up to protect rolls during running
    Rewind station with unload bucket which can lift up to protect rolls during running

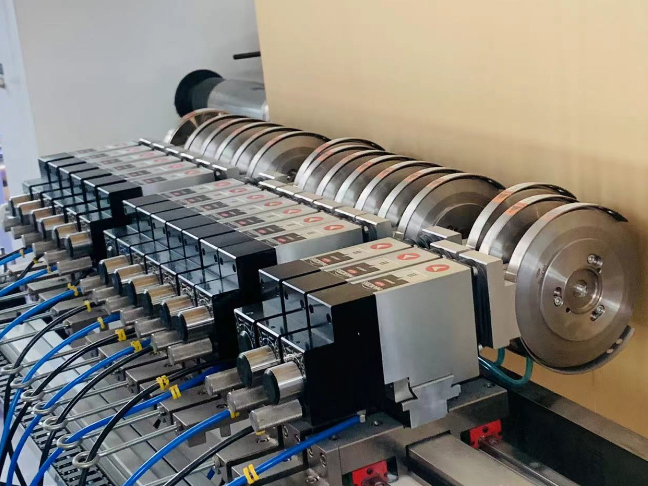

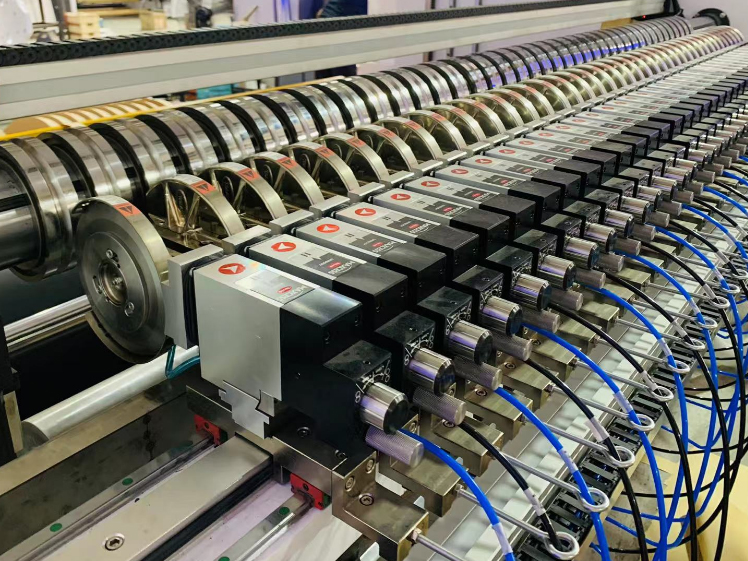

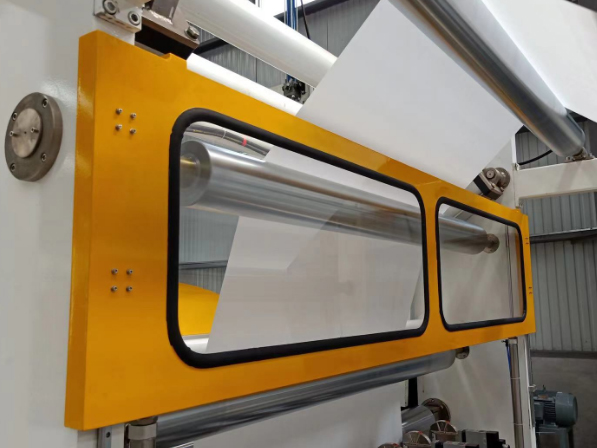

  • Pneumatic circular knives with protection coverPneumatic circular knives with protection cover
    Pneumatic circular knives with protection cover
  • Automatic moving system for pneumatic circular knife Automatic moving system for pneumatic circular knife

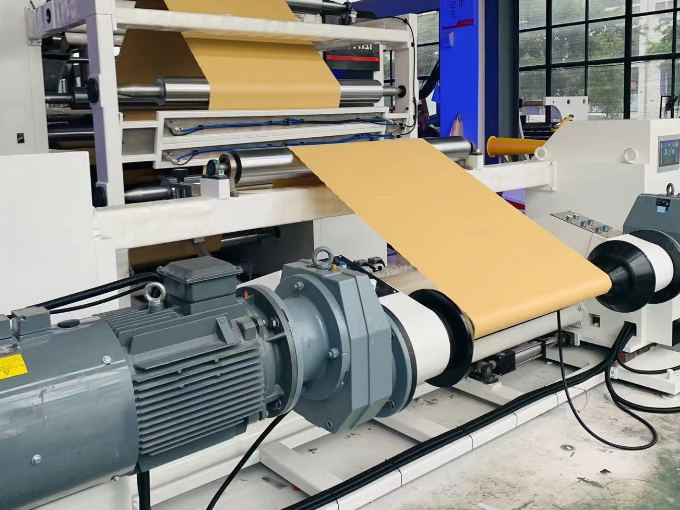

  • Unwind shaftless loading unit with motor control + inverter (optional device) Unwind shaftless loading unit with motor control + inverter (optional device)

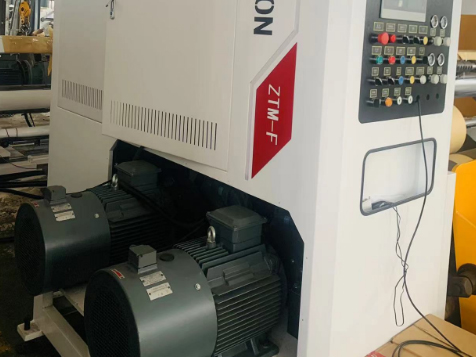

  • Two rewind motors for the independent control of 2 rewind shafts Two rewind motors for the independent control of 2 rewind shafts

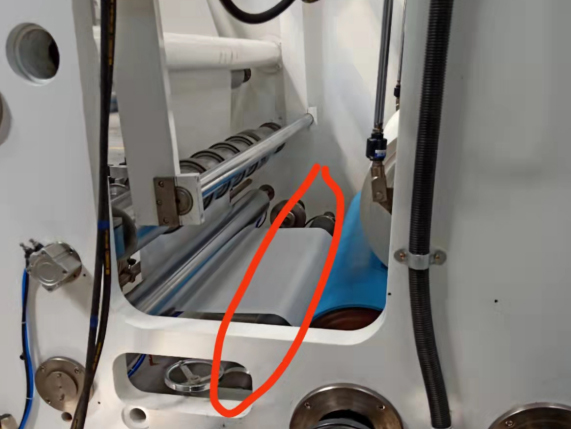

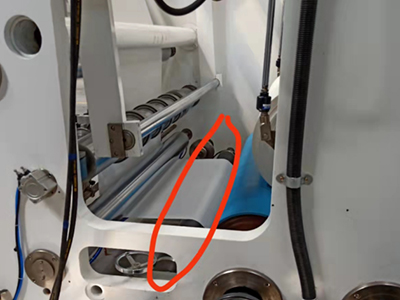

  • Banana roller (1pc) Banana roller (1pc)

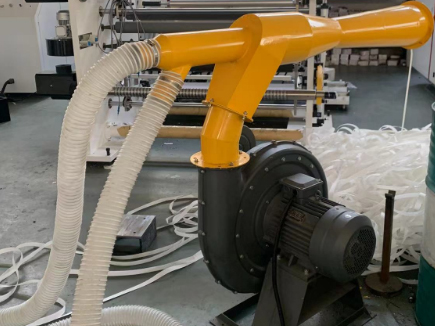

  • Trimming unit with suction blowerTrimming unit with suction blower
    Trimming unit with suction blower

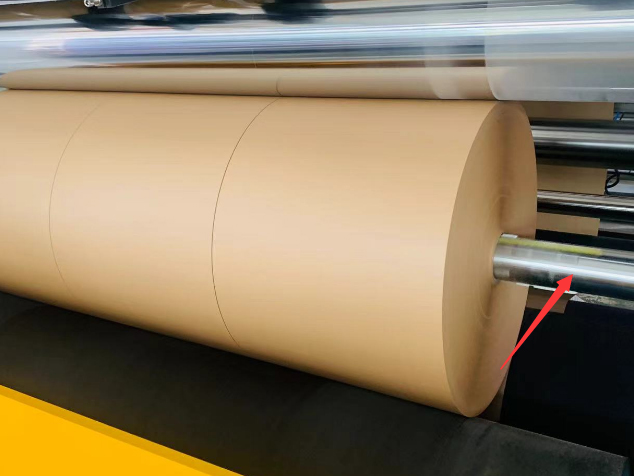

  • Rewind station with additional 3-inch air shafts (1 piece as standard) additional 4-inch/6-inch air shafts are optional Rewind station with additional 3-inch air shafts (1 piece as standard) additional 4-inch/6-inch air shafts are optional

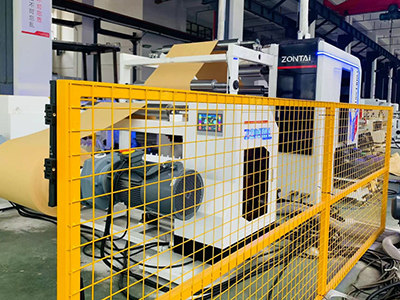

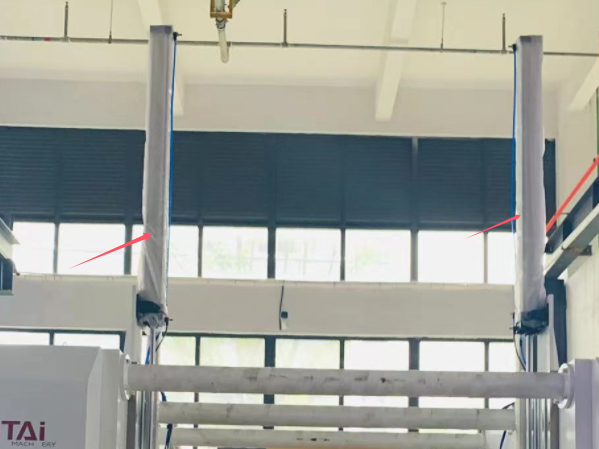

  • Rewinder and unwinder with protection fence and SICK sensor (extra cost) Rewinder and unwinder with protection fence and SICK sensor (extra cost)

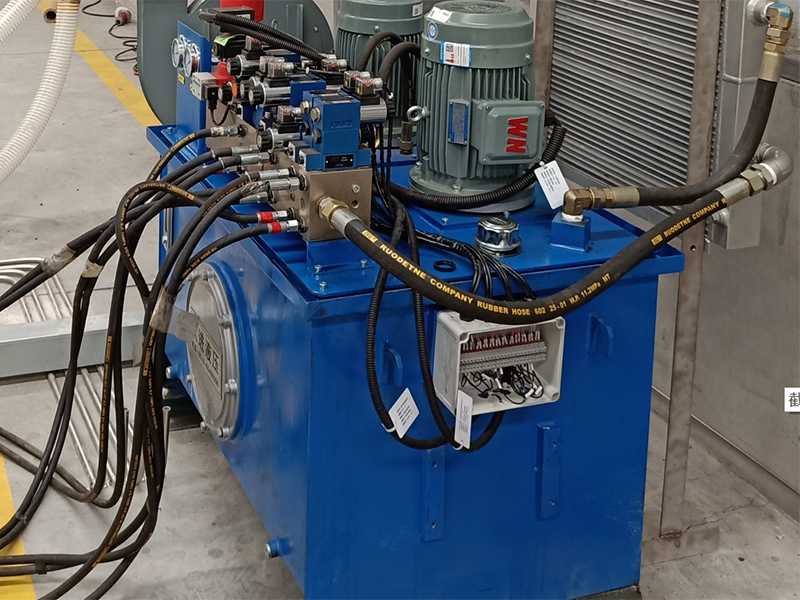

  • Rider roll standard control by pneumatic cylinder, extra cost for changing it to hydraulic systemRider roll standard control by pneumatic cylinder, extra cost for changing it to hydraulic system
    Rider roll standard control by pneumatic cylinder, extra cost for changing it to hydraulic system
Configurations
  • Shaftless unwind unit with pneumatic brake (motor control is optional);
  • Electromechanical web guiding system;
  • Hydraulically controlled bowed roller (banana roller);

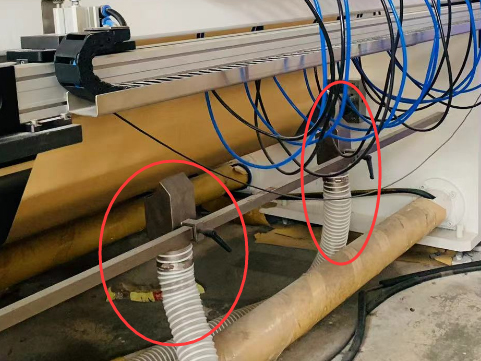

  • Edge trim waste blowing system;
  • Two-drum rewinder with 2 motors;
  • Automatic ejector for finished rolls;
  • Hydraulic lifting system for unloading finished rolls, and picking up rolls from ground level;
Optional
  • Pneumatic circular blades;
  • Unwind station 2 pneumatic brakes can be replaced with 2 motors + 2 inverters + reducers, and load cell for automatic tension control;
  • Automatic pneumatic knife moving system;
  • Additional air shaft (3 inch/4 inch/6 inch);
