Servo Driven Inspection and Doctoring Rewinder, ZTM-H
Servo Driven Inspection and Doctoring Rewinder, ZTM-H
Video

Servo Driven Inspection and Doctoring Rewinder, ZTM-H

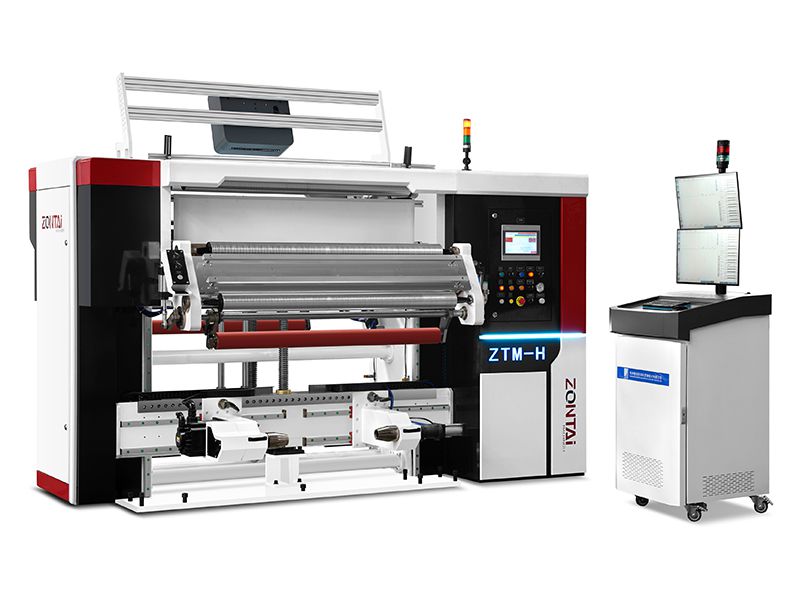

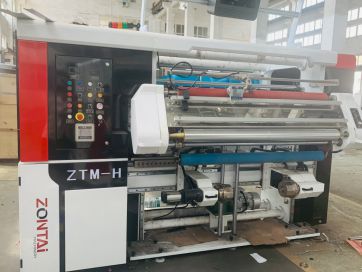

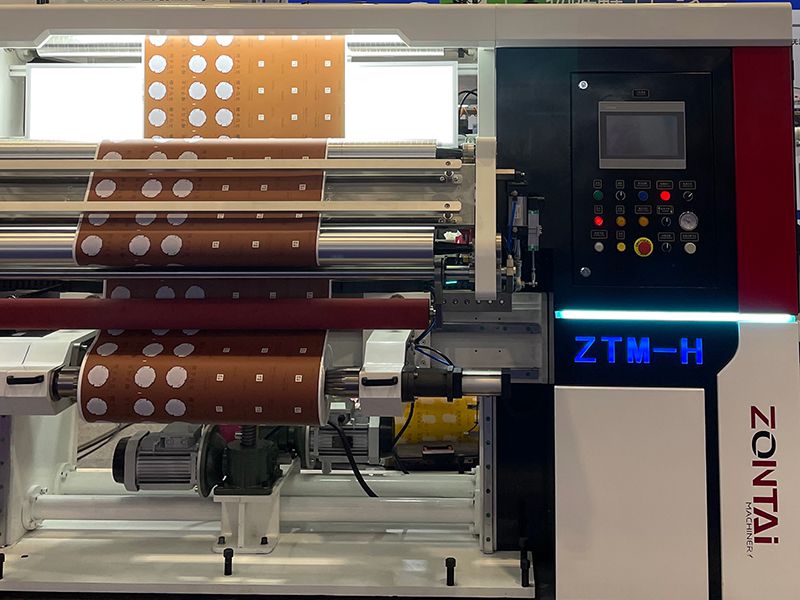

ZTM-H servo driven inspection and doctoring rewinder is used for rewinding and inspecting printed plastic films with a maximum mechanical speed of 400 meters per minute, assisting operator in removing defective printing. The automatic doctoring and rewinding machine allows web width range of 300-1300mm, and roll diameter of 1000mm for both unwind and rewind.

Inquiry
Specifications
MODEL ZTM-H
Jumbo roll width 1000-1300mm
Diameter of roll Ø800mm-1000mm
Diameter of rewinding Ø800mm-1000mm
Inner dia.of paper core 3'' and 6''
Rewinding speed 10-400m/min
Tolerance of EPC ≤0.1mm
Total power 15kW
Weight 5000Kg
overall dimension (L x W x H) 3200mmx2100mmx1950mm
Details

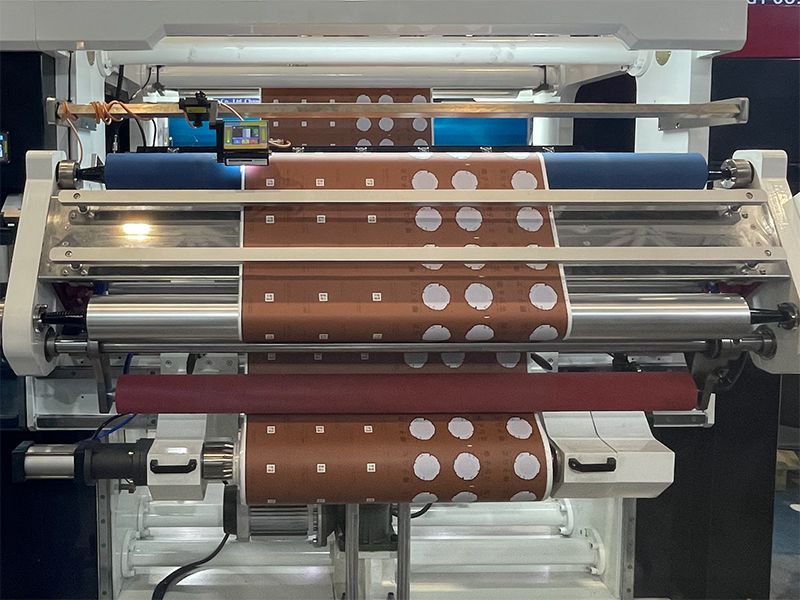

  • Machine complete set Machine complete set
  • Meter counter wheel Meter counter wheel

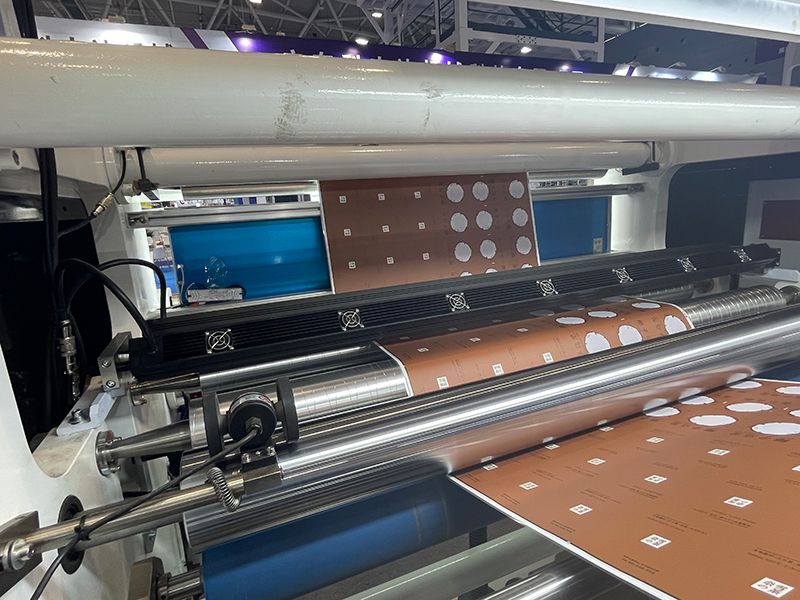

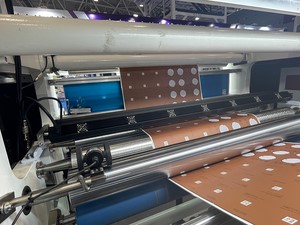

  • Automatic Inspection system Automatic Inspection system

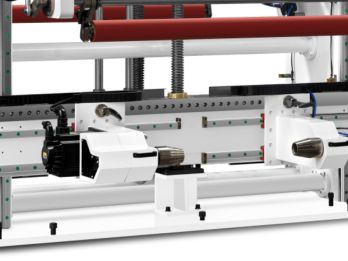

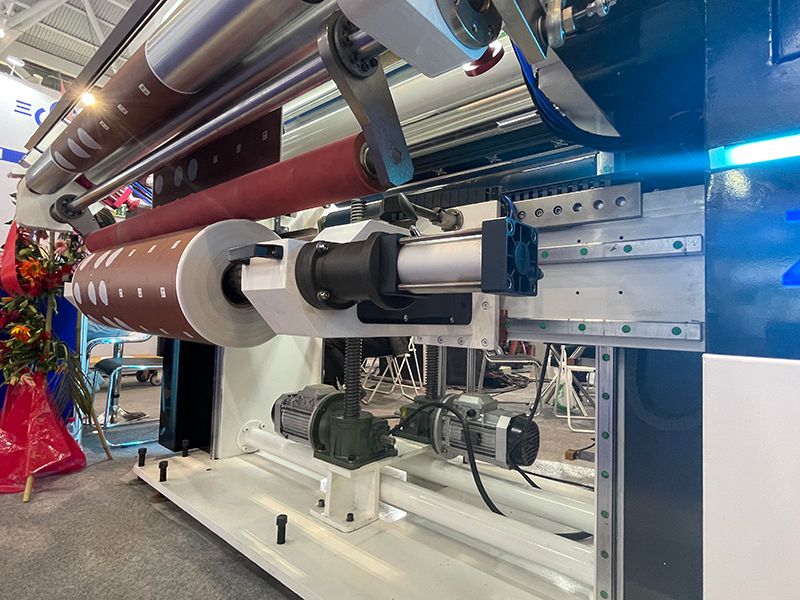

  • Unwinder and rewinder use shaftless type hydraulic system control Unwinder and rewinder use shaftless type hydraulic system control
  • Material’s up and down adopts separate motor and speed reducer Material’s up and down adopts separate motor and speed reducer
  • Taiwanese brand PAUSOURCE EPC device Taiwanese brand PAUSOURCE EPC device
  • Joint table for connecting rolls in unwinder and rewinder sides Joint table for connecting rolls in unwinder and rewinder sides

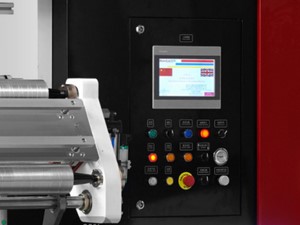

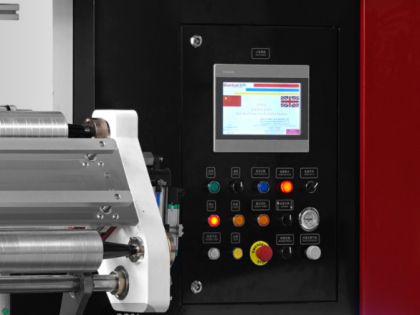

  • PLC controller system PLC controller system
  • LPC adopts analog control. Driving by servo motor through CCD camera LPC adopts analog control.
    Driving by servo motor through CCD camera
Features

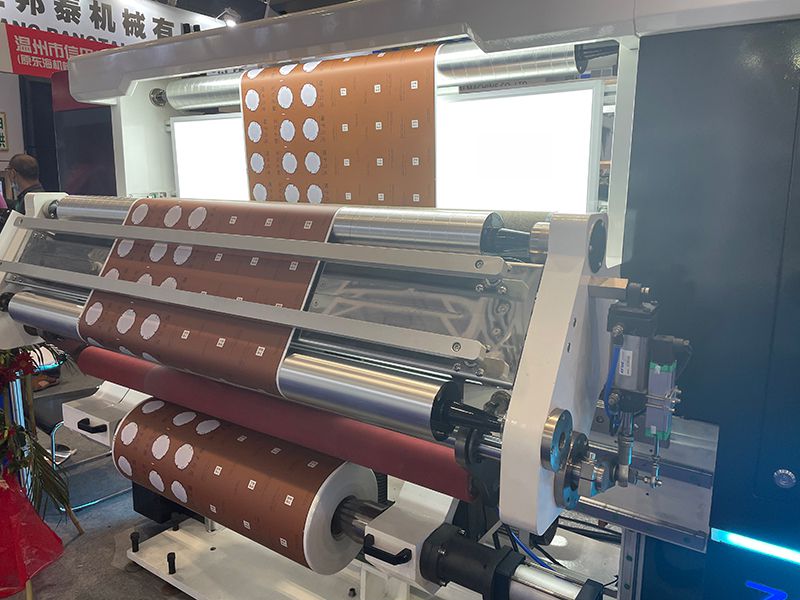

  • Winding can be operated in forward and reverse direction;
  • Equipped with inspection strobe light for manual defect detection;

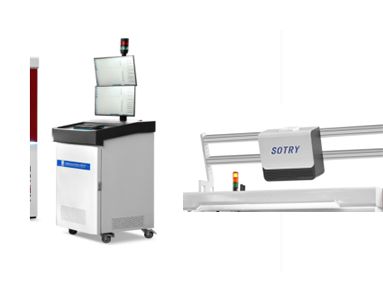

  • Compatible with automatic inspections system from any brand such as AVT, DAC, E+L, Sotry, Kesai, etc.;
  • Shaftless unwind and rewind stands are designed with hydraulic system;
  • Independent motor and speed reducer are used for control of material up and down movement, keeping the nip roll always at the same angle as the material;
  • More precise tension control;
  • Splice table for web connecting;
  • LPC device is from world's renowned brand to provide accurate web positioning;
