Single-Shaft Slitter Rewinder, ZTM-B

Suitable for conversion of paper, kraft paper and adhesive labels

Single-Shaft Slitter Rewinder, ZTM-B
Video

Single-Shaft Slitter Rewinder, ZTM-B

Suitable for conversion of paper, kraft paper and adhesive labels

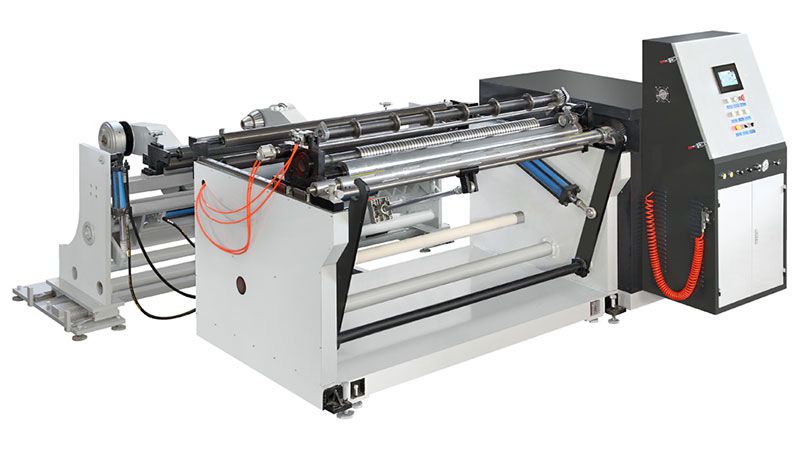

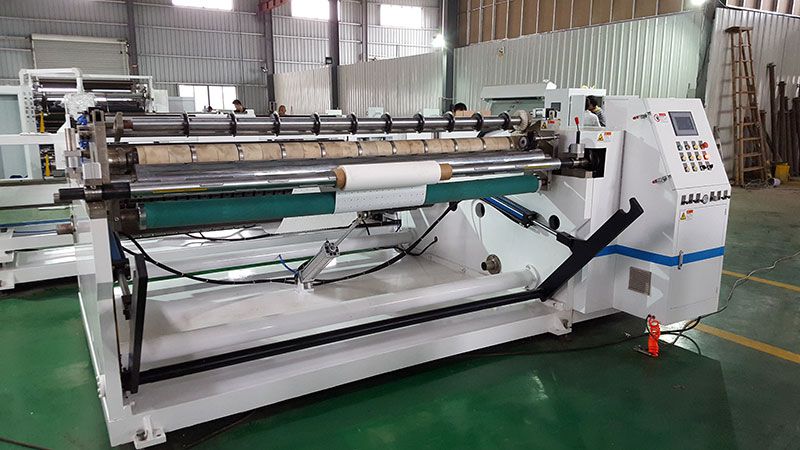

Our ZTM-B single-shaft slitter rewinder is suited to cut down the parent roll of paper materials such as paper, kraft paper and adhesive labels into desired widths, and then rewind the final product back into narrower rolls with one rewind shaft. This paper roll slitting machine reaches a production speed of up to 250m/min.

Inquiry
Specifications
Model ZTM-B 1300 ZTM-B 1600
Max. web width 1300mm 1600mm
Max. unwind diameter Ø1200mm Ø1500mm
Max. rewind diameter Ø1200mm Ø1500mm
Min. slitting width 50mm 50mm
Mechanical speed 250 m/min 250m/min
Substrate thickness 40-500gsm 40-500gsm
Machine weight 4000kg 5200kg
Overall dimensions 3900×3500×1500mm 4200×3900×1500mm
Voltage 380V three phase 380V three phase
Details

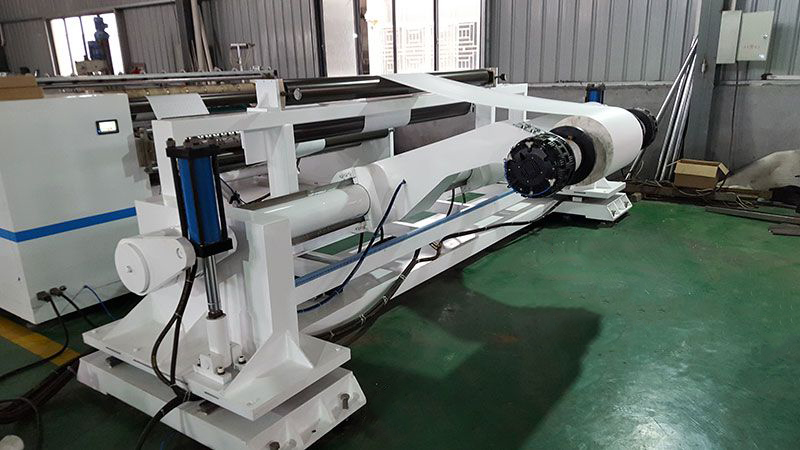

  • Unwind station with hydraulic loader for mother rolls Unwind station with hydraulic loader for mother rolls

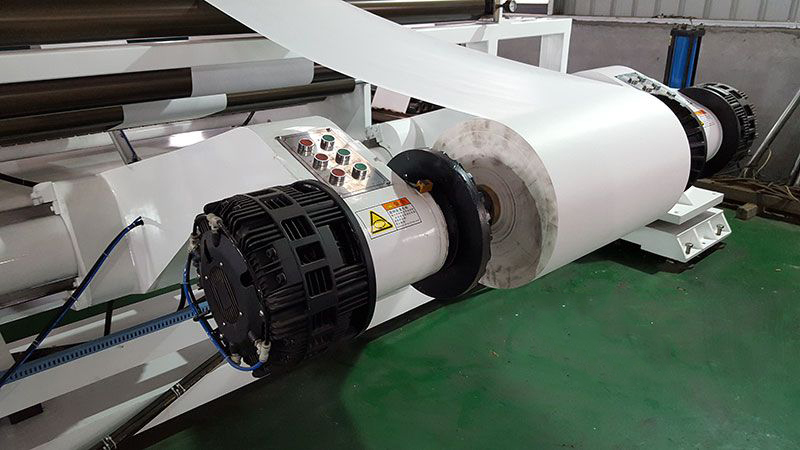

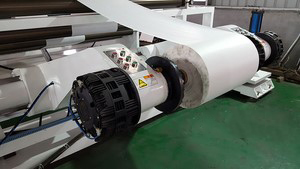

  • Pneumatic brake shaftless unwind unit (optional) Pneumatic brake shaftless unwind unit (optional)

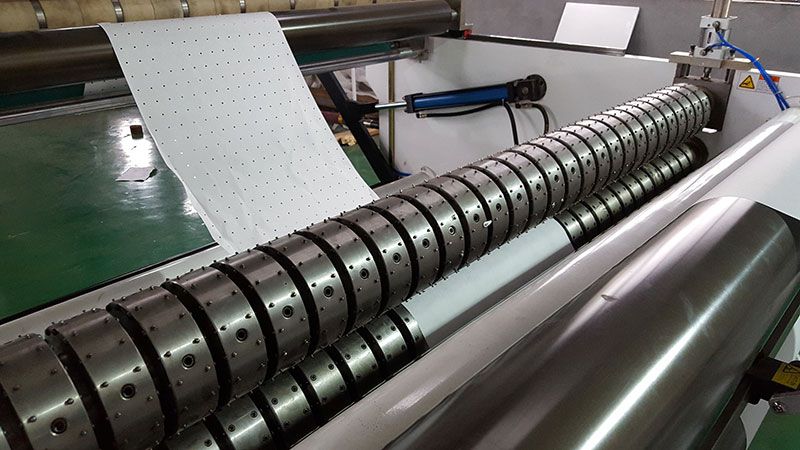

  • Perforation punching shaft (optional) Perforation punching shaft (optional)
  • Rewinder with air shaft Rewinder with air shaft
  • Rewind station with hydraulic lifter for unloading finished rollsRewind station with hydraulic lifter for unloading finished rolls
  • Rewinder (max. diameter 1000-1500mm)Rewinder (max. diameter 1000-1500mm)
Features
  • This single-shaft slitter rewinder is ideal for manufacturing adhesive label, kraft paper or other paper products requiring large winding diameters and narrow slitting widths.
  • The entire slitter rewinder machine is controlled by PLC system, permitting operator to easily control the machine through touch screen.
  • Magnetic particle clutch or pneumatic brake is used on unwind station, and constant unwinding tension is maintained through PLC automatic compensation of roll diameter change.
  • Rewinding control is managed by a vector variable frequency drive, therefore maintaining a constant speed.
  • Rewind station has a hydraulic lifting mechanism to unload finished rolls.
  • Hydraulic loader is fitted at unwind stand for automatic loading of paper rolls, more suitable for workshops where lifting equipment such as overhead cranes are not available. It can significantly reduce labor intensity and shorten the time for loading operations. The unwind stand is provided with options of shafted or shaftless loading method to suit actual needs.
  • EPC (edge position control) web guide system ensures the accurate position of the material. Photoelectric sensor or hydraulic web guiding unit is optional.
  • This slitting machine also has functions of start buffer, anti loosening, constant speed setting, roll diameter measuring, etc.
