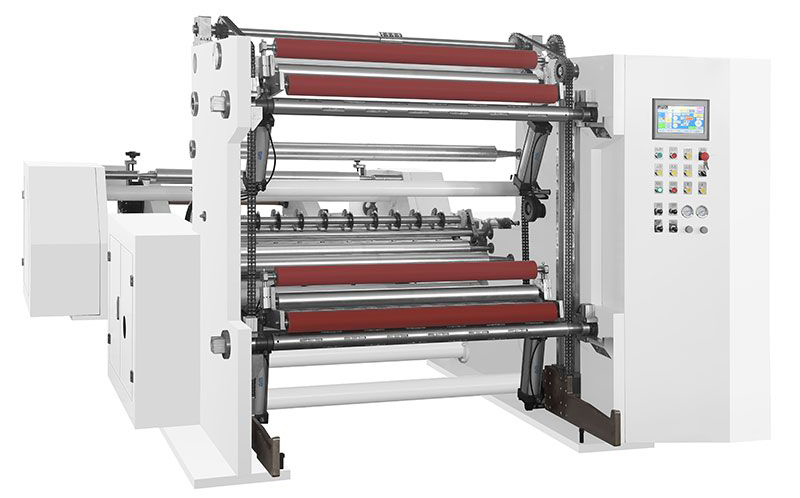

Paper Slitter Rewinder, ZTM-A

Suitable for converting paper, kraft paper and adhesive paper

Paper Slitter Rewinder, ZTM-A
Video

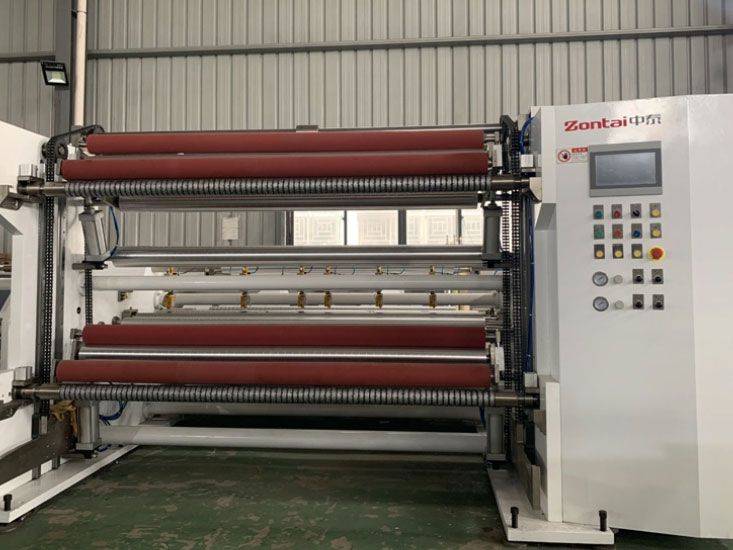

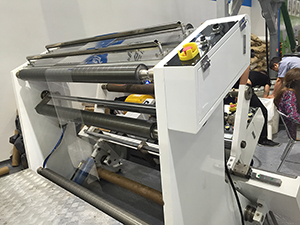

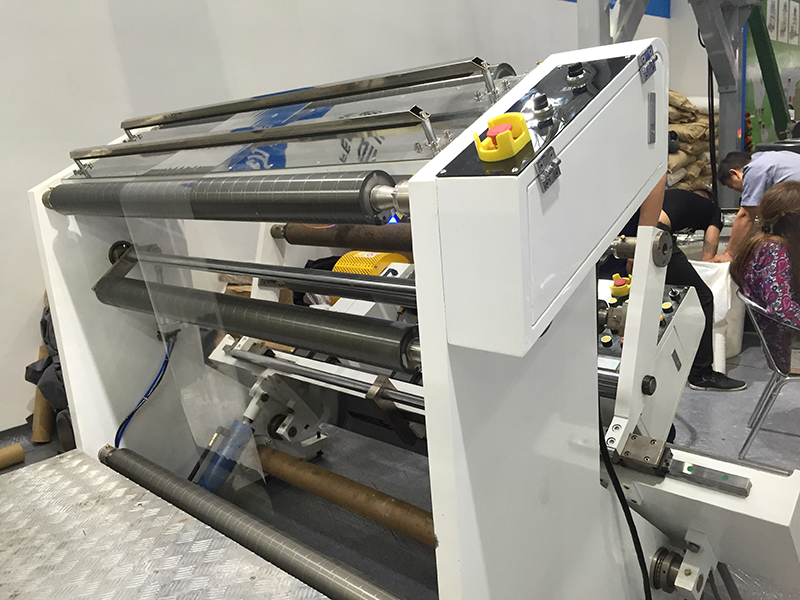

Paper Slitter Rewinder, ZTM-A

Suitable for converting paper, kraft paper and adhesive paper

The ZTM-A paper slitter rewinder is primarily used to convert a parent roll of paper, kraft paper or self-adhesive paper into several smaller rolls, with a maximum slitting speed of 350m/min. This slitting rewinding machine can unwind a master material roll with a web width of up to 2100mm, we can also supply customer-specific modified models to accommodate your web width.

Inquiry
Specifications
Model ZTM-A 1300 ZTM-A 1600
Max. web width 1300mm 1600mm
Max. unwind diameter 1200mm 1200mm
Max. rewind diameter 1000mm 1000mm
Paper core diameter 3″ 3″
Mechanical speed 16-350m/min 16-350m/min
Total power 18kW 22kW
Substrate thickness 45-500gsm 45-500gsm
Min. slitting width 50mm 50mm
Overall dimensions 4500×3000×1900mm 4500×3300×1900mm
Machine weight 4200kg 5200kg
Details

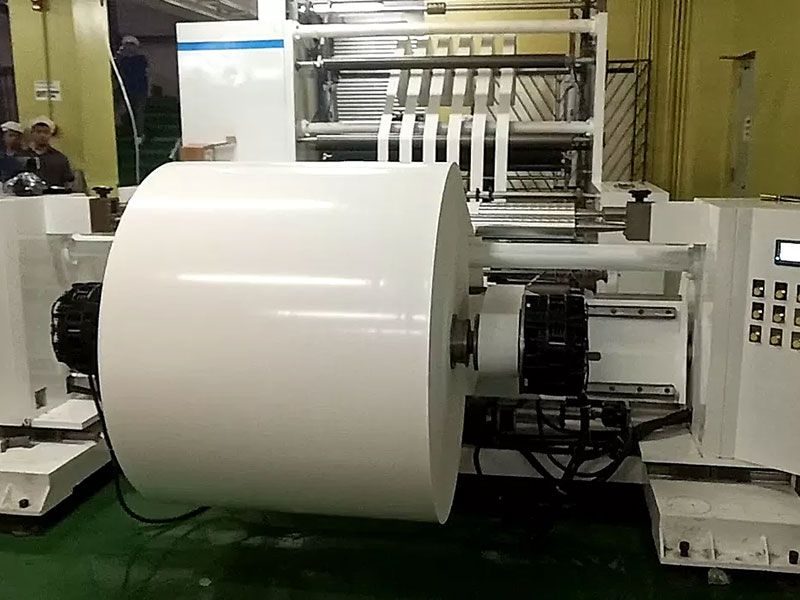

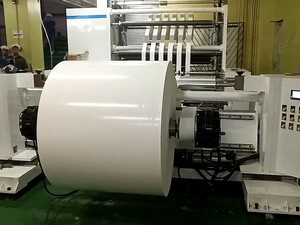

  • Independent unwind stand with hydraulic loader Independent unwind stand with hydraulic loader

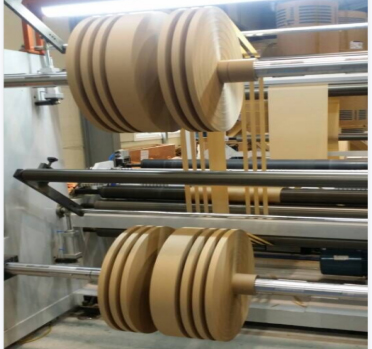

  • Rewinding using differential rewind shaft with friction rings Rewinding using differential rewind shaft with friction rings

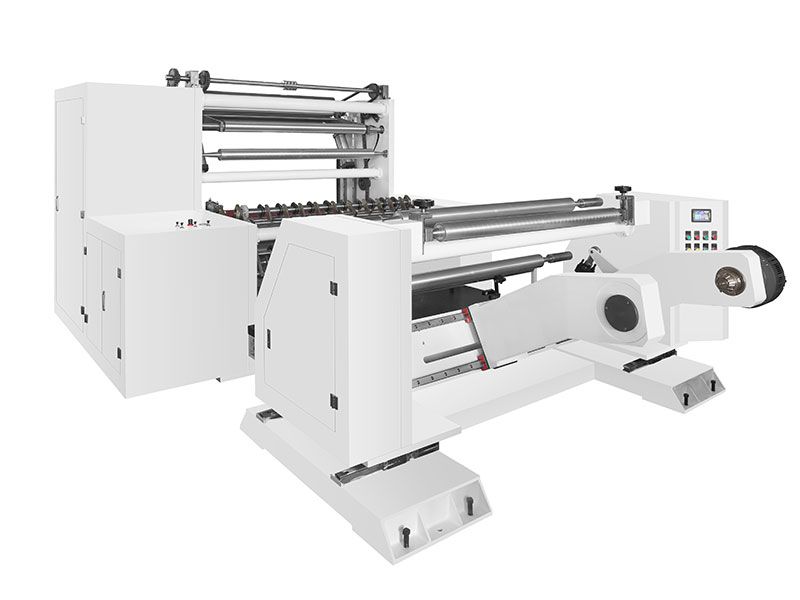

  • Shaftless unwind unit (optional) Shaftless unwind unit (optional)

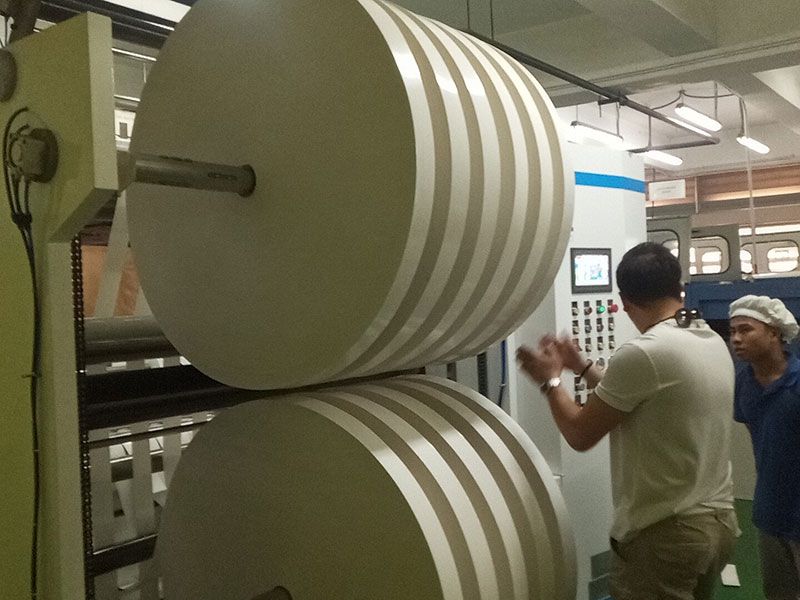

  • Rewinder (max. rewinding diameter 1000mm /1200mm) Rewinder (max. rewinding diameter 1000mm /1200mm)

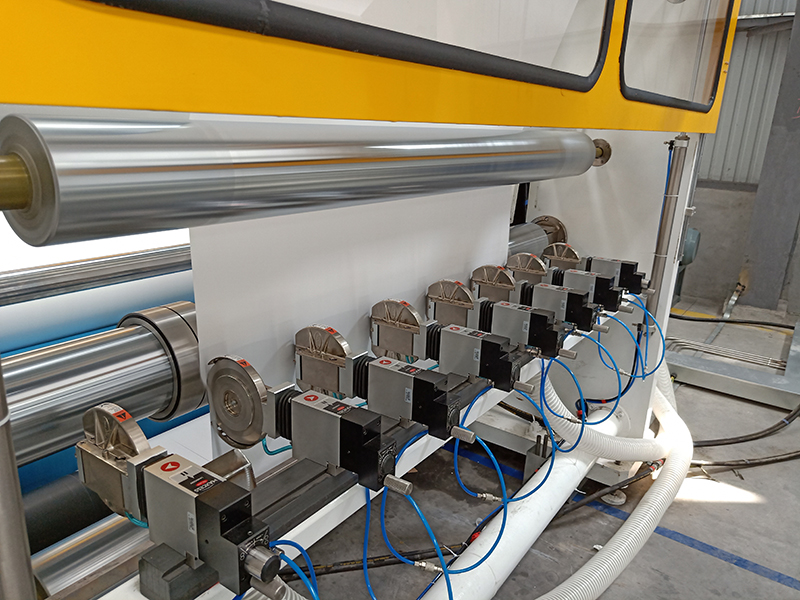

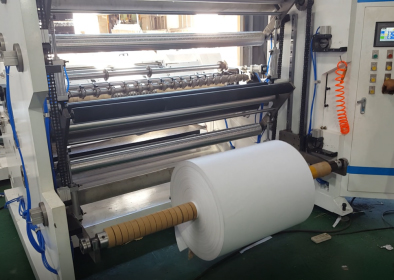

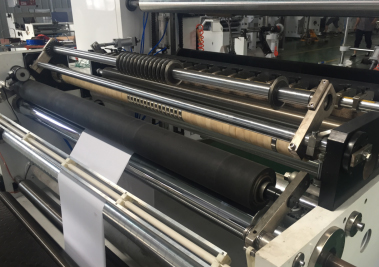

  • Circular knife system Circular knife system
  • Rewinder (min. width 15mm) Rewinder (min. width 15mm)
  • Pneumatic circular blades (optional)Pneumatic circular blades (optional)
  • Automatic roll unloading system for removing finished rolls from rewind shaft Automatic roll unloading system for removing finished rolls from rewind shaft
  • Splice table (optional) Splice table (optional)
Features
  • The entire slitter rewinder is centrally controlled using PLC system, and supported by three vector drives, allowing user to set working parameters or operate the machine via touch screen.
  • Unwind stand is equipped with pneumatic brake for emergency braking, and PLC system automatically measures the roll diameter to keep unwinding tension constant.
  • Web traction control is managed by a vector variable frequency drive, therefore maintaining a constant speed while enabling the unwinding tension to be efficiently isolated from the rewinding tension.
  • Rewind station adopts two vector variable frequency drives, and rewind taper tension control can be achieved by automatically measuring roll diameter.
  • Hydraulic loader is fitted at unwind stand for automatic loading of paper rolls, more suitable for workshops where lifting equipment such as overhead cranes are not available. It can significantly reduce labor intensity and shorten the time for loading operations. The unwind stand is provided with options of shafted or shaftless loading method to suit actual needs.
  • EPC (edge position control) web guide system ensures the accurate position of the material. Photoelectric sensor or hydraulic web guiding unit is optional.
  • This slitting machine also has functions of start buffer, anti loosening, constant speed setting, roll diameter measuring, etc.
