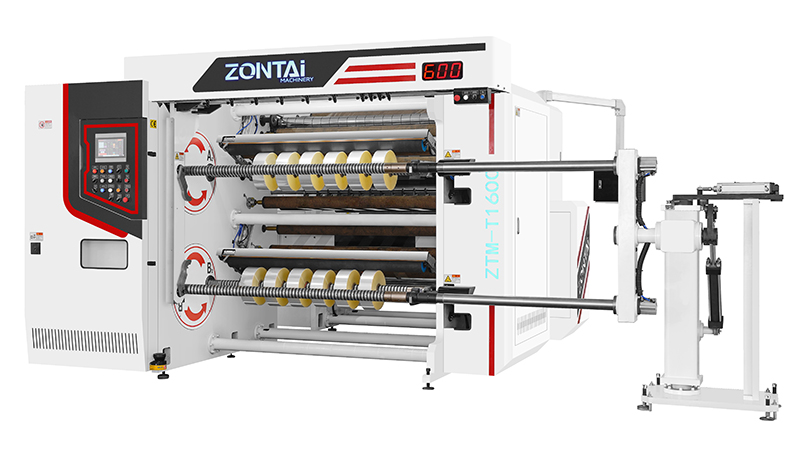

Turret Slitter Rewinder, ZTM-T

Suitable for converting plastic films

The ZTM-T turret slitter rewinder is suitable for converting a wide range of plastic films with a maximum mechanical speed of 800 meters per minute. This slitting rewinding machine maintains a leading position within the domestic slitting machine market, it is well suited for film manufacturers and flexible packaging companies. The turret slitter rewinder can automatically perform unwind width adjustment, mother roll loading and unwinding, significantly lowering labor cost.

Inquiry
Turret Slitter Rewinder, ZTM-T

ZTM-T turret slitter equipped with automatic paper core moving system, auto tape applicator for efficient reel changeover, and auto blade moving system, etc.

Specifications
Model ZTM-T 1300
Max. web width 1300mm
Unwind paper core diameter 3″ 6″
Max. unwind diameter Ø1200mm
Max. rewind diameter Ø600mm
Mechanical speed 800m/min
Rewind paper core diameter 3″
Rewind accuracy ±0.3mm
Rewind motor power 5.5kW*4 sets
Unwind power 7.5kW
Traction motor power 5.5kW
Air blowing motor power 2.2kW
Tension control PLC(Mitsubishi Japan)
Tension setup range 3-20kg
Substrate thickness 12um-150um
Web guide control E+L Germany
Details

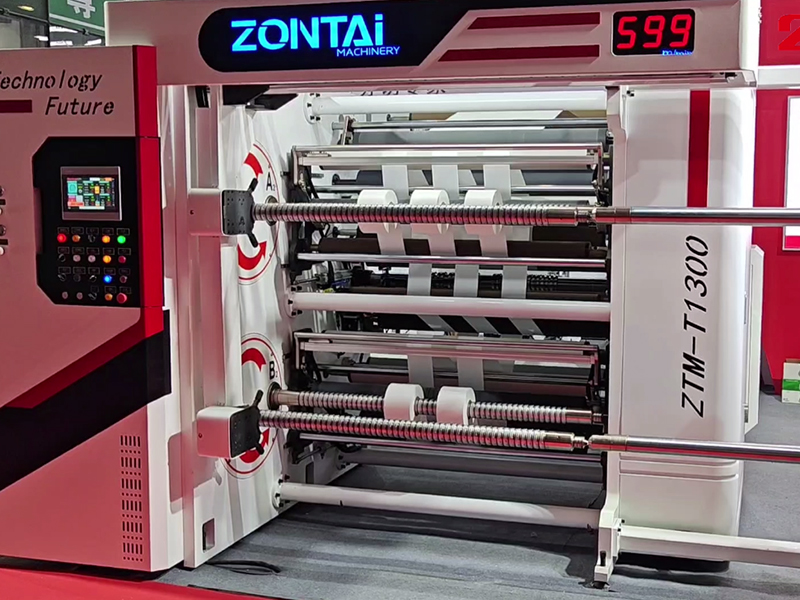

  • Rewinder unit Rewinder unit

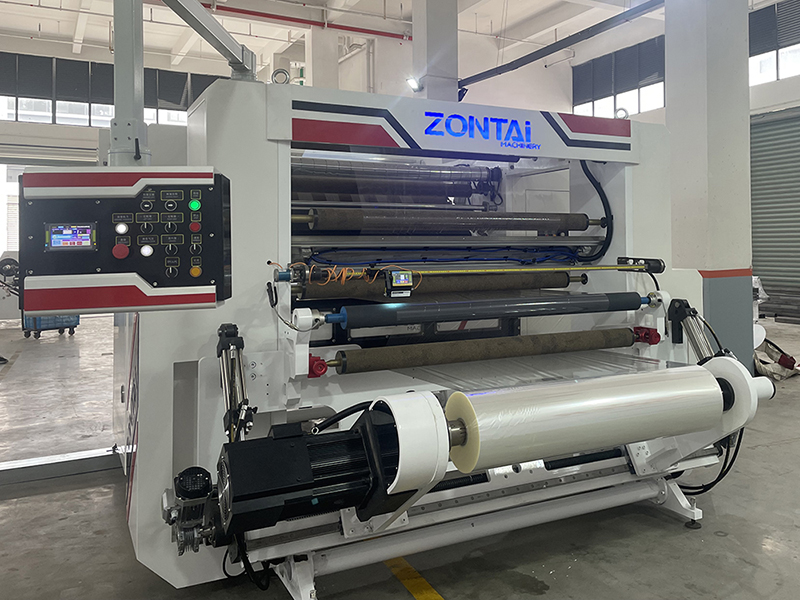

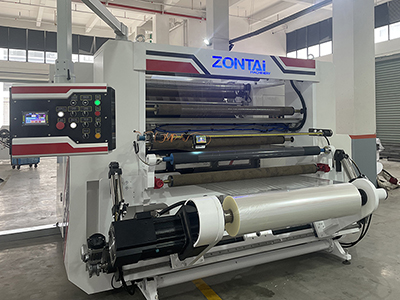

  • Unwinder unit Unwinder unit

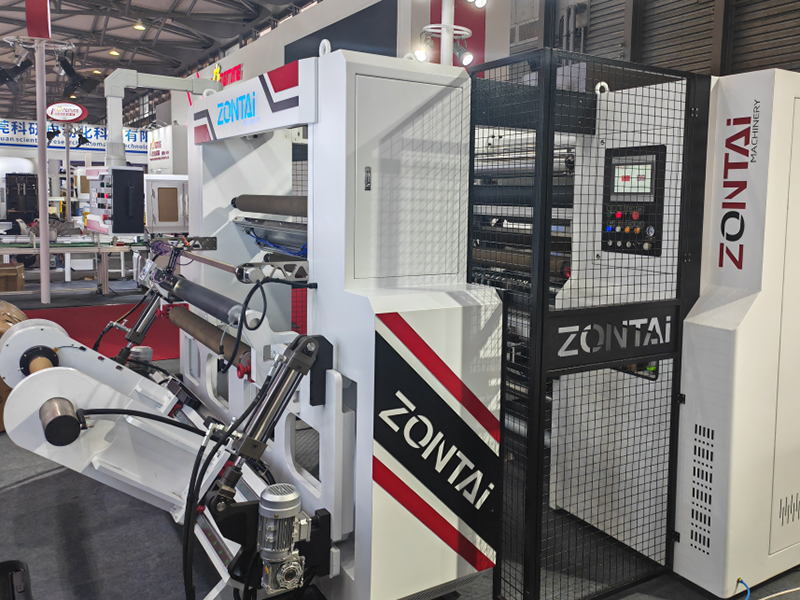

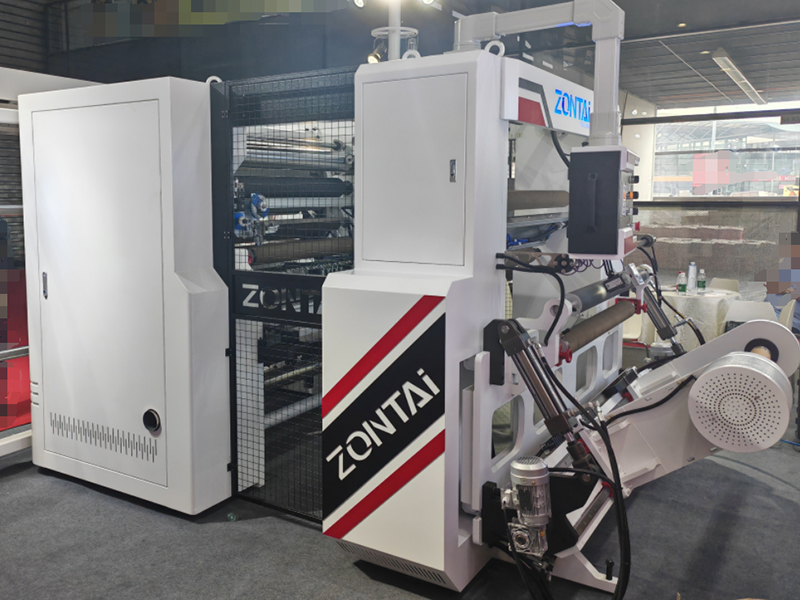

  • Machine side view Machine side view
  • Machine side view Machine side view

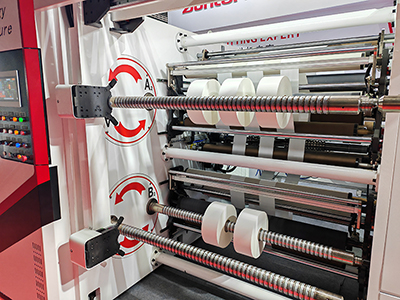

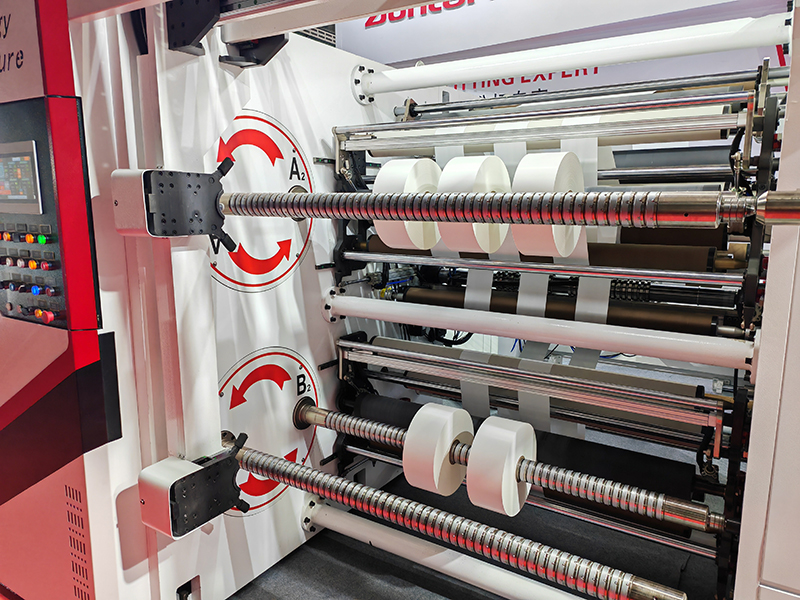

  • Double turret rewinder (4 axes and changeover system)Double turret rewinder (4 axes and changeover system)

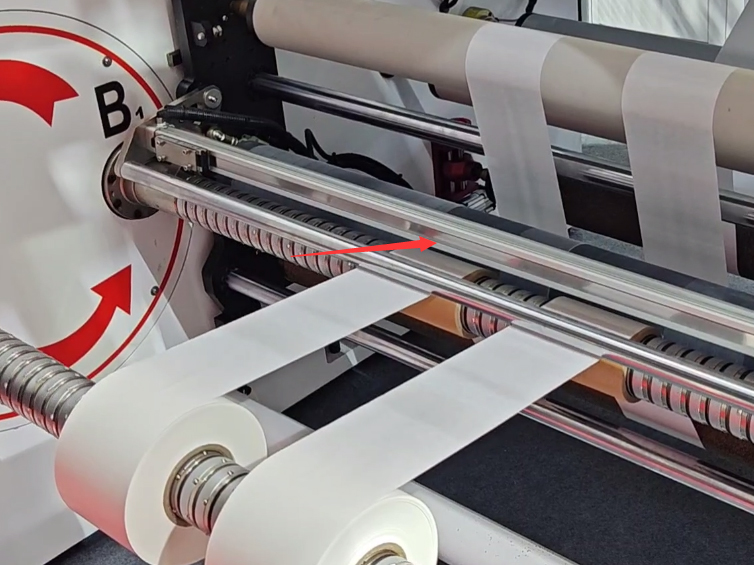

  • Automatic fly knive cutting Automatic fly knive cutting

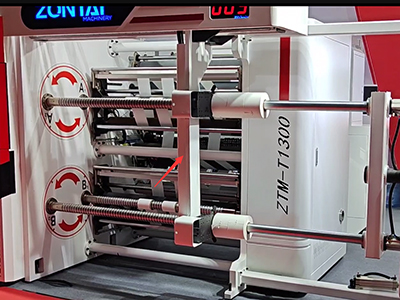

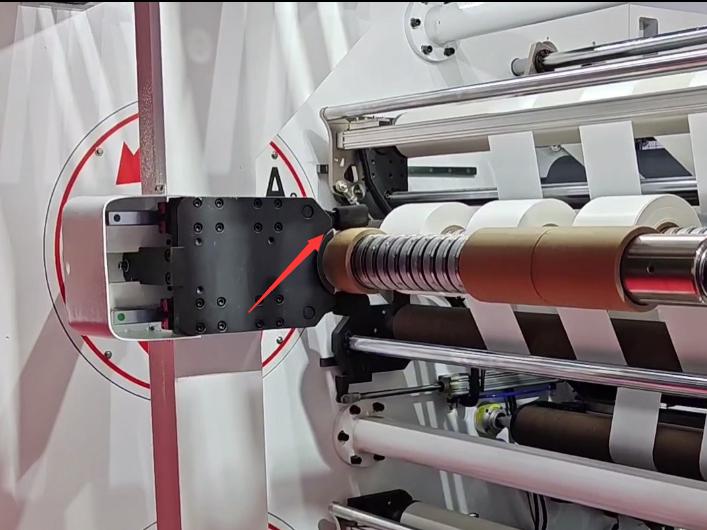

  • Automatic pushing device for finished roll Automatic pushing device for finished roll

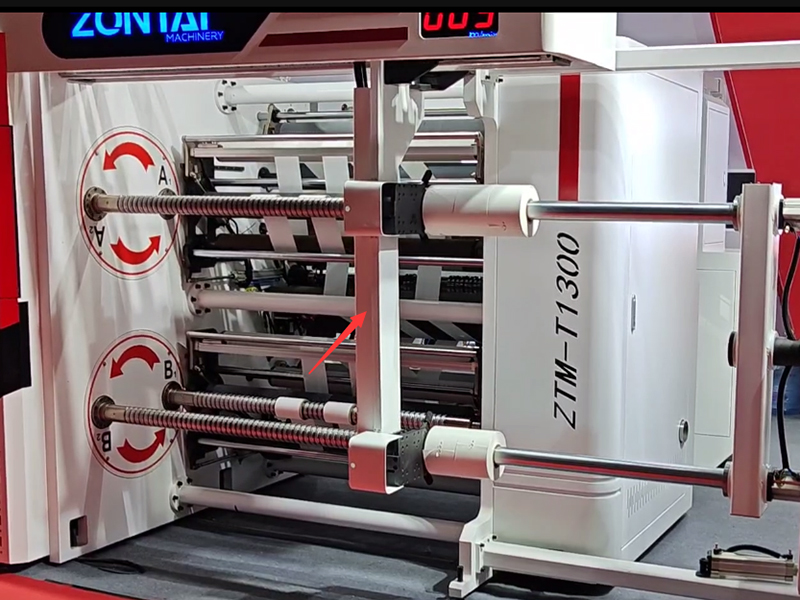

  • Automatic paper core moving system (optional device) Automatic paper core moving system (optional device)

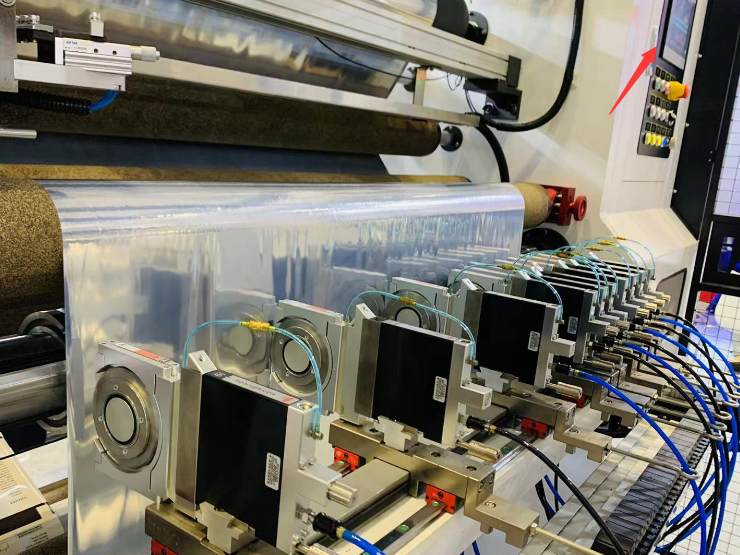

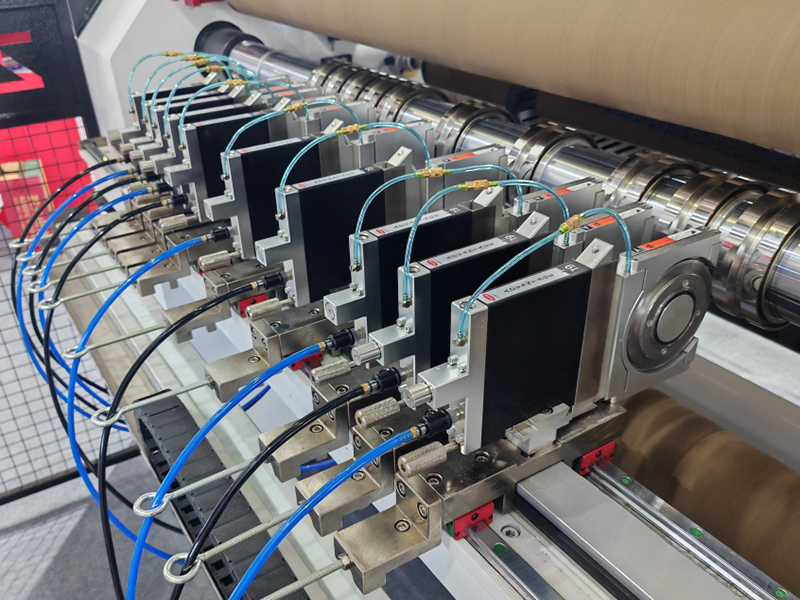

  • Pneumatic circular knives (USA Maxcess Tidland brand) (optional device) Pneumatic circular knives (USA Maxcess Tidland brand) (optional device)
  • Unwinder with motor + inverter control (Danma Taiwan+Rexroth Germany) (optional device) Unwinder with motor + inverter control (Danma Taiwan+Rexroth Germany) (optional device)

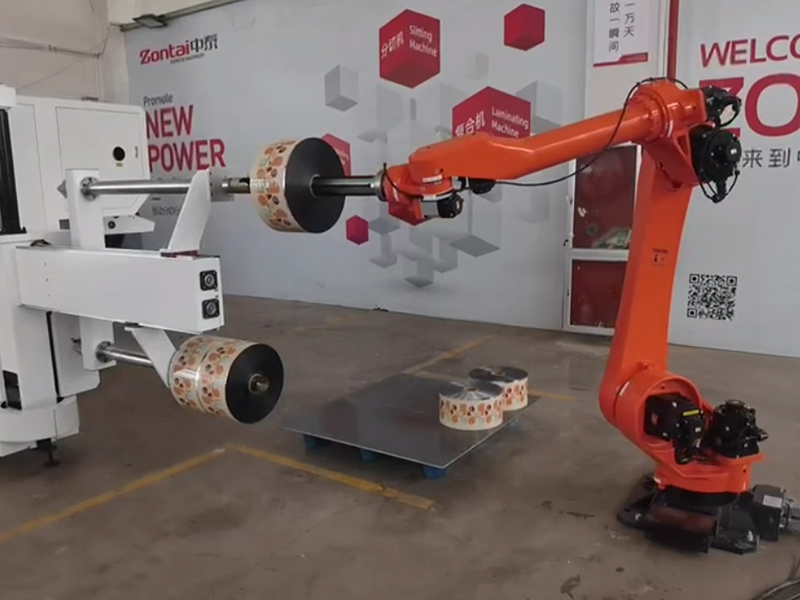

  • Automatic robot arm (used to move the finished roll from machine to a pallet) (optional device) Automatic robot arm (used to move the finished roll from machine to a pallet) (optional device)
  • Automatic knive moving system (optional device) Automatic knive moving system (optional device)
Features
  • Unwinding width can be automatically adjusted due to the use of pneumatic cylinder;
  • Hydraulic lifting system is adopted for automatic loading of mother rolls;
  • Shaftless unwind unit with core size of 3 or 6 inches;
  • Pneumatic splice table;
  • Machine side view;
  • Unwind station with closed-loop tension control;
  • Pneumatic circular knives (USA Maxcess Tidland brand) (optional device);
  • Automatic razor knife adjusting system (optional);
  • Machine side view;
  • Double turret rewinder (4 axes and changeover system) system;
  • Automatic nip roll control system at rewind station;
  • Automatic finished roll pushing and unloading system;
  • Protection system for rewind shafts during roll changeover;
