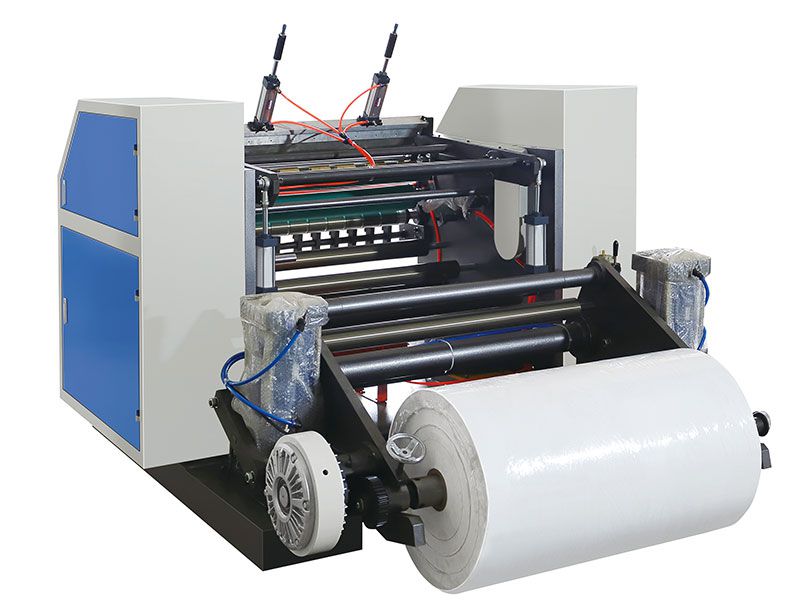

Automatic Thermal Paper Slitting and Rewinding Machine, ZTM-900

Suitable for slitting and rewinding various paper rolls

Automatic Thermal Paper Slitting and Rewinding Machine, ZTM-900
Video

Automatic Thermal Paper Slitting and Rewinding Machine, ZTM-900

Suitable for slitting and rewinding various paper rolls

ZTM-900 automatic slitting and rewinding machine is mainly designed for slitting thermal paper rolls, bond paper rolls, cash register rolls, fax paper rolls, POS paper rolls, ATM paper rolls, and other small ribbon rolls.

Inquiry
Specifications
Model ZTM-900
Max. web width 900mm
Max. unwind diameter 1000mm
Max. rewind diameter 150mm
Max. unwinding speed 150m/min
Unwind shaft 3″ pneumatic air expanding shaft
Machine weight 1000kg
Voltage 3 Phase 380V 50HZ
Rewind Shaft 0.5'', 1'' or coreless (8mm)
Slitting width 56mm and 79mm
Overall dimensions 2150×1950×1700mm
Main Configurations
  • Equipped with Panasonic PLC and Weinview touch screen, all the parameter are displayed on the monitor. Operator simply needs to set the material roll diameter and thickness, the PLC will give appropriate parameters for the machine to run automatically.
  • Unwind unit is fitted with an automatic tension control system.
  • Meter counter is available for operator to set data, enabling the machine to stop when the length reaches the preset value and alarm to inform the operator.
  • Synchronous belt is utilized to avoid the overlap problem.
  • Frequency inverter is adopted for main inverter motor driving, and the speed can be displayed on the control panel, the frequency inverter motor is of 2.2kW.
  • All transmission rollers have been treated by dynamic/static balancing.
  • Equipped with emergency switch.
  • All the electric components are compliant with CE certification.
Unwinding Section
  • 3″ air expanding shaft.
  • Automatic pneumatic lifting system is configured for heavy material roll loading.
  • 10 kg/m2 automatic braking device is used for material feeding tension control.
Unwind Tension Control
  • Automatic tension control (roll diameter calculating type) is used to maintain a constant tension.
  • Operator only needs to preset unwind core size and initial unwind diameter through the touch screen, and the PLC system performs automatic control for easy operation.
Automatic Tucker
  • The automatic tucker is used to load material edges onto winding cores automatically, eliminating the need for paste in the tape, providing easy operating and improved process efficiency.
Red Line
  • Operator can set red line length via the touch screen, to indicate maximum load
Rewind Section
  • This machine comes with 0.5′′ rewinding shafts, we can also offer upon request.
Waste Edge Trimming
  • The slitting machine has a waste edge trim device. The waste edge is trimmed on both sides.
  • Air blowing system is available for waste material edge trimmer.
Optional device
  • Circular knife (upper knife)
  • Circular knife (lower knife)
  • Circular knife full set
  • Automatic core loader
Get in Touch
Our Products
  • Slitter Rewinders
    1. Jumbo Roll Slitter Rewinder
    2. Servo Driven Slitter Rewinder
    3. Shelf Type Film Slitting Machine
    4. Self-Adhesive Paper/Film Slitting Rewinding Machine
    5. Turret Slitter Rewinder
    6. ZTM-T Unibody Type High Speed Turret Slitter Rewinder
    7. Narrow Web Slitter Rewinder
    8. Economical Slitter Rewinder
    9. Paper Roll Slitting Rewinding Machine
    10. Single-Shaft Slitter Rewinder
    11. Paper Slitter Rewinder
    12. Vertical Slitting Rewinding Machine
    13. Automatic Horizontal Slitter Rewinder
    14. Automatic Vertical Slitting Rewinding Machine
    15. Surface Slitter Rewinder
    16. Automatic Thermal Paper Slitting and Rewinding Machine
    17. Rewinder Machine
  • Shrink Sleeve Seaming Machines
    1. Moldless Shrink Sleeve Seaming Machine
    2. Shrink Sleeve Seaming Machine
  • Inspection Rewinding Machines
    1. Servo Driven Inspection and Doctoring Rewinder
    2. Shrink Sleeve Inspection Machine
    3. Inspection Rewinder
  • Solventless Laminator
Other Products

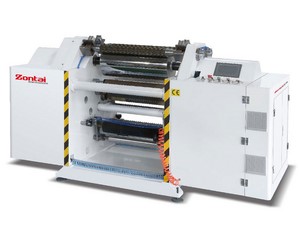

Surface Slitter Rewinder
