Our SEN series high-speed solventless laminator is mainly used for laminating various films, paper and aluminum foils by using solvent-free adhesives. This solventless lamination machine is an ideal solution for flexible packaging manufacturers to produce stand up pouches, zipper bags, window bags, etc.
| Model | | |
| Direction of printing material | Left to right | |
| Mechanical speed | 580m/min | 580m/min |
| Max. laminating speed | 500m/min | 500m/min |
| (The maximum production speed is influenced by the quality and properties of the substrate and binder used) | ||
| Max. coating width | 1050mm | 1350mm |
| Max. roll width | 1050mm | 1350mm |
| Min. roll width | 400mm | 400mm |
| Unwind paper core | 3″=76mm and 6″=152mm | 3″=76mm and 6″=152mm |
| Rewind paper core | 3″=76mm and 6″=152mm | 3″=76mm and 6″=152mm |
| Unwind tension range | 3--40kg(400N) | 3--40kg(400N) |
| Rewind tension range | 4--55kg(550N) | 4--55kg(550N) |
| Rewind tape tension setting range | 100%--60% | |
| Max. unwind/rewind diameter | Ø800mm | Ø800mm |
| Coating range | 0.8-3g/㎡ | 0.8-3g/㎡ |
| Power | 52kw | 58kw |
| Weight | 15000kg | 18000kg |
| Dimensions | 5100×3000×2400mm | 5100×3300×2400mm |

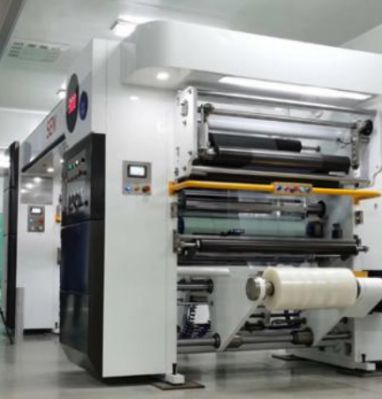

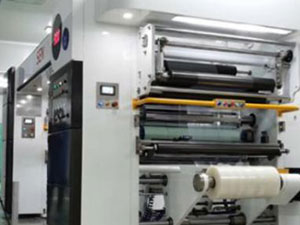

Solventless laminator with servo motor
First unwinder
Shaftless unwind stand with pneumatic material loading

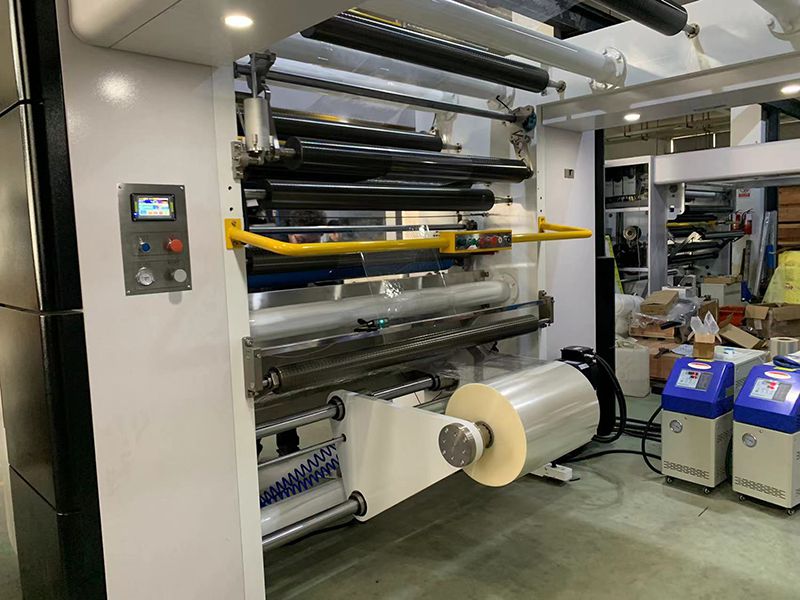

Second unwind unit

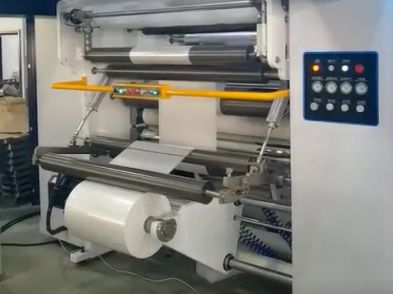

Rewinder unit

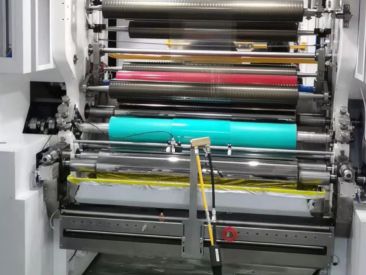

Coating unit

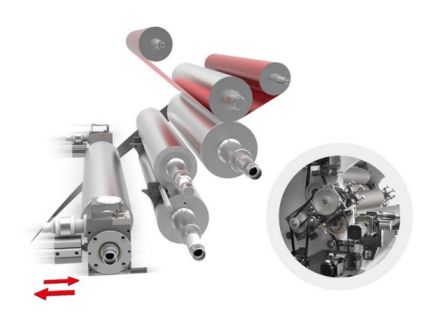

5 roller coating unit

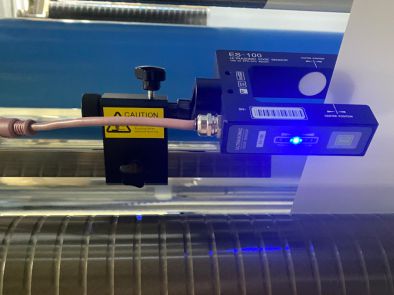

EPC web guiding system
Third unwind unit (optional, suitable for metalized film/aluminum foil, for half-half roll laminating)

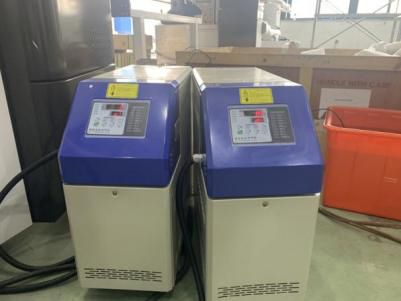

Water circulating mould temperature control unit (3 sets)

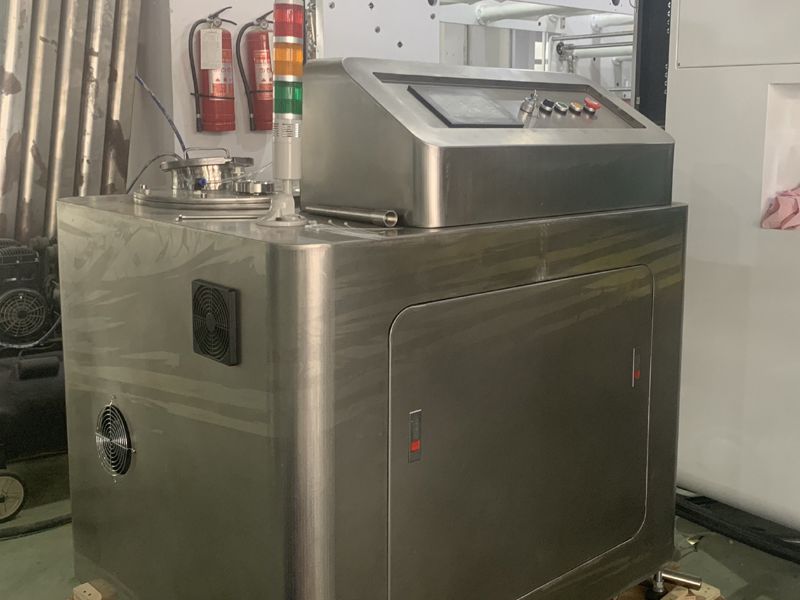

A+B glue mixer

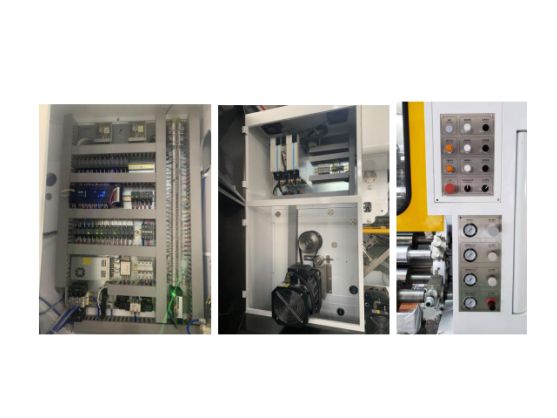

Electrical parts, motors and control panel from reliable brands
