Shrink Sleeve Inspection Machine, ZJP-300
Shrink Sleeve Inspection Machine, ZJP-300

Shrink Sleeve Inspection Machine, ZJP-300

The ZJP-300 shrink sleeve inspection machine is a rewinding machine designed specifically for inspecting PVC/PET shrink sleeve labels or roll bag packaging materials. This shrink sleeve inspector is used after seaming (glue sealing) process to check the web length, and inspect the surface, printing and sealing quality through the use of strobe light and sensors.

Inquiry
Specifications
Model ZJP-300
Max. unwinding width 300mm
Mechanical speed 0-300m/min
Max. rewinding diameter Ø700mm
Max. unwinding diameter Ø700mm
Web guiding precision ≤0.1mm
Power supply voltage 380V/50HZ
Total power 3.5kW
Machine weight 870kg
Overall dimensions (L×W×H) 2800×1200×1600mm
Details

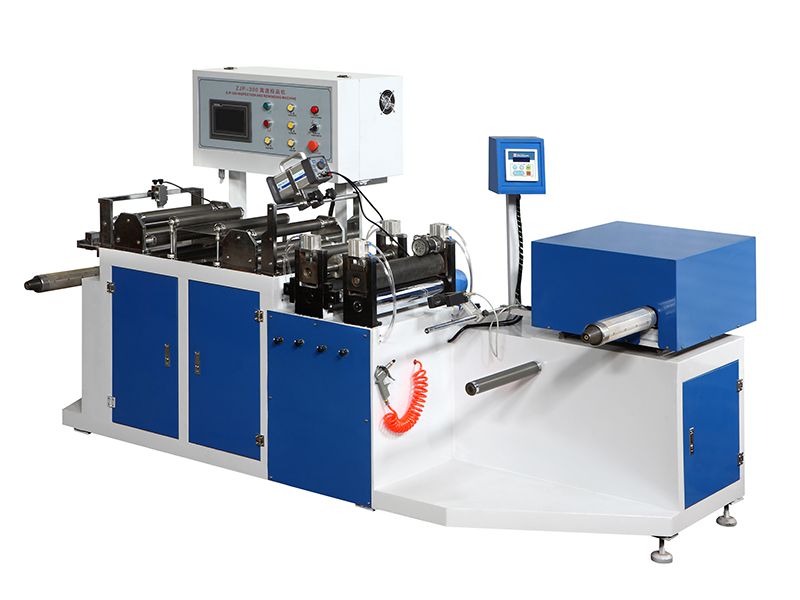

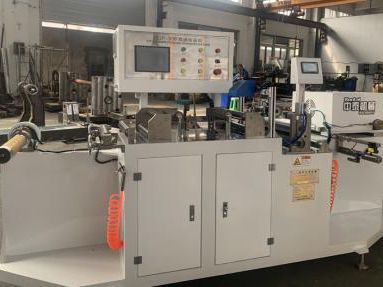

  • Entire machine view Entire machine view

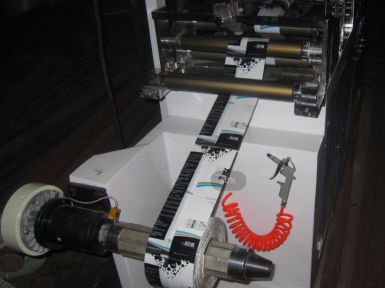

  • Unwind unit with 3-inch air shaft Unwind unit with 3-inch air shaft

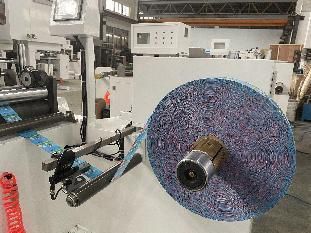

  • Rewind unit with 3-inch air shaft and EPC device Rewind unit with 3-inch air shaft and EPC device

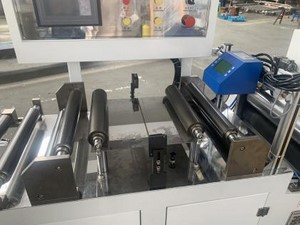

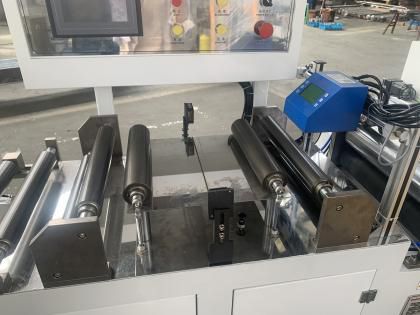

  • EPC edge position control EPC edge position control
  • Inspection strobe light Inspection strobe light

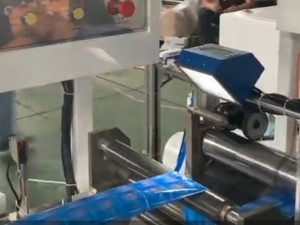

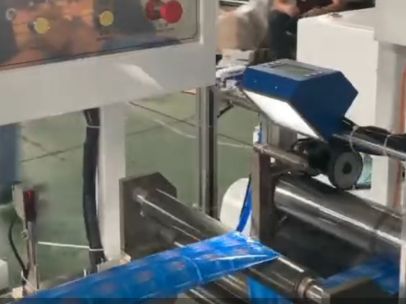

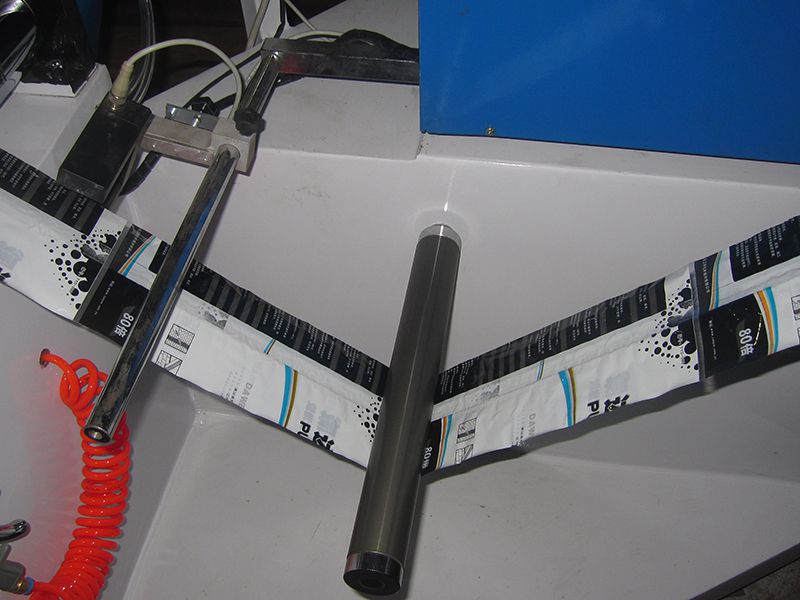

  • 2 sensors for inspecting sealing effect 2 sensors for inspecting sealing effect
Get in Touch
Other Products

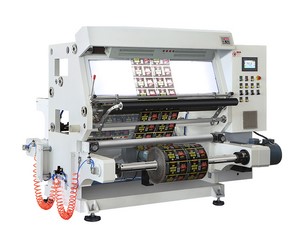

Inspection Rewinder

Inspection Rewinder

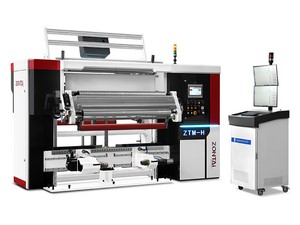

Servo Driven Inspection and Doctoring Rewinder

Servo Driven Inspection and Doctoring Rewinder

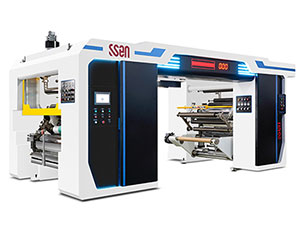

Solventless Laminator

Solventless Laminator

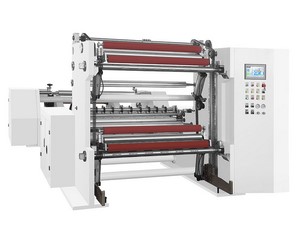

Paper Slitter Rewinder

Paper Slitter Rewinder

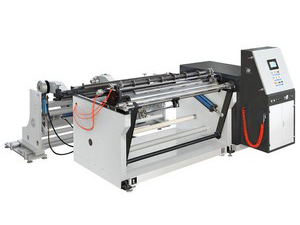

Single-Shaft Slitter Rewinder

Single-Shaft Slitter Rewinder

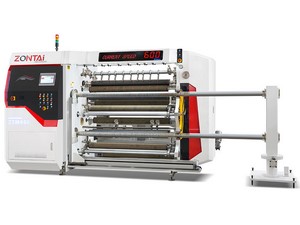

Servo Driven Slitter Rewinder

Servo Driven Slitter Rewinder

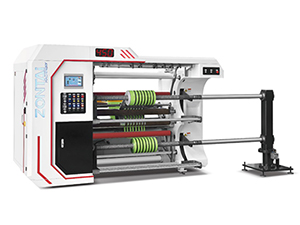

Economical Slitter Rewinder

Economical Slitter Rewinder

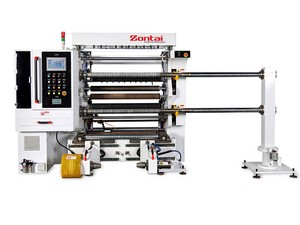

Vertical Slitting Rewinding Machine
