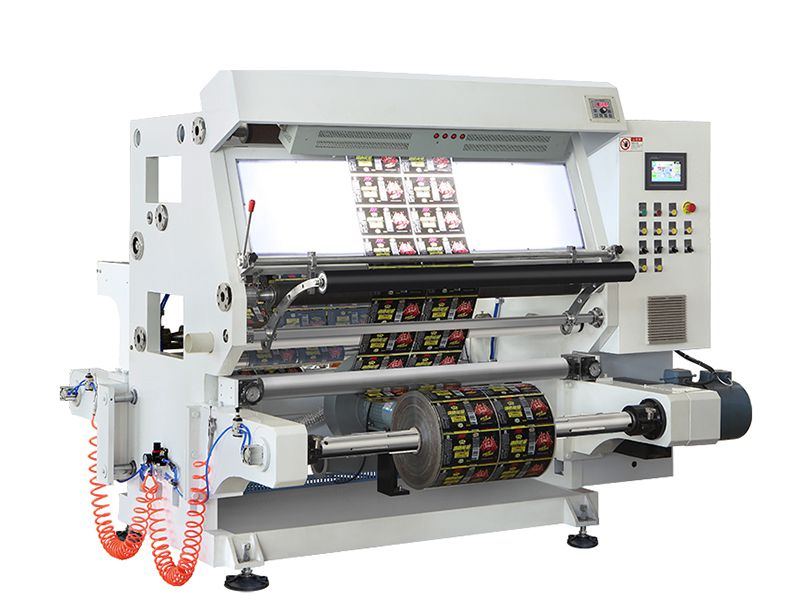

Inspection Rewinder, ZTM-E

The ZTM-E inspection rewinder versatilely detects surface defects or printing mistakes, and rewinds rolls of various materials such as BOPP, PET, CPP, PVC, aluminum foil and paper.

Inquiry
Specifications
Model ZTM-E
Web width 1300mm
Unwinding diameter Ø800mm
Paper core diameter Ø76mm
Mechanical speed 300m/min
Width of finished roll 30-1300mm
Precision 0.5mm
Weight 2500kg
Total power 15kW
Overall Dimensions (L×W×H) 1735×2800×1800mm
Details

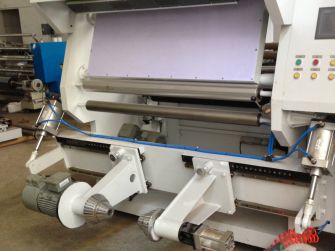

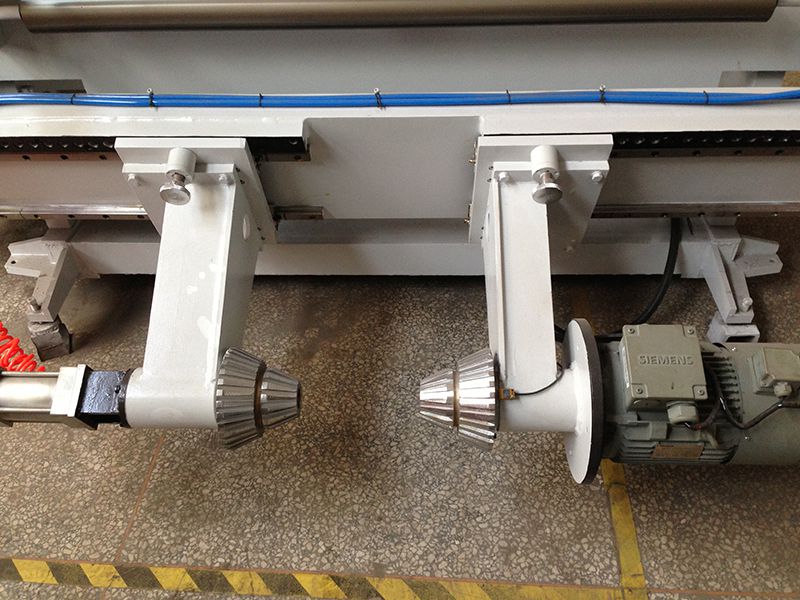

  • Shaftless unwinder Shaftless unwinder
  • Rewind unit with air shaft Rewind unit with air shaft

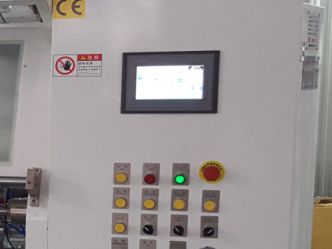

  • PLC system PLC system

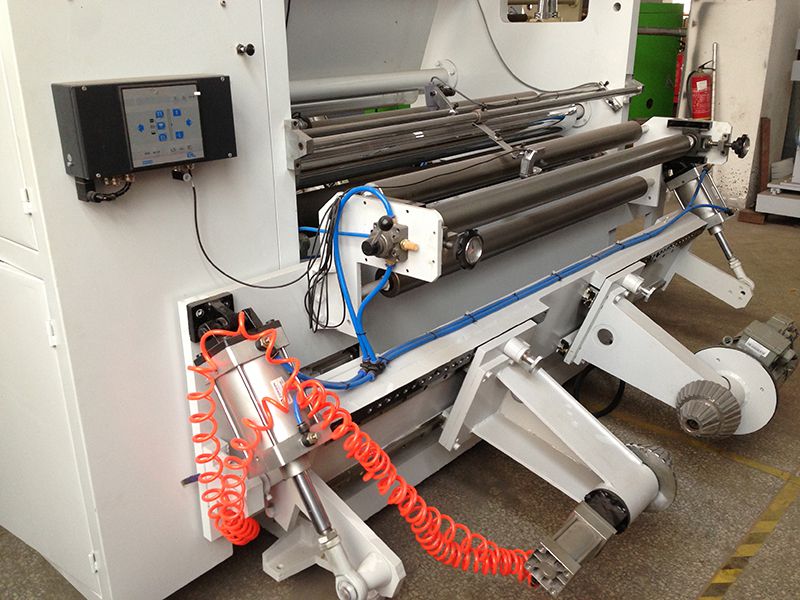

  • EPC control EPC control
  • Yaskawa servo motor Yaskawa servo motor

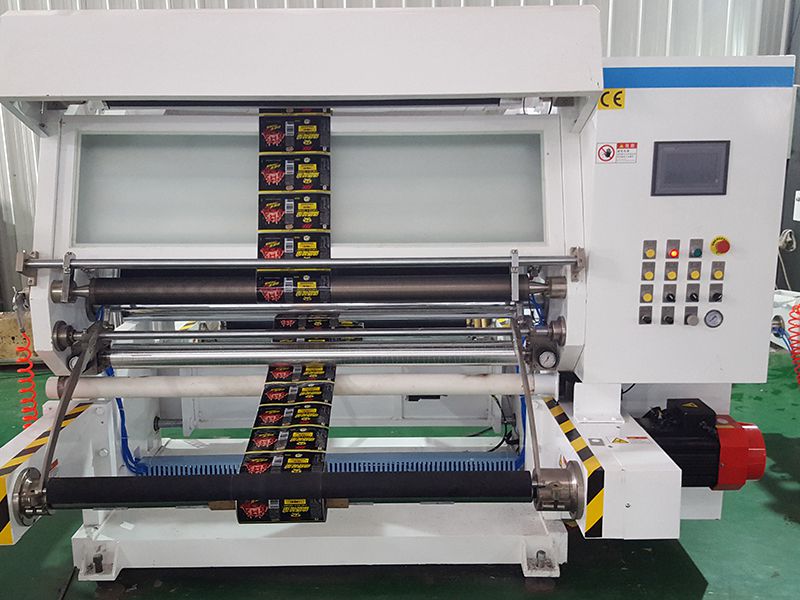

  • Strobe light detection system Strobe light detection system
Features
  • Imported PLC and touch screen control panel ensures 100% inspection with easy operation.
  • Unwind unit is driven by vector control frequency inverter, and the PLC control automatically calculates the roll diameter to keep the unwind tension control constant.
  • Web traction control is managed by vector control frequency inverter, maintaining a constant speed.
  • Inspection strobe light is adopted to assure the printing quality, allowing operator to manually stop the machine when any defect is found.
