Vertical Slitting Rewinding Machine, ZTM-DT

Suitable for handling paper, kraft paper, adhesive paper, films, foils, labels and laminates

Vertical Slitting Rewinding Machine, ZTM-DT
Video

Vertical Slitting Rewinding Machine, ZTM-DT

Suitable for handling paper, kraft paper, adhesive paper, films, foils, labels and laminates

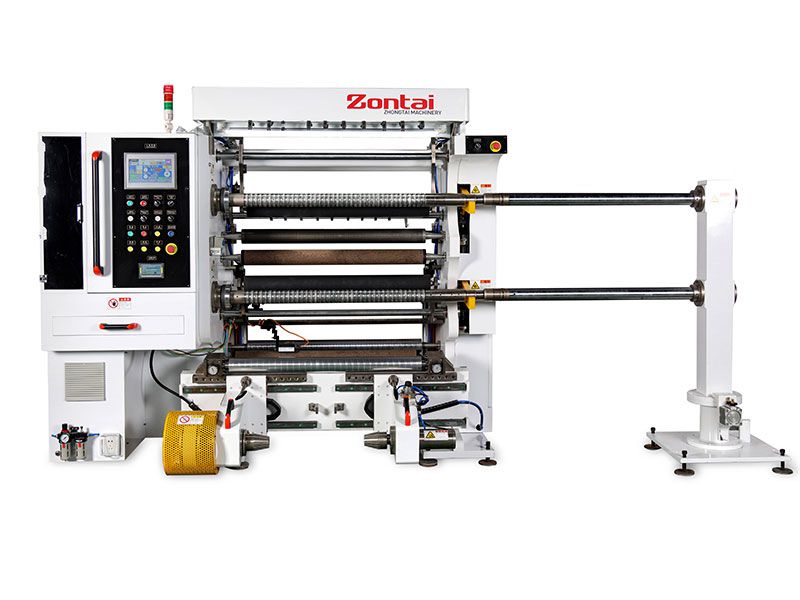

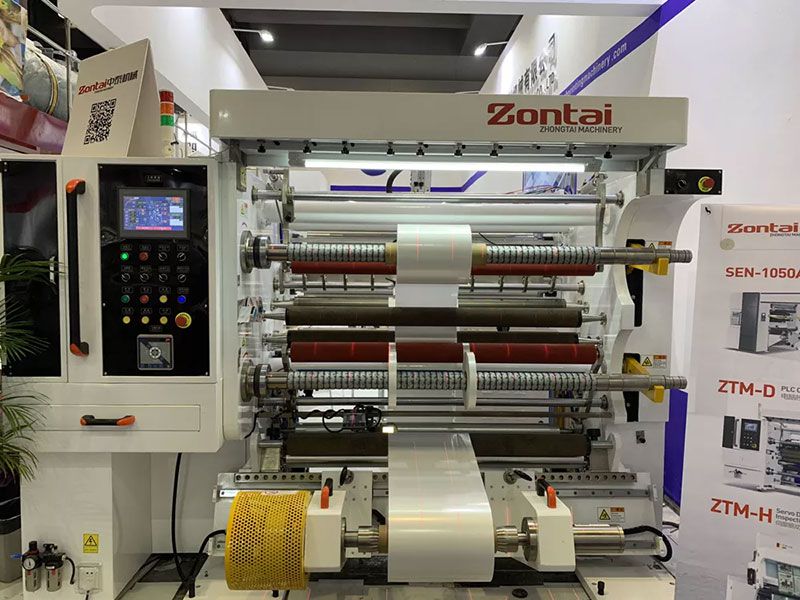

The ZTM-DT vertical slitting rewinding machine is built with structure of unwind and rewind at the same side. It works at high speeds of up to 400m/min to cut a large roll of various materials to different widths, and then rewinds the material to form several narrower rolls. These vertical slitter rewinders are ideal for converting PET, OPP, CPP, PE, PS, PVC, cellophane, anti-counterfeit labels, optical films, foils, laminates, coated paper and printed substrates.

Inquiry
Specifications
Model ZTM-DT1300 ZTM-DT1600
Web width 1300mm 1600mm
Diameter of unwind Ø800mm Ø800mm
Diameter of rewind Ø450mm Ø450mm
Paper core size for unwind 3″and 6″ 3″and 6″
Paper core size for rewind 3″ 3″
Slitting speed 10-400m/min (for different materials, speed will be different) 10-400m/min (for different materials, speed will be different)
Substrate thickness 10-100micron 10-100micron
Tolerance of EPC ≤0.1mm ≤0.1mm
Min. slitting width 50mm 50mm
Total power 12kW 15kW
Machine weight 3600kg 3800kg
Overall dimensions 1650mm×3800mm×1830mm 1650mm×4300mm×1830mm
Details

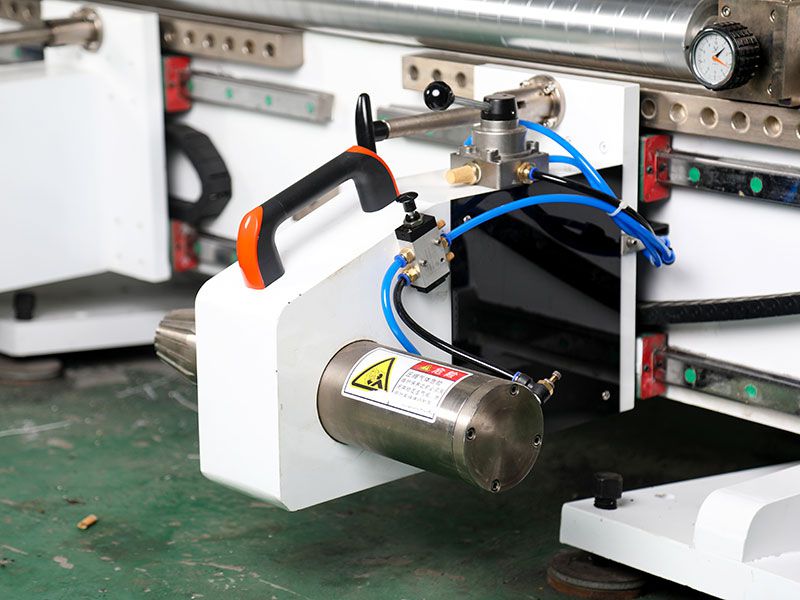

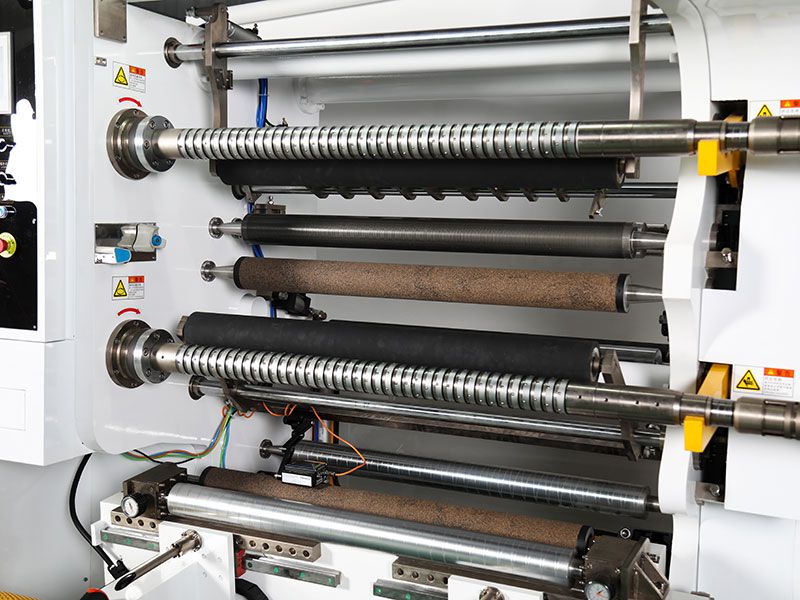

  • Pneumatic differential friction shaft (3 inches) Pneumatic differential friction shaft (3 inches)

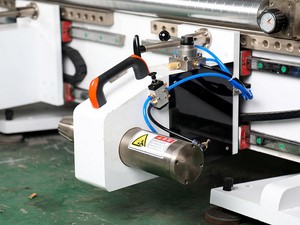

  • EPC device EPC device
  • Shaftless unwind unit Shaftless unwind unit

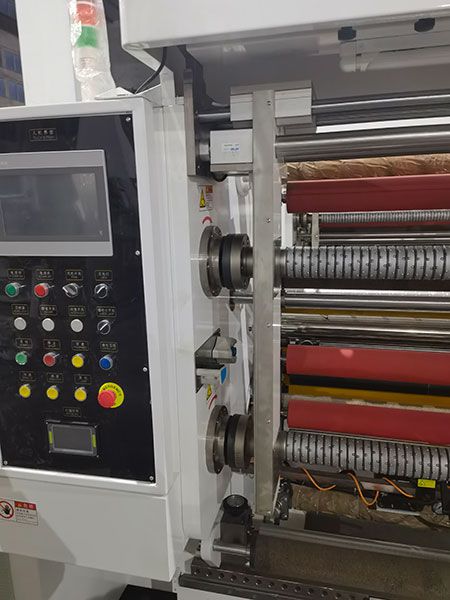

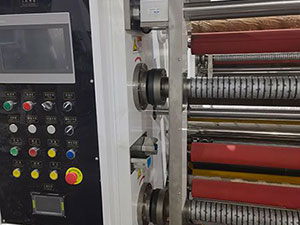

  • PLC control panel PLC control panel

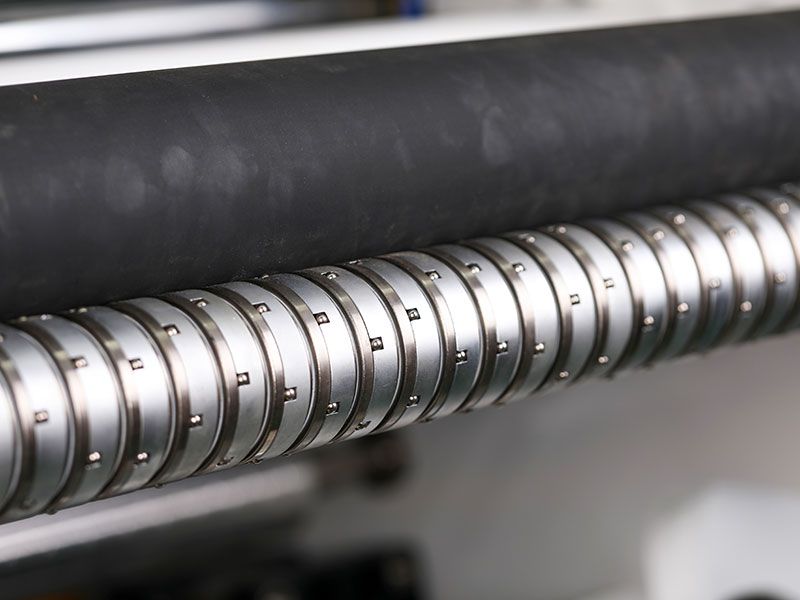

  • Air shaft for rewinder Air shaft for rewinder
  • Razor blades for film slitting Razor blades for film slitting
  • Unwind and rewind in one side Unwind and rewind in one side
  • Automatic finished roll pushing device (optional) Automatic finished roll pushing device (optional)

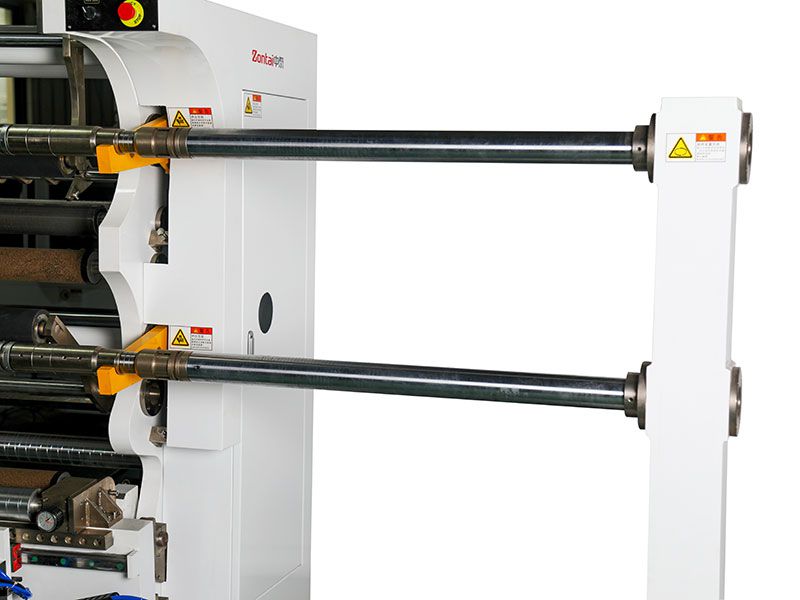

  • Finished rolls holding frame Finished rolls holding frame
Features

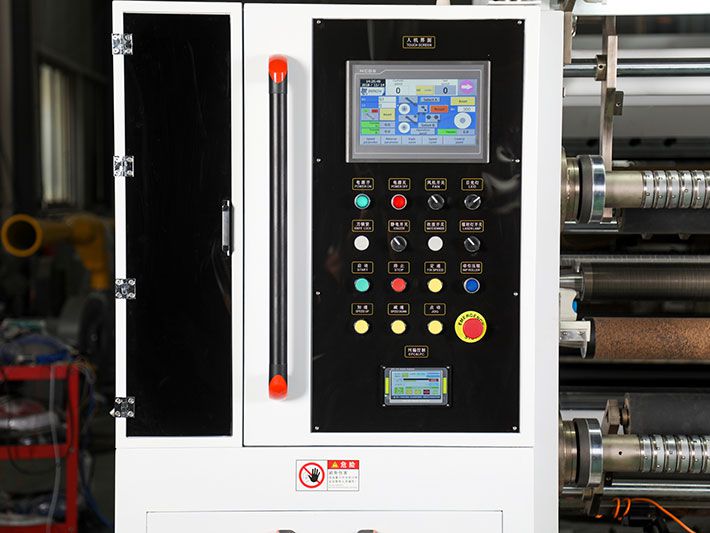

  • The entire slitter rewinder machine is controlled by PLC system with user-friendly touch screen HMI, and the vertical structure of unwind and rewind at the same side makes the operation easier.
  • Unwind station uses magnetic powder brake from Taiwan brand, the web tension is automatically controlled by load cell and PLC system.
  • One servo motor drives the traction roller, maintaining linear velocity at a steady state while enabling the unwinding tension to be efficiently isolated from the rewinding tension.
  • Rewind station adopts two servo motors, and rewind tension control can be achieved by PLC automatic compensation of roll diameter change.
  • The slitting rewinding machine is equipped with robot arm for automatic pushing finished rolls.
  • Unwind station has a hydraulic lifting mechanism for automatic loading of mother rolls, thus greatly saving labor intensity and reducing working time.

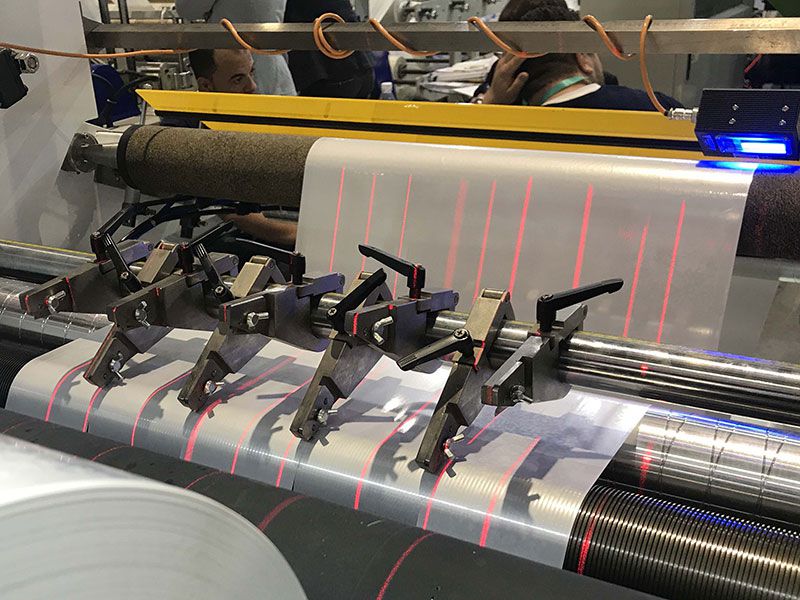

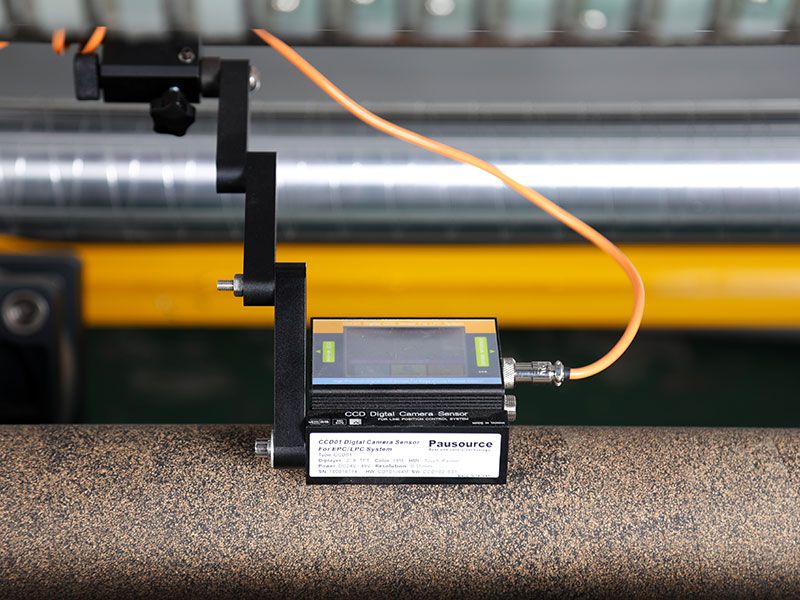

  • EPC & LPC web guide systems ensure accurate slitting of materials, with smooth cut edge.
