Automatic Horizontal Slitter Rewinder, ZWQ

Suitable for converting film, aluminum foil and kraft paper

Automatic Horizontal Slitter Rewinder, ZWQ

Automatic Horizontal Slitter Rewinder, ZWQ

Suitable for converting film, aluminum foil and kraft paper

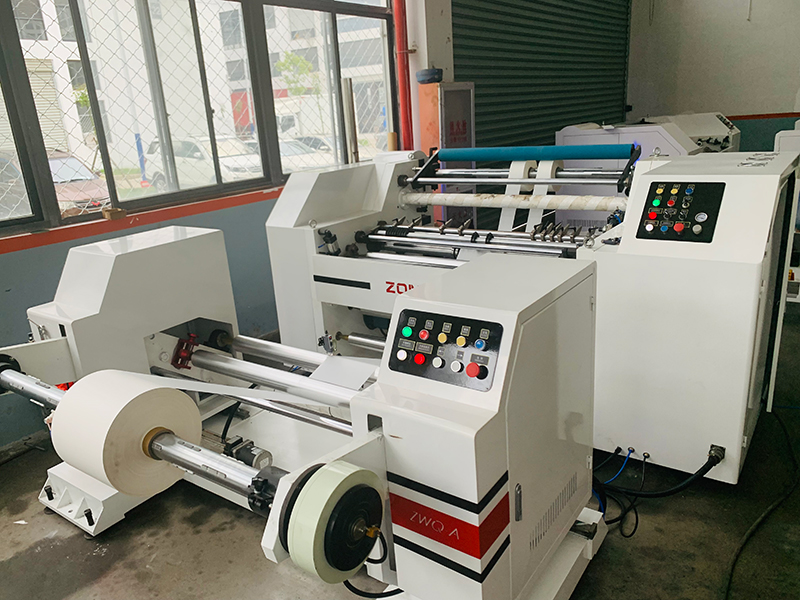

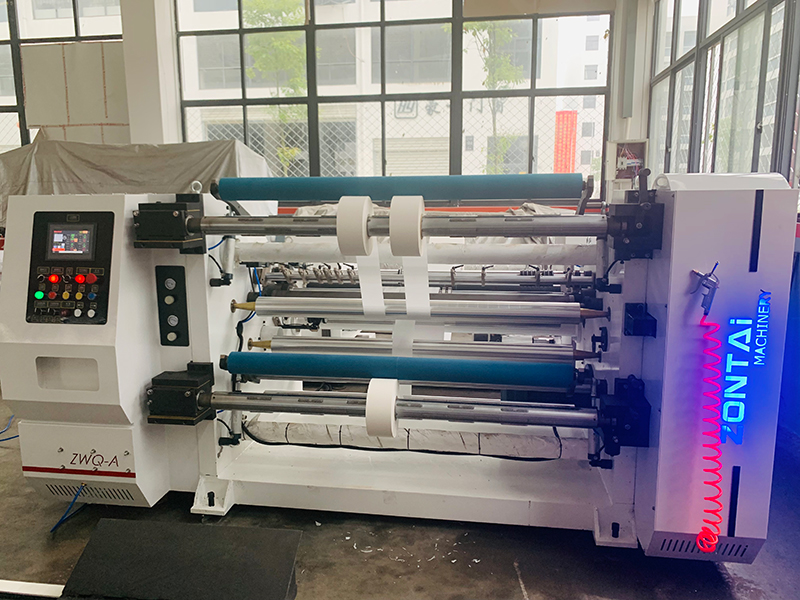

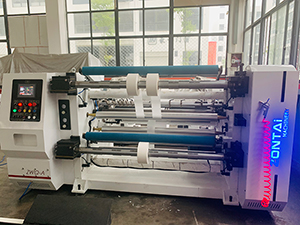

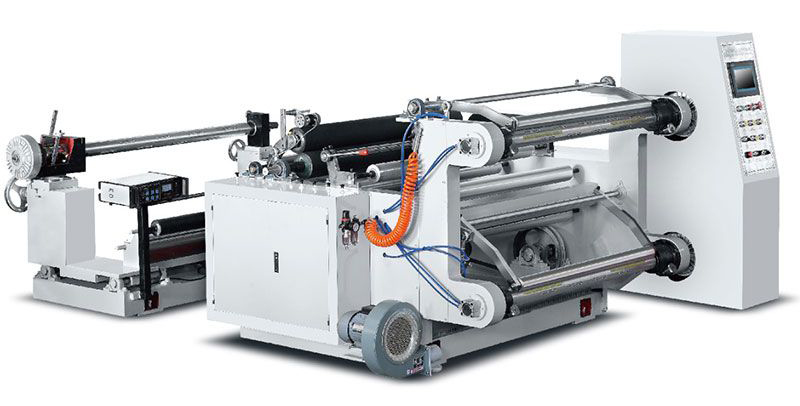

Our ZWQ automatic horizontal slitter rewinder slits and rewinds a mother roll of various materials including BOPP, PET, CPP, PVC, aluminum foil and kraft paper into several narrower widths, with speed of up to 180 meters per minute.

Inquiry
Specifications
Model ZWQ-1000 ZWQ-1300 ZWQ-1600
Max. width of mother roll 1000MM 1300mm 1600mm
Max. diameter of mother roll 1200mm 1200mm 1200mm
Width of finished roll 30-1000mm 30-1300mm 30-1600mm
Slitting and rewinding speed 5-180m/min 5-180m/min 5-180m/min
Motor power 3.7kW 5.5kW 7.5kW
Details
  • Unwind stand with air shaft for mother roll loading, magnetic powder brake for unwind tension control Unwind stand with air shaft for mother roll loading, magnetic powder brake for unwind tension control
  • Automatic EPC for unwinding Automatic EPC for unwinding

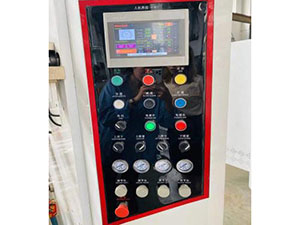

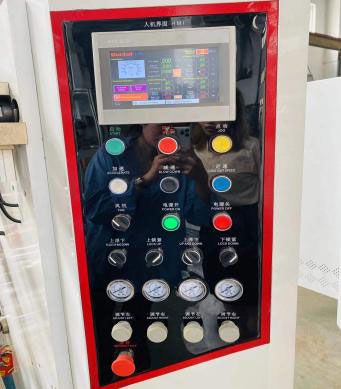

  • PLC with touch screen PLC with touch screen
  • Rewind stand with air shaft, magnetic powder clutch for rewind tension control Rewind stand with air shaft, magnetic powder clutch for rewind tension control

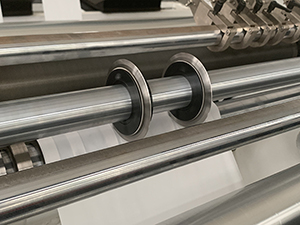

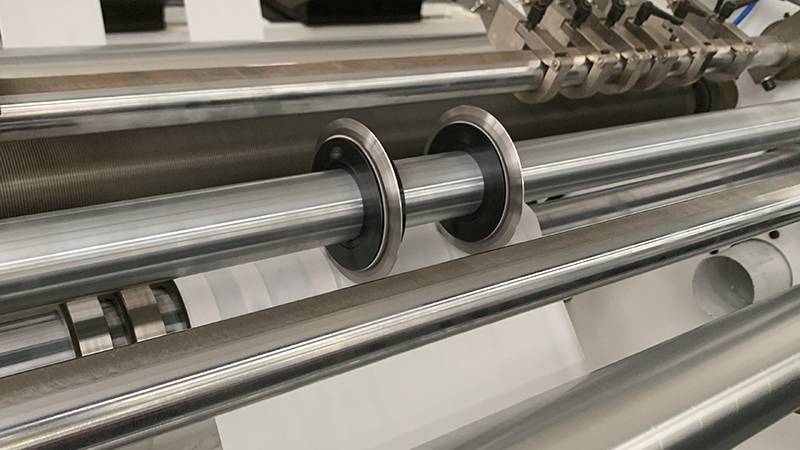

  • Circular knife for paper slitting Circular knife for paper slitting

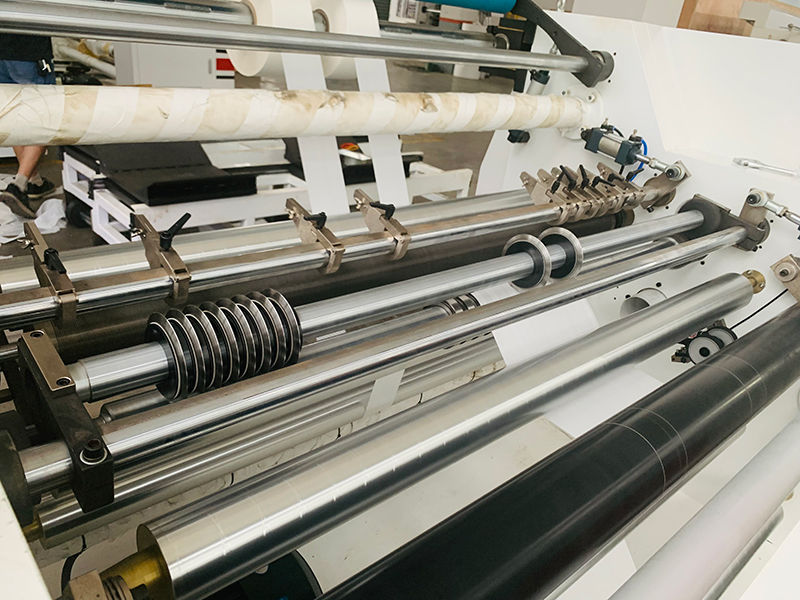

  • Razor knife and circular knife are both available Razor knife and circular knife are both available
Features
  • Vector motor with inverter control;
  • Independent control panel for additional flexibility and ease of use;

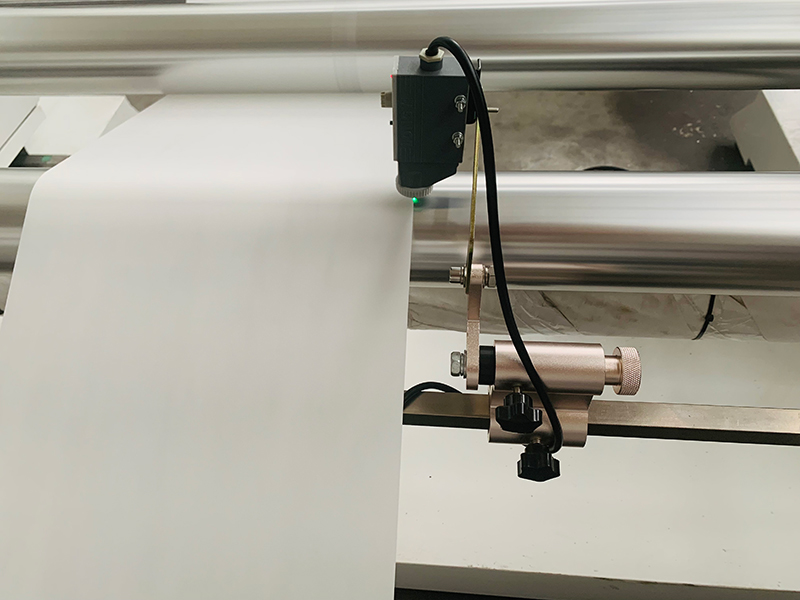

  • Automatic EPC web guide system for unwind edge control, photocell for the detection of web edge and print marks;
  • Air shaft at unwind station for mother roll loading, magnetic powder brake for unwind tension control;
  • Air shaft at rewind station, magnetic powder clutch for rewind tension control;
  • Fan-based trim waste discharge conveying system;
  • Automatic length measuring device;
  • Nip roll at rewind station ensures the surface of finished roll more uniform;
  • Razor blades and circular knives are both available;
Optional
  • PLC with touch screen;
  • Automatic tension control;
  • 6-inch air shaft;
  • Friction shaft for rewind station;
