Self-Adhesive Paper/Film Slitting Rewinding Machine, ZTM-K

Suitable for various kinds of paper and film

Self-Adhesive Paper/Film Slitting Rewinding Machine, ZTM-K
Video

Self-Adhesive Paper/Film Slitting Rewinding Machine, ZTM-K

Suitable for various kinds of paper and film

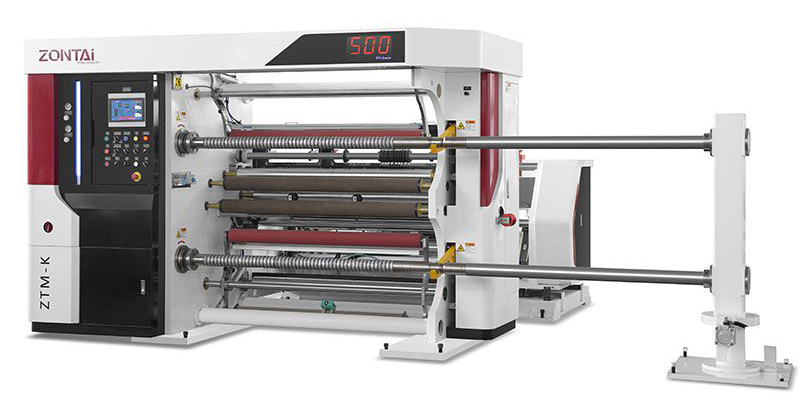

The ZTM-K servo driven slitting rewinding machine adopts three servo motors, it is suitable for processing rolls of both paper and film with a high speed of up to 500 meters per minute. This high speed slitter rewinder machine is capable of slitting and rewinding a wide variety of substrates, such as cellophane, PET, OPP, CPP, PS, PVC, PE, optical film, as well as unprinted and printed paper with a thickness range of 10-500 microns.

Inquiry
ZTM-K1300 High Speed Slitting Machine for Film
ZTM-K1300 High Speed Slitting Machine for Paper
ZTM-K Series Automatic Circular Knives Moving System

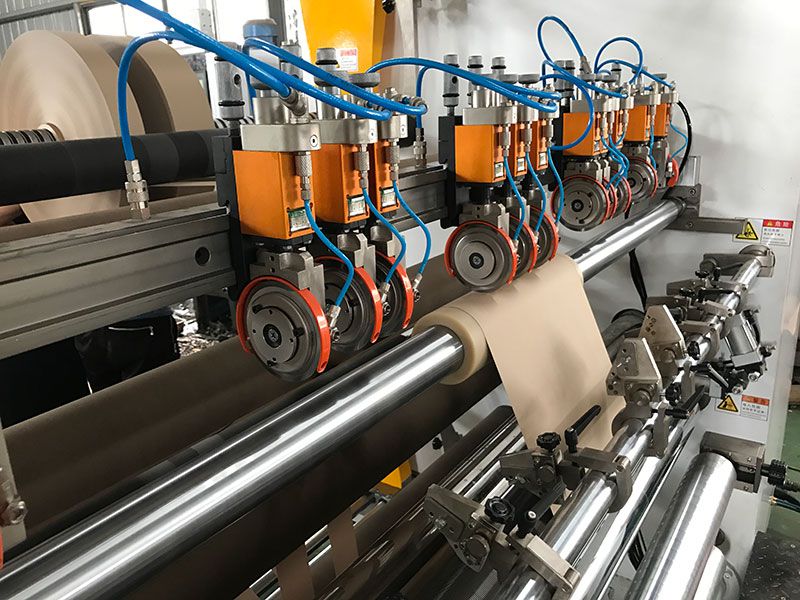

ZTM-K Series Automatic Razor Knives Moving System
Specifications
Model ZTM-K 1300 ZTM-K 1600
Web width 1300mm 1600mm
Max. unwind diameter 1200mm 1200mm
Max. rewind diameter 600mm 600mm
Paper core diameter 76mm 76mm
Mechanical speed 10-500m/min 10-500m/min
Tolerance of EPC 0.1mm 0.1mm
Min. slitting width 50mm 50mm
Total power 15kW 18kW
Machine weight 7500kg 8000kg
Overall dimensions 4300mm×4500mm×2100mm 4300mm×4800mm×2100mm
Details

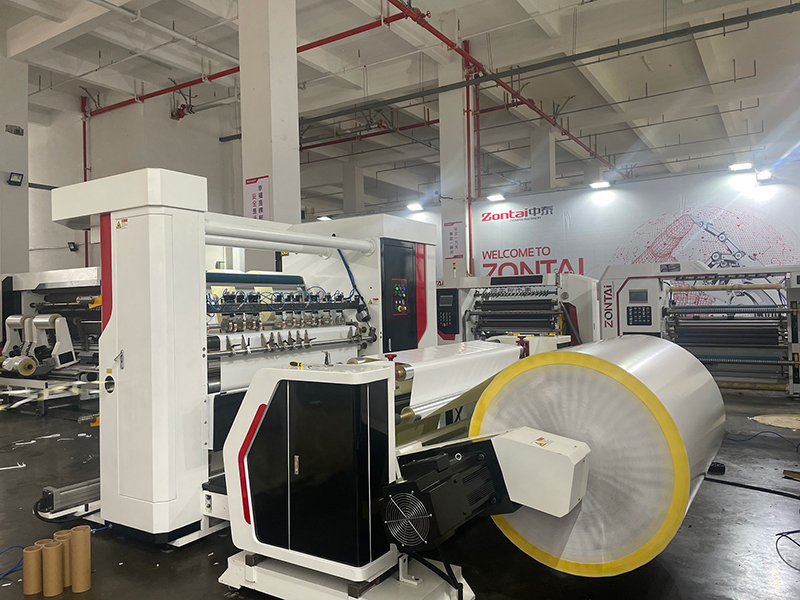

  • Separate unwind stand Separate unwind stand

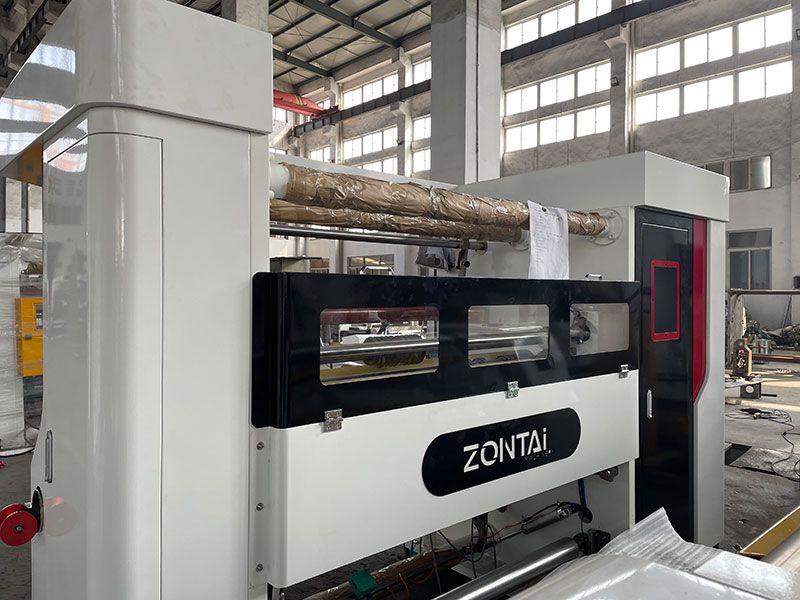

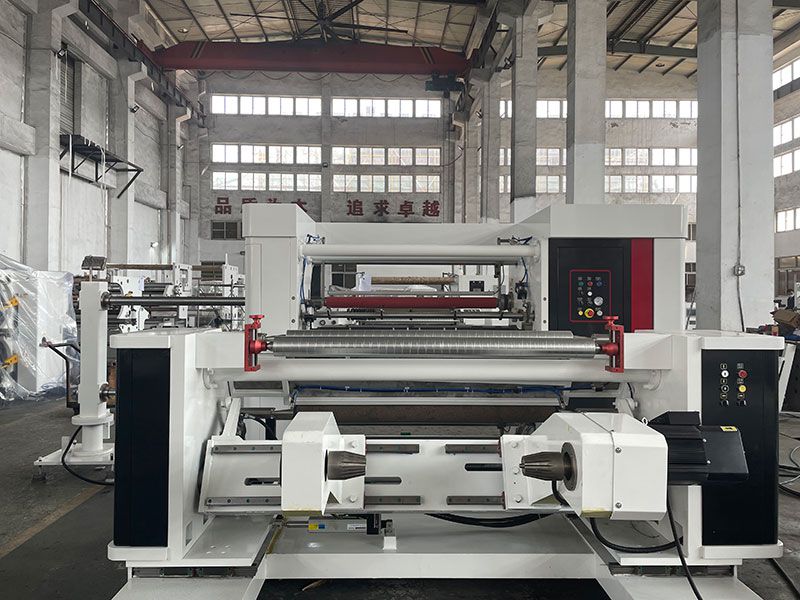

  • Shaftless unwind unit with automatic loader Shaftless unwind unit with automatic loader

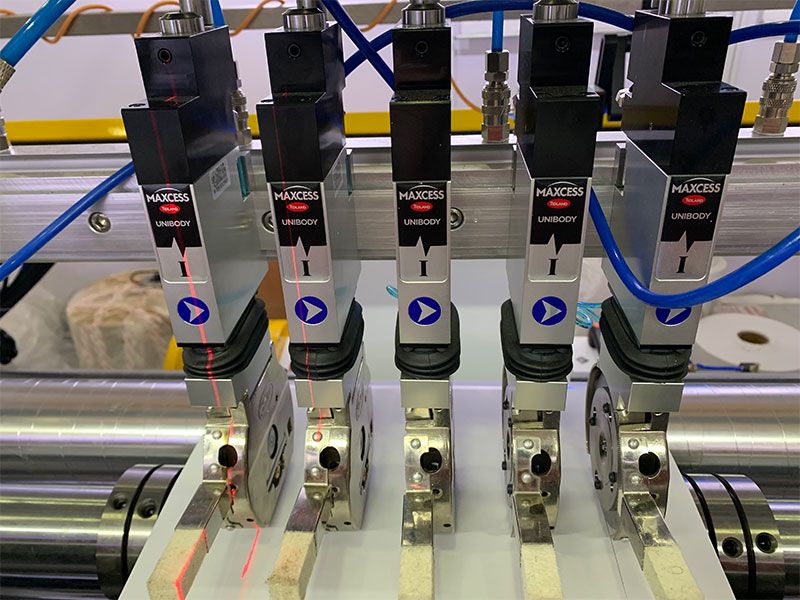

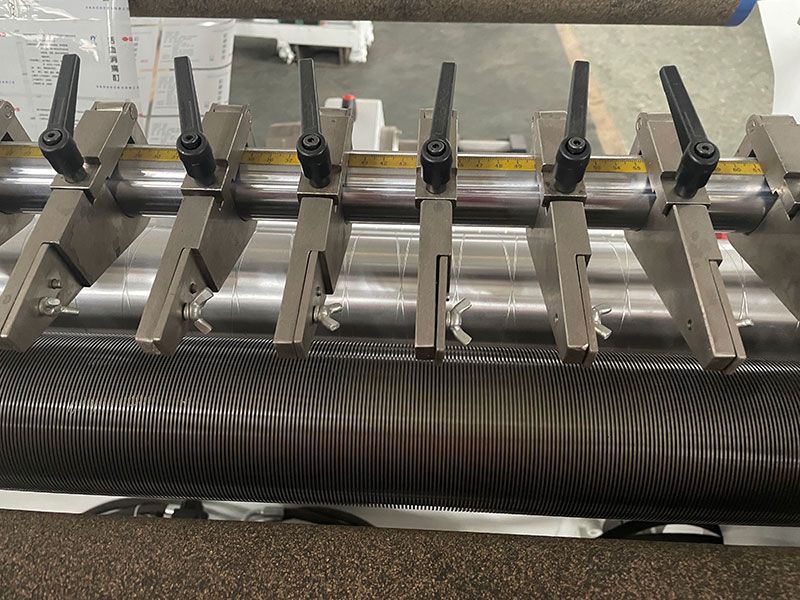

  • Razor blades for film slitting Razor blades for film slitting

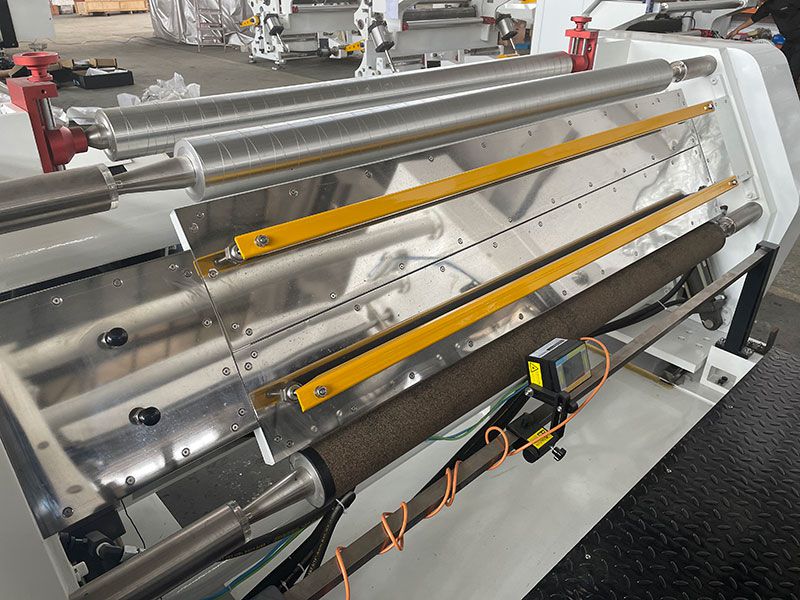

  • Splice table Splice table

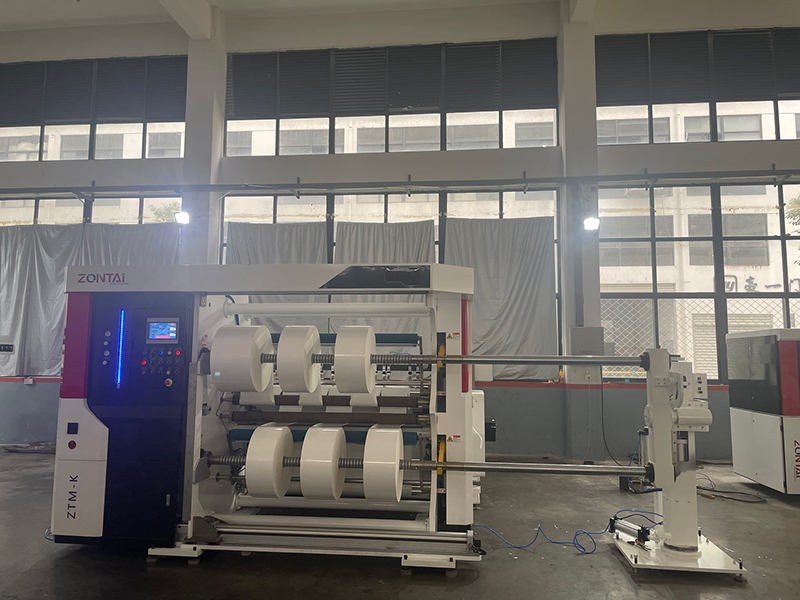

  • Touch screen control panel at front side, unloading rack at right side Touch screen control panel at front side, unloading rack at right side
  • Standard circular knife Standard circular knife

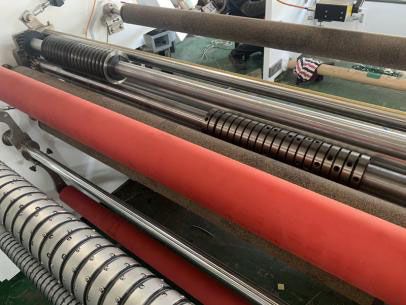

  • Film / paper rewinding using differential rewind shaft Film / paper rewinding using differential rewind shaft
  • Slitting zone with knife safeguard Slitting zone with knife safeguard

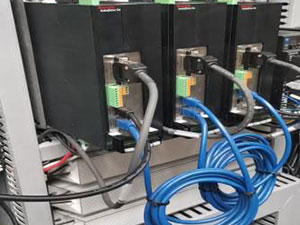

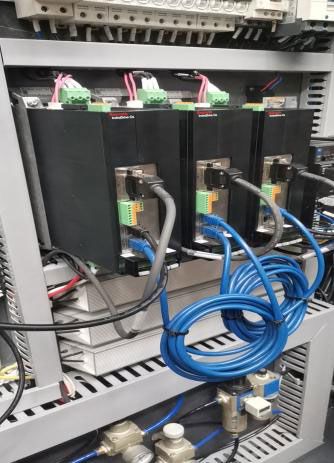

  • Rexroth servo drive Rexroth servo drive
  • Pneumatic circular blades (optional) Pneumatic circular blades (optional)
  • Automatic knife moving system (optional) Automatic knife moving system (optional)

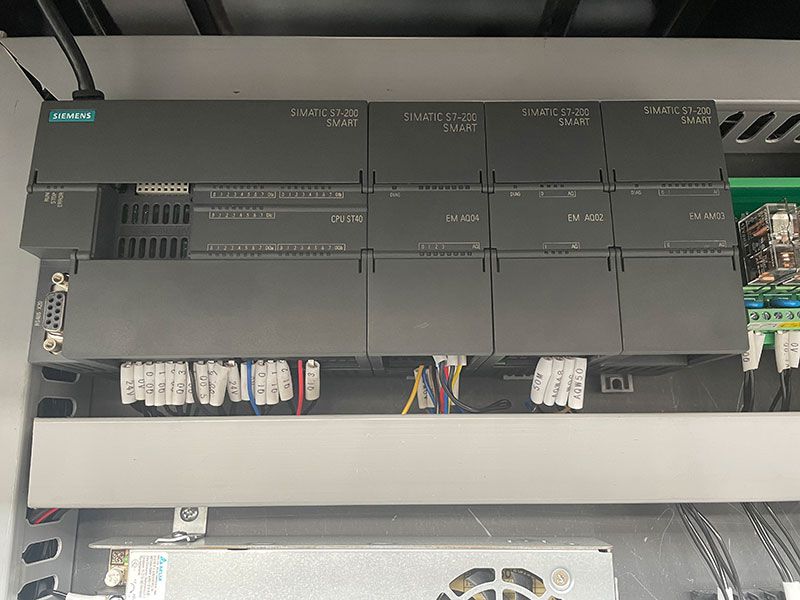

  • Siemens PLC Siemens PLC
Features
  • This slitter rewinder is versatile for converting a variety of film and paper rolls.

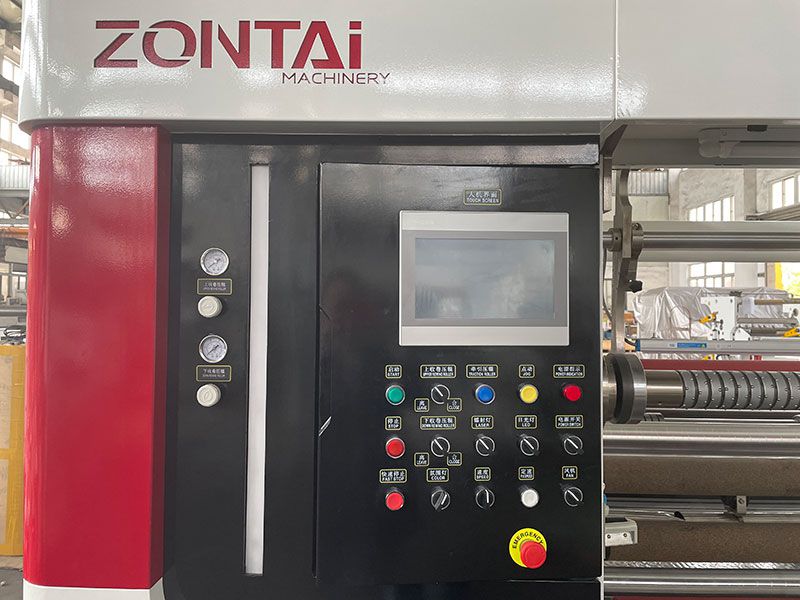

  • High performance microprocessor-based PLC control is coupled with a color touch screen that is movable, allowing operator to control the machine at either unwind station or rewind station.
  • High-end surface finish rolls leave no scratches when slitting and rewinding optical films or coated films.
  • Rewind station combines real-time diameter measuring technique. It has an ultrasonic sensor to accurately measure the roll diameter in merely 0.05 seconds, and the PLC control system automatically calculates the optimal tension to compensate the diameter change.
  • Portable trim waste rewinder enables gentle rewinding of trims while reducing the amount of dust to keep the working environment clean.
Configurations
  • Shaftless unwind unit for automatic loading of mother rolls, load bearing capacity of over 1500kg;
  • 3-inch pneumatic differential friction shaft on rewind station (6-inch shaft is optional);
  • Slitting station with max. speed of 500m/min;
  • Fully servo motor driven (one main servo motor, two servo motors for rewinding);
  • Configured with razor blades and circular knives (10 sets for each) for slitting film and paper;
  • Splice table is located between the unwind station and the slitting station for web splicing;
  • Rubber nip rolls;
  • Anti-scratch function;
  • Automatic roll diameter measuring system at rewind station;
  • Automatic finished roll pushing device;
  • Rotary unloading device;
Optional
  • 6-inch rewind shaft;
  • Laser core positioning system;
  • Automatic moving system for razor blades and circular knives
