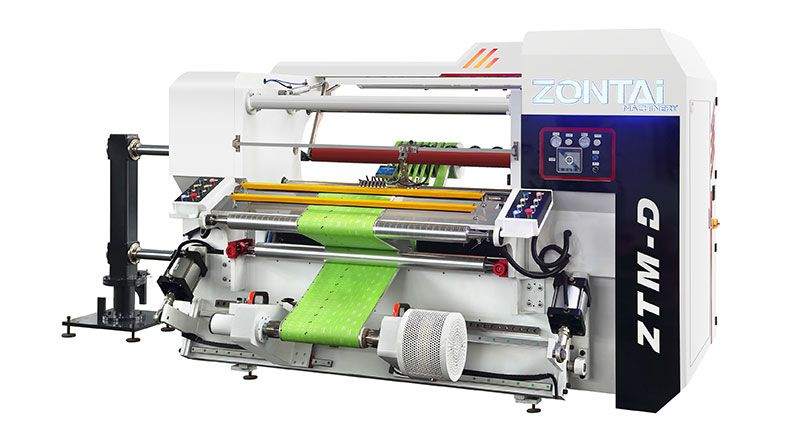

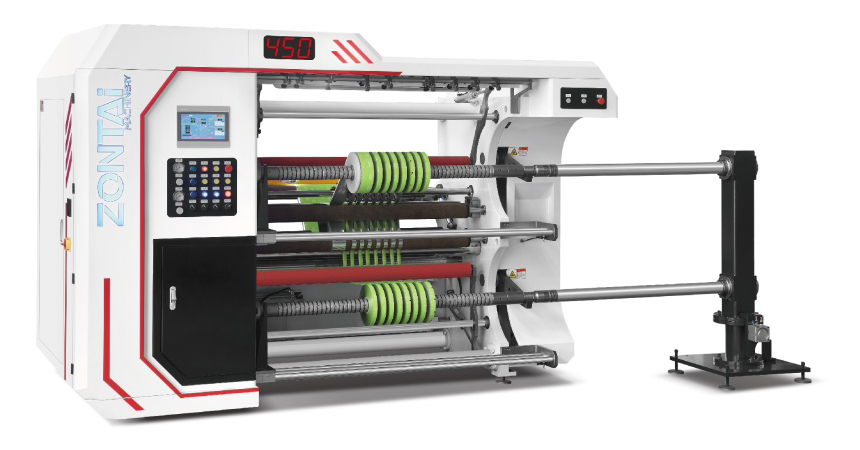

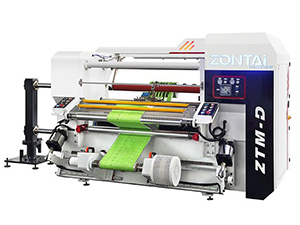

Economical Slitter Rewinder, ZTM-D

Suitable for converting paper, films, foils, labels and laminates

Economical Slitter Rewinder, ZTM-D
Video

Economical Slitter Rewinder, ZTM-D

Suitable for converting paper, films, foils, labels and laminates

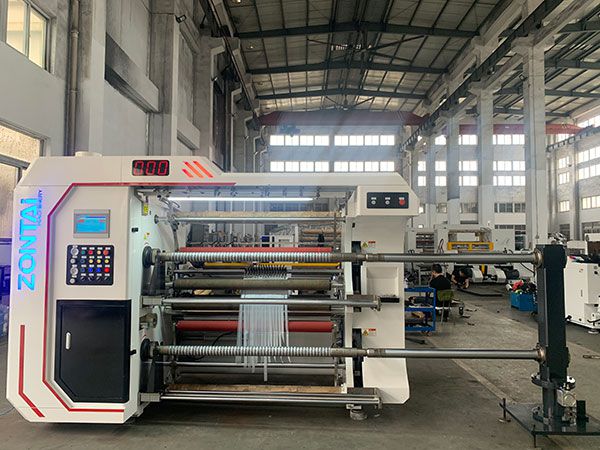

The ZTM-D slitter rewinder is an economical solution for converting a single parent roll into several smaller rolls. It is capable of slitting and rewinding of various materials such as PET, OPP, CPP, PE, PS, PVC, cellophane, anti-counterfeit labels, optical film, foil, laminates, paper and printed substrates.

Inquiry
Specifications
Model ZTM-D 1000 ZTM-D 1300
Max. web width 1000mm 1300mm
Max. unwind diameter Ø800mm Ø800mm
Max. rewind diameter Ø600mm Ø600mm
Paper core diameter 3″(6″) 3″ (6″)
Slitting speed 10-400 m/min 10-400 m/min
Tolerance of EPC ≤0.1mm ≤0.1mm
Min. slitting width 50mm (30mm) 50mm (30mm)
Total power 12kW 12kW
Machine weight 3800kg 4000kg
Overall dimensions 2200×4000×2100mm 2200×4300×2100mm
Details
  • Slitter rewinder with high speed of up to 400m/min Slitter rewinder with high speed of up to 400m/min

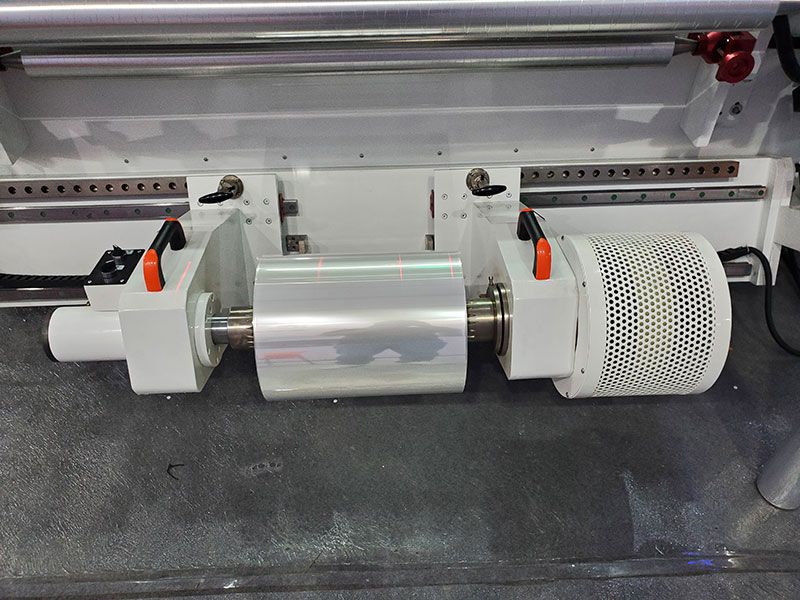

  • Shaftless unwind unit with hydraulic loader for automatic loading of mother rolls Shaftless unwind unit with hydraulic loader for automatic loading of mother rolls

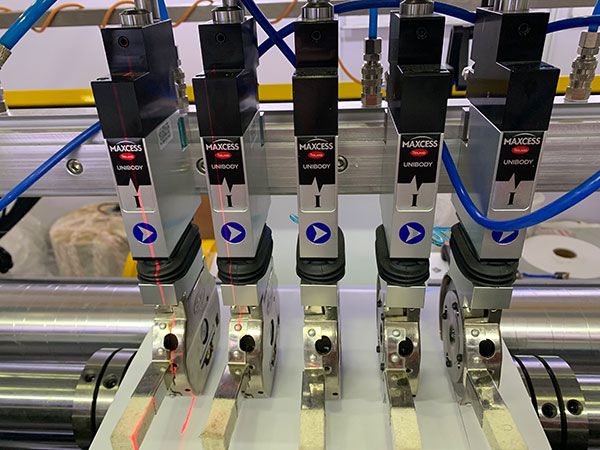

  • Pneumatic knife holder (optional) Pneumatic knife holder (optional)

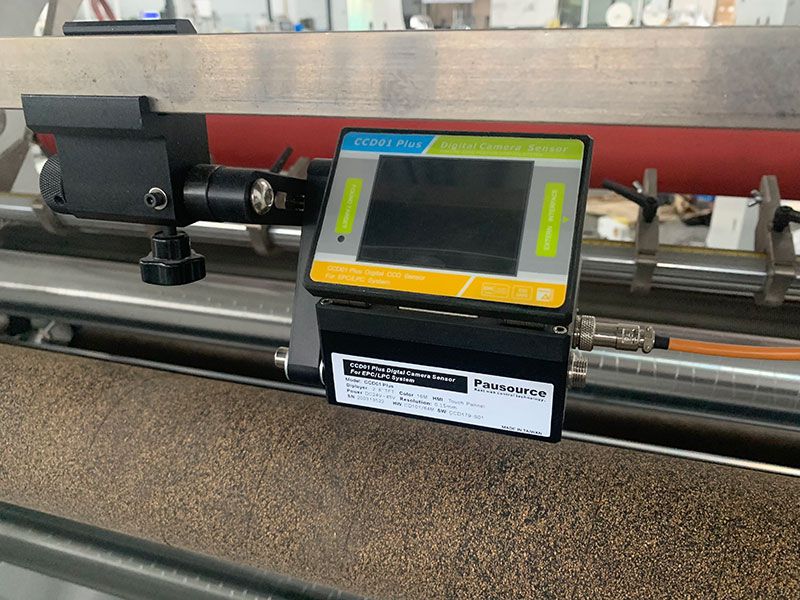

  • Taiwan Pausource LPC controller and sensor Taiwan Pausource LPC controller and sensor

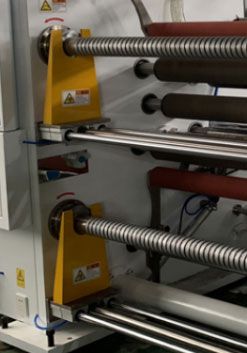

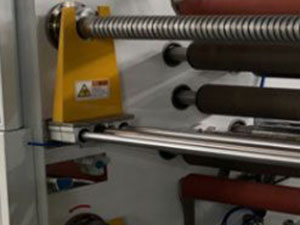

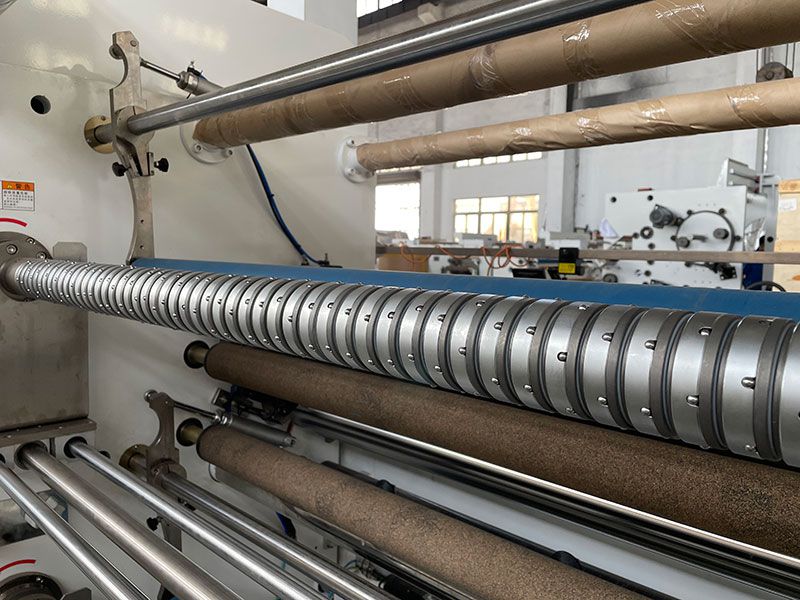

  • Pneumatic differential friction shaft (3 inches) Pneumatic differential friction shaft (3 inches)

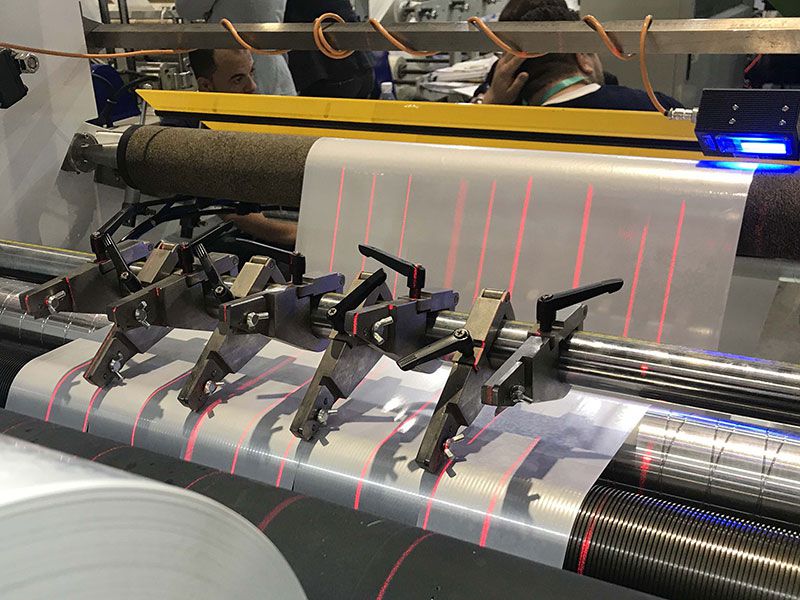

  • Razor blades for film slitting Razor blades for film slitting

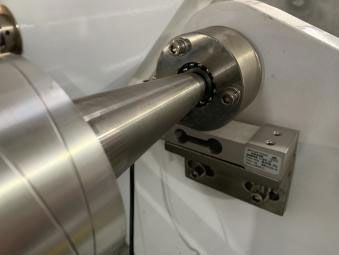

  • METTLER TOLEDO load cell METTLER TOLEDO load cell
  • Automatic finished roll pushing device (optional) Automatic finished roll pushing device (optional)
Features
  • Shaftless unwind unit is equipped with a hydraulic loader for automatic loading of mother rolls;
  • LPC is adopted for the detection of web edge and print marks;
  • Closed-looped unwind tension control is achieved using magnetic brake and load cell;
  • Slitting station is designed with 10 sets of razor blades;
  • 3-inch pneumatic differential friction shaft on rewind station;
  • Proportional valve for rewind tension control;
  • Air cylinder is adopted to control the pressure on the rubber covered nip roller at the rewind station;
  • Trim reject fan is utilized for effective processing of edge trim waste;
  • Static elimination system is installed at upper and lower rewind shafts;
  • Unload rack for unloading the finished rolls from rewinder;
  • Siemens PLC control with touch screen;
Optional
  • 6-inch friction rings for rewind shaft;
  • Automatic finished roll pushing device;
  • Edge trim winder;
