High Speed Shrink Sleeve Seaming Machine, ZHZ-300
High Speed Shrink Sleeve Seaming Machine, ZHZ-300
Video

High Speed Shrink Sleeve Seaming Machine, ZHZ-300

The ZHZ-300 high speed shrink sleeve seaming machine is a shrink label glue sealing machine that converts plastic sheets such as PVC and PET films into shrink sleeve labels for packaging bottles, cans and other products.

Inquiry
Specifications
Model ZHZ-300
Width of unwinding 600mm
Diameter of unwinding Ø500mm
Diameter of rewinding Ø700mm
Max. seaming speed 300m/min
Mechanical speed 330m/min
Total power 3.5kW
Machine voltage 220V/50Hz
Overall dimension 3400mm×1300mm×1600mm
Machine weight 1000kg
Details

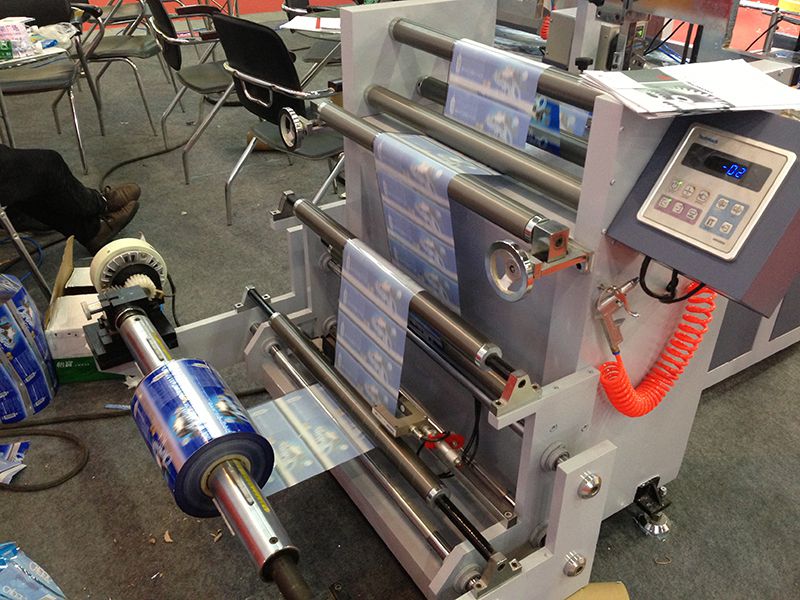

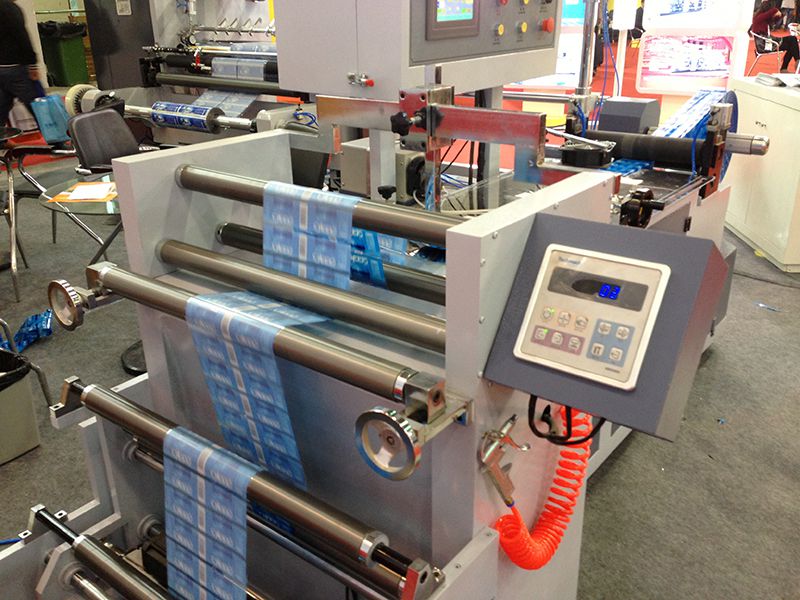

  • Unwinder with tension control Unwinder with tension control

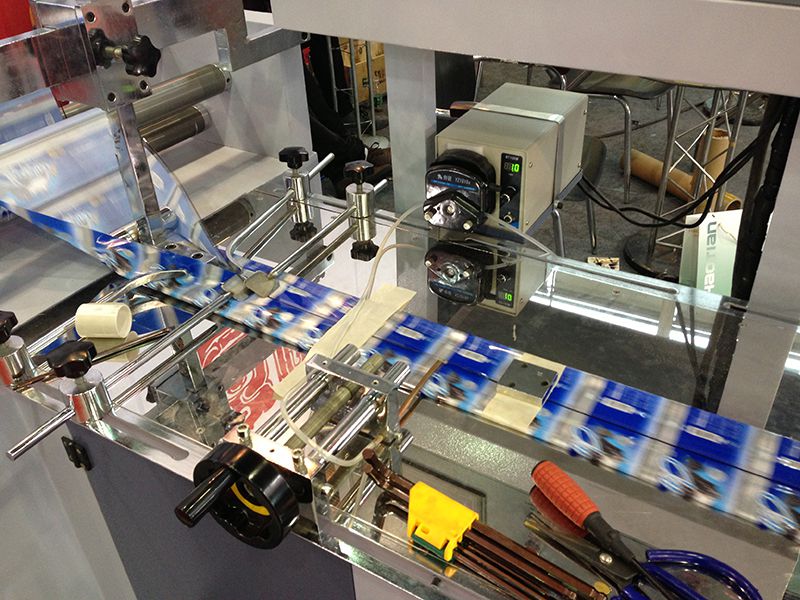

  • Gluing part with solenoid valve, needle valve and flow metering pump Gluing part with solenoid valve, needle valve and flow metering pump

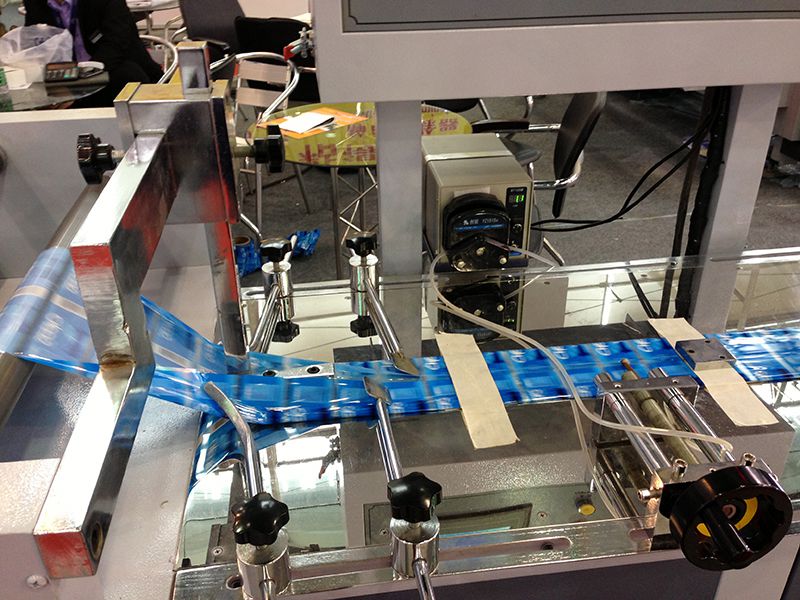

  • Mold folding and sealing unit Mold folding and sealing unit

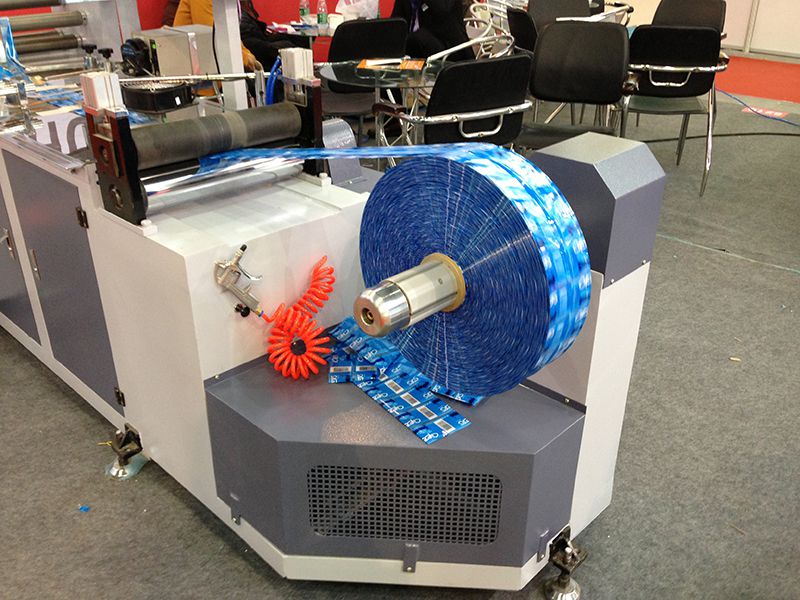

  • Rewinder with air shaft Rewinder with air shaft
  • EPC control EPC control

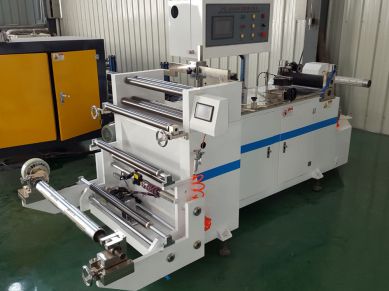

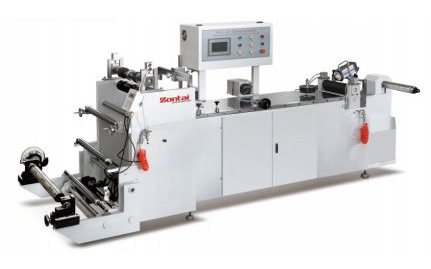

  • Entire machine view Entire machine view

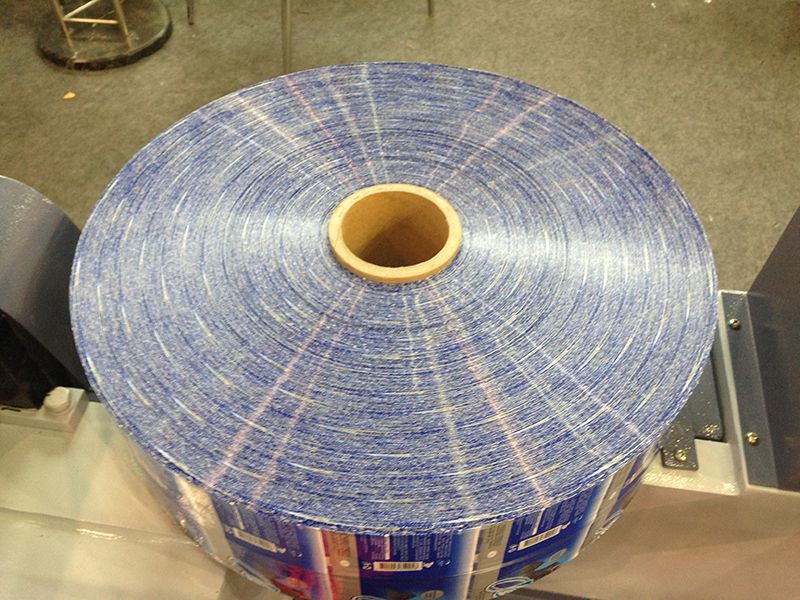

  • Finished product Finished product
Features
  • Equipped with variable frequency motor, vector converter for closed loop control, enabling very precise motor speed control while ensuring uniform gluing over the entire speed range;
  • Taiwan Weizheng 2.5kg magnetic powder brake is used for unwind tension control;
  • Automatic tension control, compensating acceleration and deceleration;
  • German Erhardt+Leimer EPC web guide system, with tolerance of +-0.1mm;
  • Flow metering pump automatically controls the glue flow;
  • 2 units of PLC control;
  • Heat sealing device is optional for PE film, or PE coated paper;
