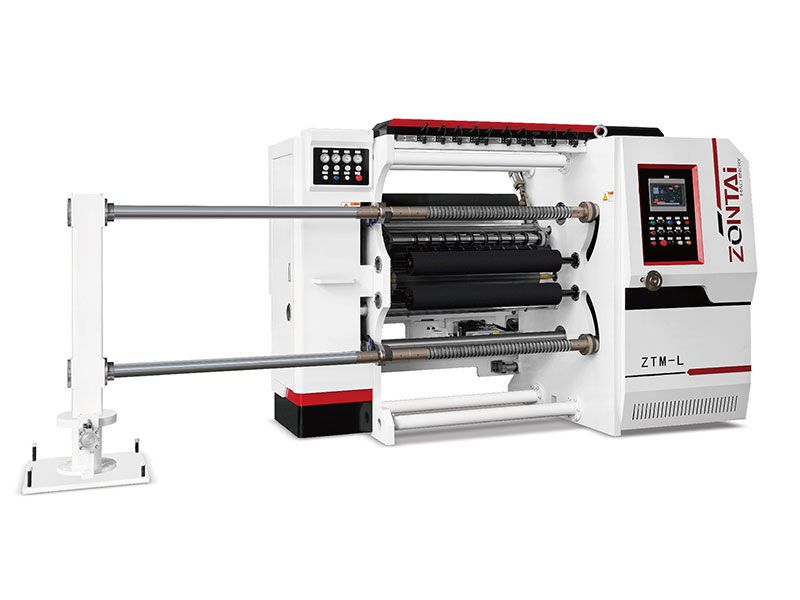

Narrow Web Slitter Rewinder, ZTM-L

Suitable for all kinds of paper, film and foils

Narrow Web Slitter Rewinder, ZTM-L
Video

Narrow Web Slitter Rewinder, ZTM-L

Suitable for all kinds of paper, film and foils

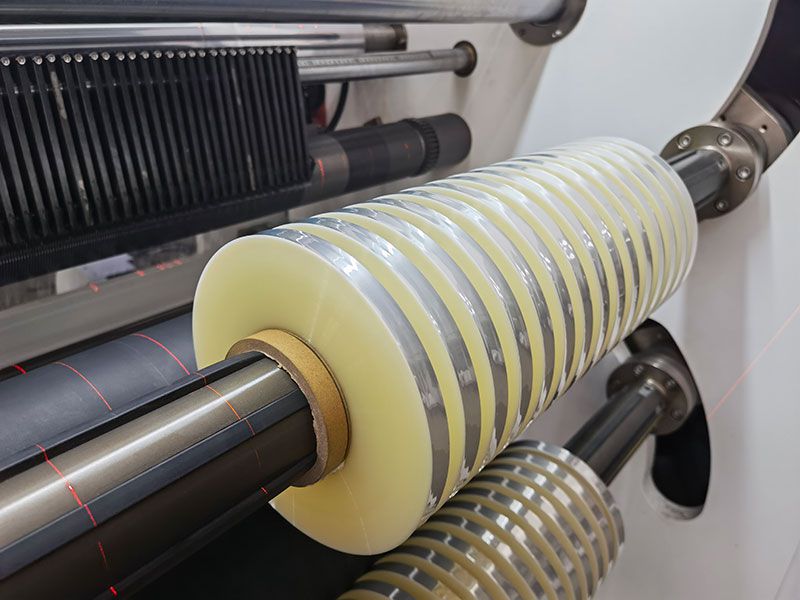

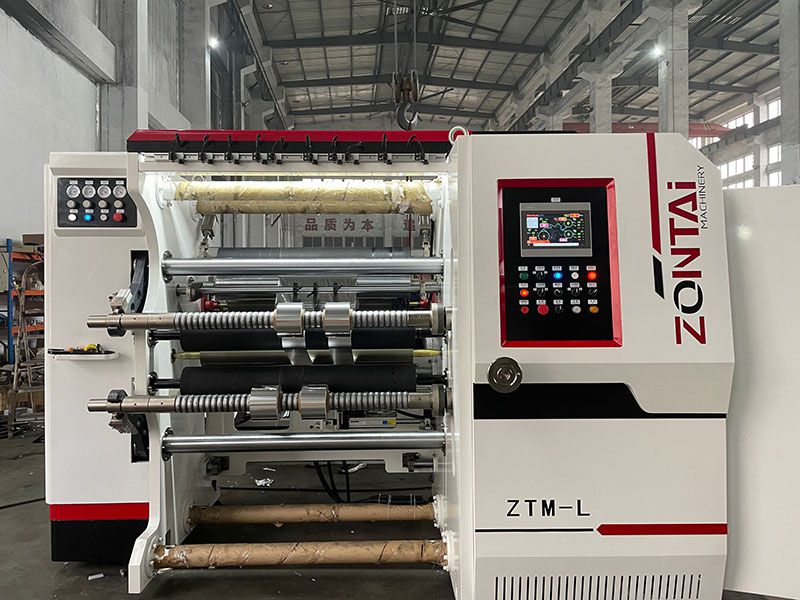

The ZTM-L slitter rewinder is designed and manufactured primarily for narrow web slitting at a slitting speed of up to 400 meters per minute. It is versatile for slitting any kind of paper and film rolls including PET, OPP, CPP, PE, PS, PVC and optical film with a thickness range of 12-200 microns, and also suitable for slitting pure aluminum foils of 6 to 20 microns in thickness.

Inquiry
Specifications
Model ZTM-L 1000 ZTM-L 1300
Web width 1000mm 1300mm
Max. unwind diameter Ø1000mm Ø1000mm
Max. rewind diameter Ø800mm Ø800mm
Paper core diameter 3″or 76mm (optional: 6″or 152mm) 3″or 76mm (optional: 6″or 152mm)
Slitting speed 10-400m/min 10-400m/min
Tolerance of EPC ≤0.1mm ≤0.1mm
Min. slitting width 50mm 50mm
Total power 25kW 28kW
Machine weight 4500kg 5000kg
Overall dimensions 2300mm×3800mm×1950mm 2300mm×4100mm×1950mm
Details
  • Two differential rewind shafts Two differential rewind shafts
  • Finished roll with min. width of 10mm Finished roll with min. width of 10mm
  • Suitable for aluminum foil slitting Suitable for aluminum foil slitting
  • Shaftless unwind unit for automatic loading Shaftless unwind unit for automatic loading
  • Two rewind motors for the independent control of 2 rewind shafts Two rewind motors for the independent control of 2 rewind shafts
  • 3 drives control system 3 drives control system
  • Razor blades for film slitting Razor blades for film slitting
  • Dancer arm movement is automatically controlled by motors and speed reducers Dancer arm movement is automatically controlled by motors and speed reducers
  • LPC control system LPC control system
Features
  • Shaftless unwind unit adopts Japanese SMC hydraulic cylinder to lift up the mother rolls, achieving automatic loading of web rolls.

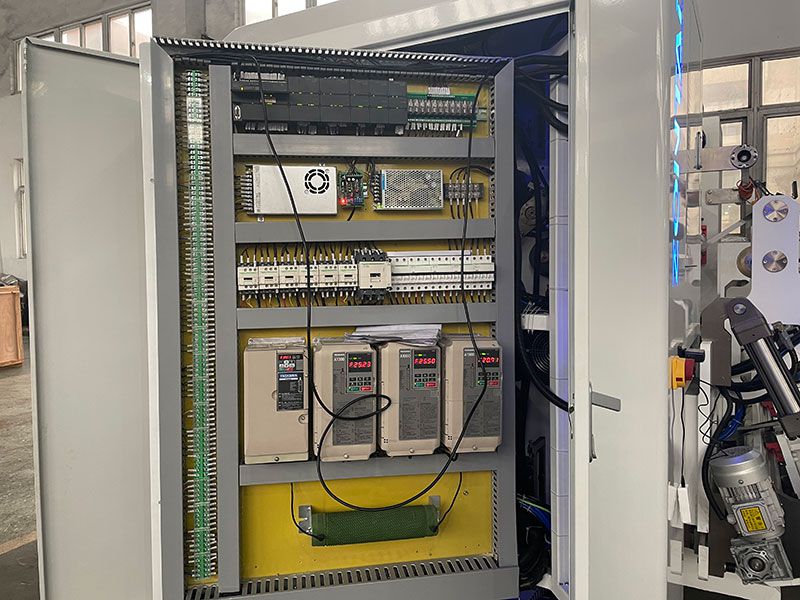

  • Unwind is driven by a servo motor, and the closed-looped unwind tension is controlled by PLC and load cell.

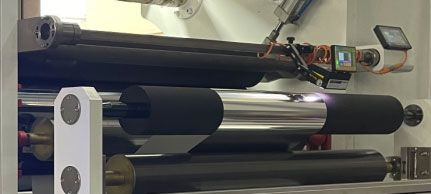

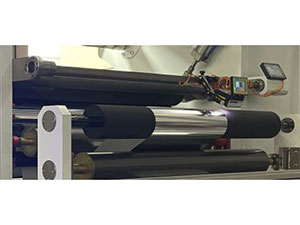

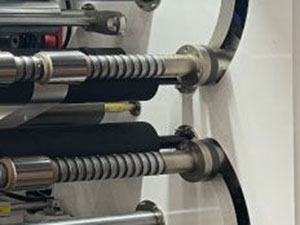

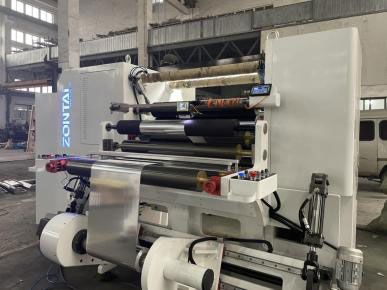

  • Rewind station adopts both pneumatic friction shafts and air shafts (3 inch).

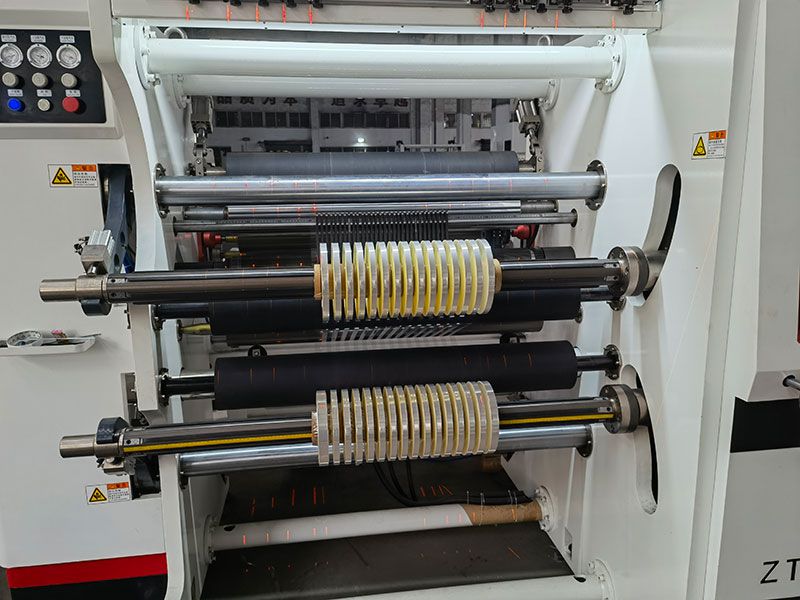

  • Slitting station is configured with razor blades and circular knives.
  • Two motors are used to control 2 rewind shafts.
  • LPC web guide system and PLC system are from world's renowned brands.

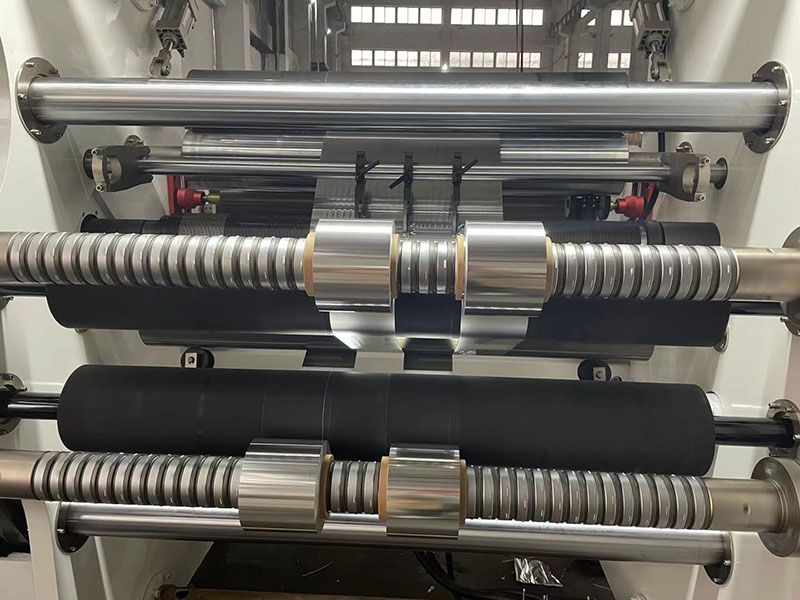

  • This slitter rewinder machine is typically suitable for converting pure aluminum foils of over 6 microns in thickness.
